1/4'' Dr 10-100 In Lbs / 113 - 1113 cNm CDI Digital Torque Tester - 1001-I-DTT
- SKU:1001-I-DTT
- Condition:New
- Drive Size:1/4 Inch
- Range In Lbs:10 - 100
- Range cNm:113 - 1113
- Accuracy:.5%
Shipped by date ordered. Order now for earliest delivery when this item is back in stock.
Product Description

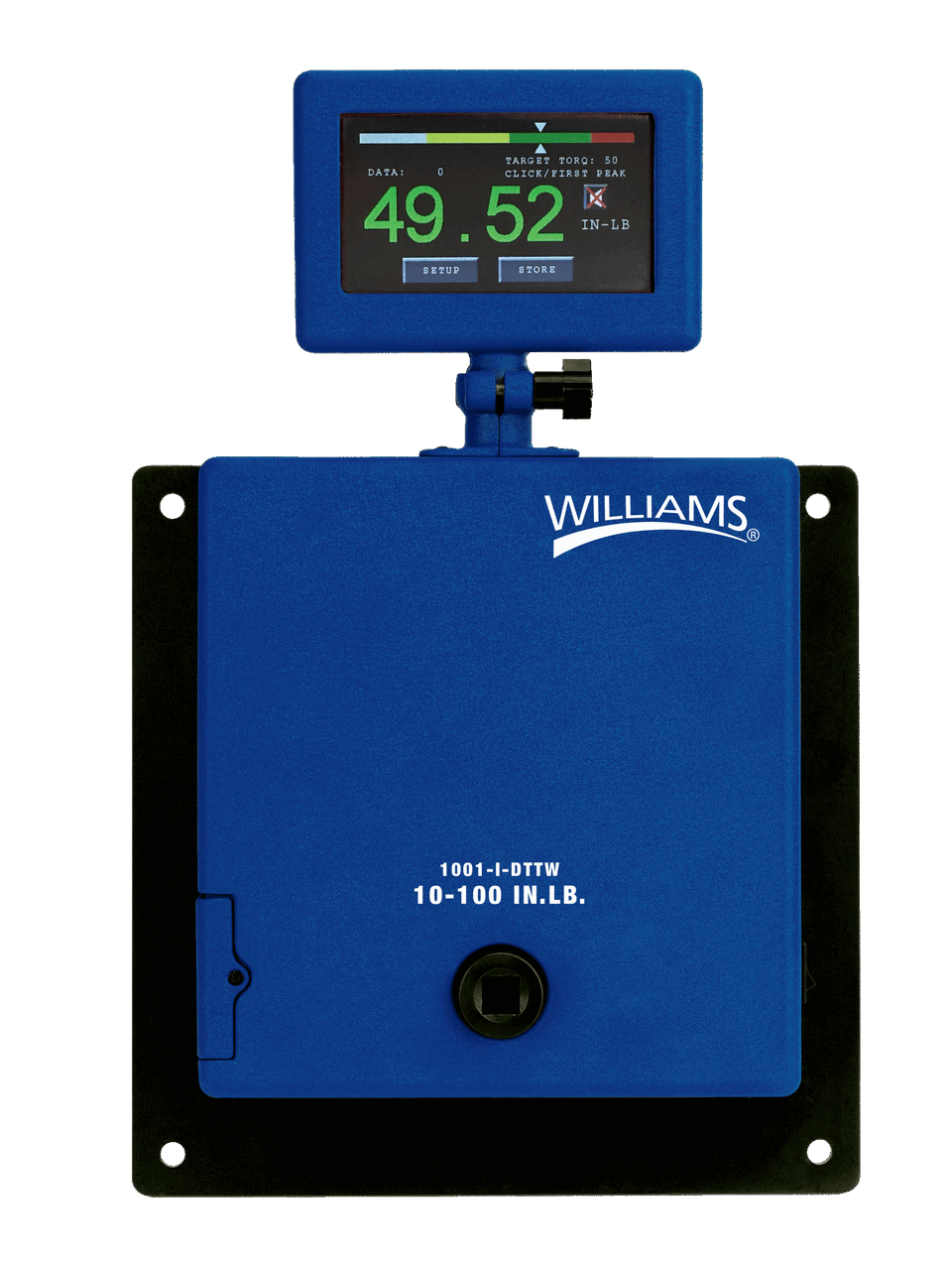

The Williams 1001-I-DTTW Digital Torque Tester has a 1/4 Inch Drive and can test in an English range of 10-100 In Lbs and Metric ranges between 113 - 1113 cNm. The DTT Utilizing the testing protocol and standards developed by the American Society of Mechanical Engineers (ASME)

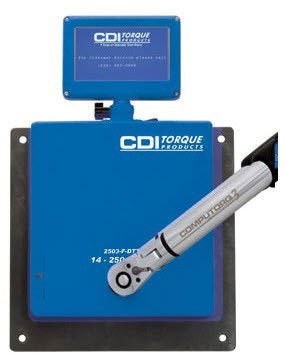

The Digital Torque Tester (DTT) is designed to be an affordable torque tester that can be mounted on a wall or used in a bench-top vise to allow the operator to conveniently test torque wrenches and torque screwdrivers. It features an easy to use touch pad screen to capture peak torque values during a test in real time, and download stored torque data to a PC. All DTT torque testers are sold in a kit with the tester, carrying case and AC/DC power supply.
Features:
- Test the health of your torque wrenches and screwdrivers anywhere
- For manufacturing/assembly, process control and data collection
- Can be mounted on a wall or in a bench-top vise
- Features an easy-to-use touchscreen to capture peak torque values during a test in real time
- Sold as a kit with the tester, carrying case and AC/DC power supply
- Ability to customize between units of measure (ft-lb, in-lb, in-oz, Nm, kg-cm), operating mode (Track, Peak, First Peak) and wrench type

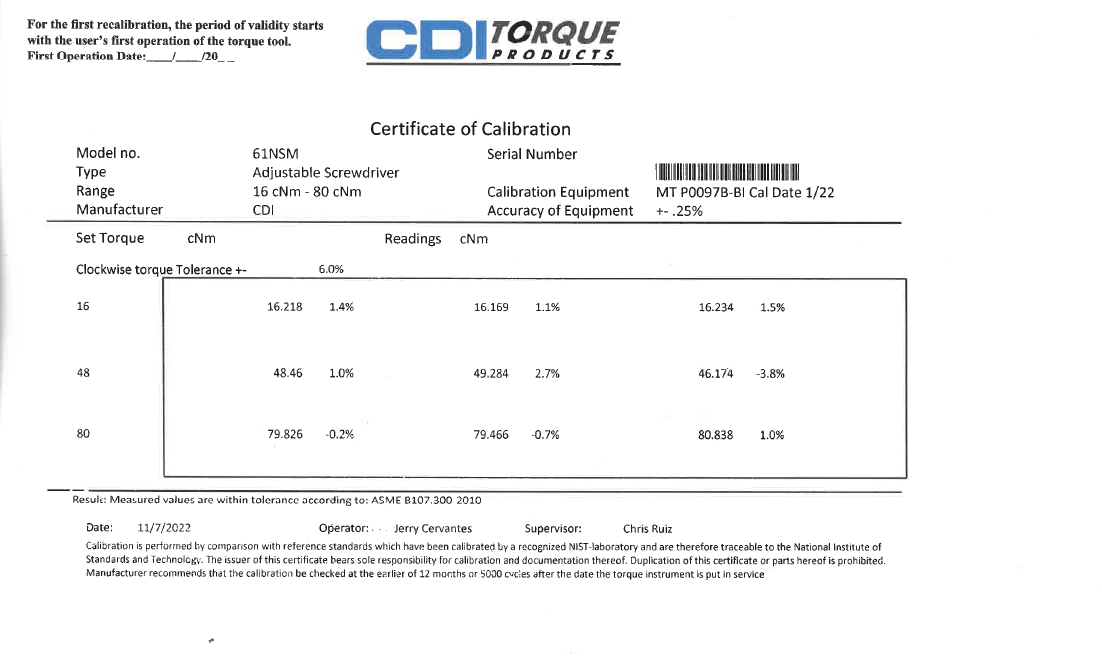

- Includes Certificate of Calibration
- Highly accurate scale (±0.5% ±1 count 10-100% CW and CCW of indicated test value @ 25 °C)
- ±0.5 of indicated test value from 10-100% or rated capacity
- Units of Measure: ft-lb, in-lb, in-oz, Nm, kg-cm
- Operating Modes: Peak, First Peak, Track
- Operating Temperature: 50 to 90 °F (10 to 32 °C)
- Storage Temperature: -2 to 122 °F (-20 to 50 °C)
- Humidity: 85% Relative Humidity @70 °F (21 °C)
- Power Supply: Included 9 V AC/DC adaptor, 6 AA batteries included
- Memory Capacity: 500 records (complete check mode only)
- Dimensions: 16" x 10" x 2.5"
- Weight (tester only): 10.7 lbs
