3/8" Dr 100-1000 In lbs / 11.3-113 Nm Williams Digital Torque Tester - 10002-I-DTTW
3/8" Dr 100-1000 In lbs / 11.3-113 Nm Williams Digital Torque Tester - 10002-I-DTTW
3/8" Dr 100-1000 In lbs / 11.3-113 Nm Williams Digital Torque Tester - 10002-I-DTTW

3/8" Dr 100-1000 In lbs / 11.3-113 Nm Williams Digital Torque Tester - 10002-I-DTTW

Now:$2,036.88
MSRP:$4,600.00
(You save $2,563.12 )
  • SKU:10002-I-DTTW
  • Condition:New
  • Drive Size:3/8 Inch
  • Range In Lbs:100 - 1000
  • Range Nm:11.3 - 113
  • Accuracy:0.5%

Shipped by date ordered. Order now for earliest delivery when this item is back in stock.

Product Description


The Williams 10002-I-DTTW Digital Torque Tester has a 3/8 Inch Drive and can test ranges an English range of 100-1000 In lbs and Metric ranges between 11.3 - 113 Nm and 115 - 1152 cmkg.  The DTT Utilizing the testing protocol and standards developed by the American Society of Mechanical Engineers (ASME)

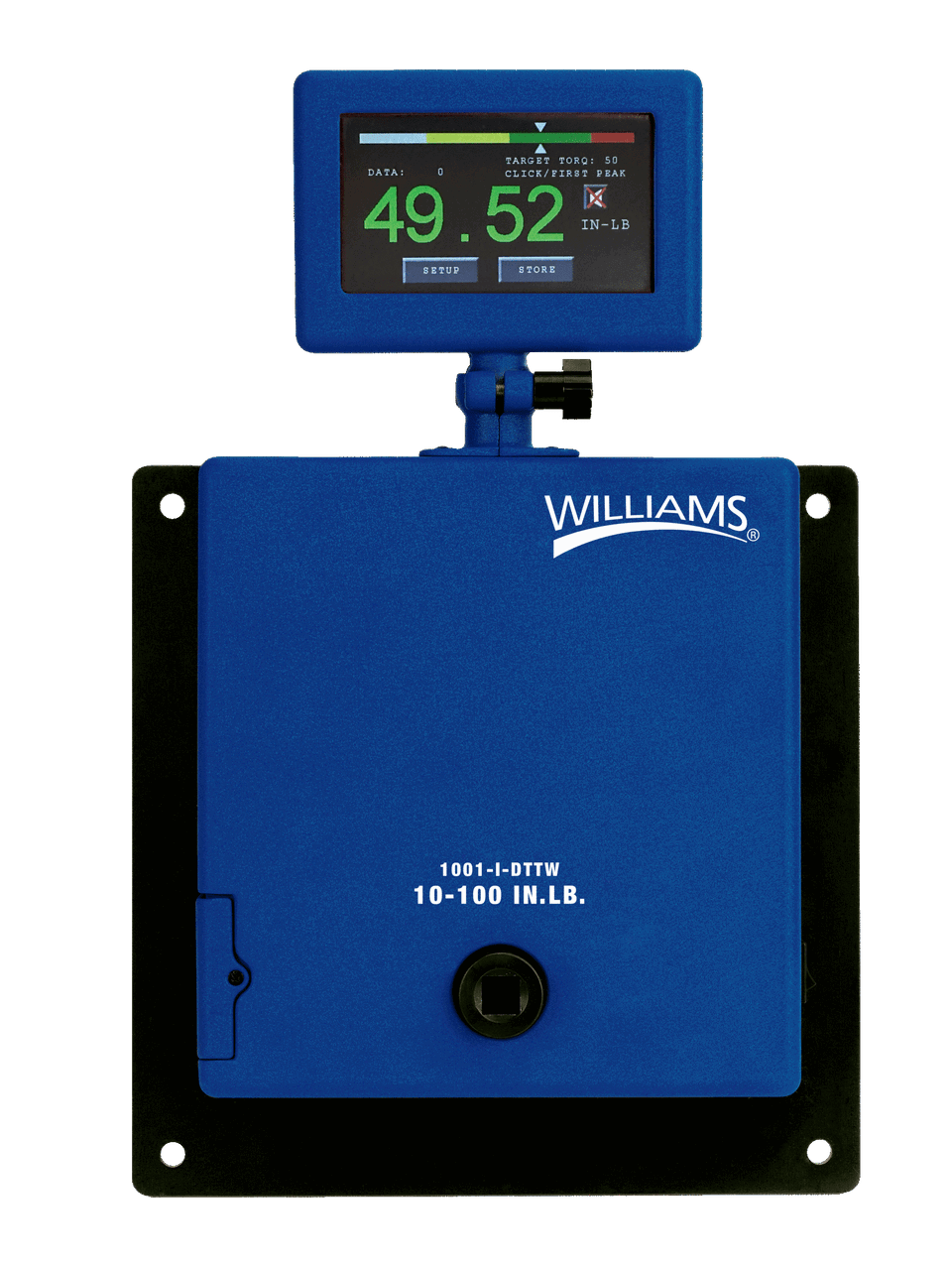

The Digital Torque Tester (DTT) is designed to be an affordable torque tester that can be mounted on a wall or used in a bench-top vise to allow the operator to conveniently test torque wrenches and torque screwdrivers. This checkline torque tester features an easy to use touch pad screen to capture peak torque values during a test in real time, and download stored torque data to a PC. All DTT torque testers are sold in a kit with the tester, carrying case and AC/DC power supply.


 Features:

  • Integral Transducer and sturdy housing allow mounting in virtually any position
  • Integral Transducer: Full bridge strain gauge, 350 ohm,
    1500uE, 3mV/V F.S, 3.75 excitation.
  • Units of Torque: Nm, kgcm, ft.lb., in.lb., kgm
  • Audible (tone)
  • Torque Accuracy: ±0.5% CW and CCW from 5.6 to 100% of full scale at 25° C
  • LCD Touch Screen: 4.7 in. color graphics display
  • Screen resolution: 480 X 272 pixels
  • 110 Volt AC/DC power supply included
  • Display Accuracy: 4 digits, 9999 cycle counts
  • Memory Capacity – 500 Records (Complete Check Mode Only.)
  • Data can be offloaded by USB drive or cable
  • Six "AA" Alkaline cells for battery power included
  • Track, Peak and First Peak modes of operation
  • Operating Temperature: 40 to 110° F (5 to 42° C)
  • Storage Temperature: 0 to 122° F (-20 to 50° C)
  • Humidity up to 85% non-condensing
  • ISO-6789-2003 and ASME B107-28-2005 standards compliant
  • Certificate of N.I.S.T. traceability from 5.6 to 100% of full scale
  • Includes storage case, AC adapter and USB cable
  • Dimensions: W - 10” x H - 16” x D - 2.5” Weight: (Tester Only) - 10.7 lbs., (with Carrying Case) - 17.4 lbs.


Optional CDI Table Mounting Bracket For Digital Torque Testers - 2344-0050-03
