- SKU:JHWDTCMM100-I
- UPC:662459188229
- Condition:New
- Range In Lbs:5 - 100
- Accuracy:1%
- Drive Size:1/4 Inch
Product Description
VALIDATE CALIBRATION OF CRITICAL TORQUE INSTRUMENTS RIGHT WHERE WORK IS BEING COMPLETED WITH THE 5-100 In Lbs WILLIAMS’ JHWDTCMM100-I DIGITAL TORQUE CHECKER. MANUFACTURING/ASSEMBLY PROCESS CONTROL AND DATA COLLECTION.
Features
- Provides accurate torque reading to validate torque instrument calibration.
- Two Modes of Operation: Track and Click

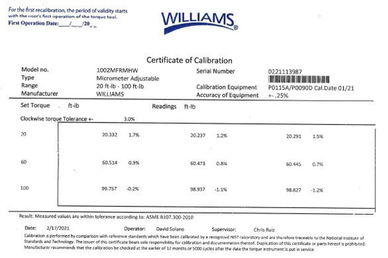

- Includes N.I.S.T. Calibration Certificate
- Powered by Micro USB 2.0
- 1-button panel user interface
- Compact form factor for convenient mounting locations

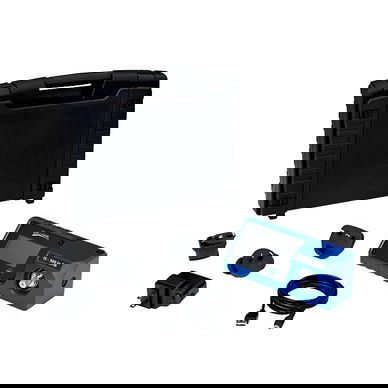

- Included Adapters: 1/4" Female Square
Specifications
- Weight (lbs): 3.09
- Torque Range (in-lbs): 5.0-100.0
- Maximum Torque (in-lbs): 120
- Input: 1/4 Male Hex
- Accuracy: +/-1%
- Display: LCD Display
- Operating Temperature Range: 32øF to 120øF
- Storage Temperature Range: -4øF to 155øF
- Power Consumption: 0.5W
- Environmental Protection: IP 40
Made In The UK
