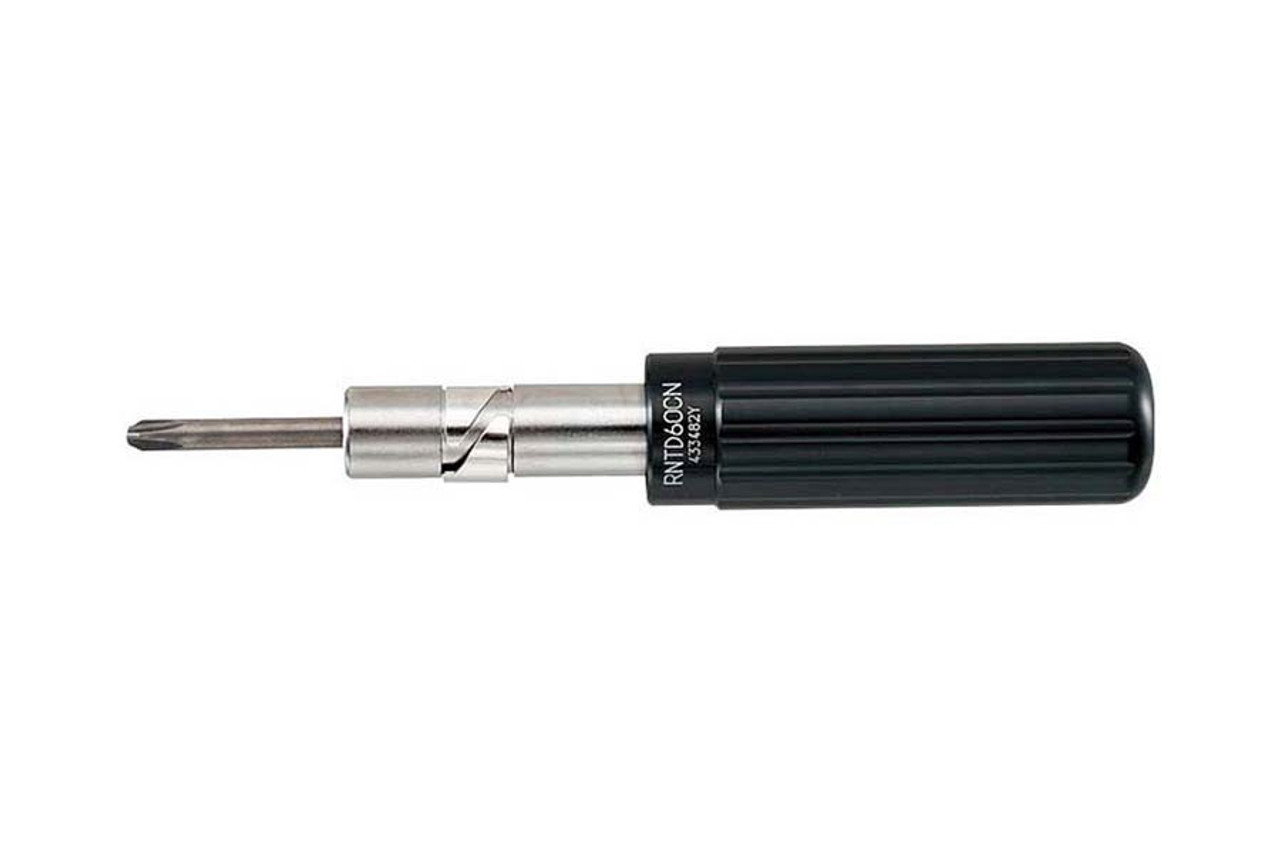

1/4" Dr 1 - 2.5 In Lbs Tohnichi Preset Type Torque Screwdriver - RNTD30CN

1/4" Dr 16 - 40 In Oz Tohnichi Preset Type Torque Screwdriver - RNTD30CN

$167.70
Model #
RNTD30CN & NIST CERT
Condition:
New
Drive Size:
1/4" Female Hex
Can be preset between:
16 - 40 In Oz or 10 - 30 cNm
Accuracy:
± 3%
Scale:
In Oz to 40
Scale:
cNm to 30

Description


The RNTD30CN Tohnichi Preset Type Torque Drive accepts universal 1/4 Inch drive bits and can be preset in an English range of 1 - 2.5 In Lbs / 16 - 32 In Oz or metric range of 10 - 30 cNm.

Features

  • Preset torque screwdriver with rotary-slip mechanism to prevent over-tightening.
  • Accuracy ± 3%
  • Preset style is ideal for applications which require the same torque setting such as assembly work.
    • No external scale adjustment means torque set cannot be inadvertently changed making for more secure torque setting.
  • Supplied with no torque set. Requires adjusting key and tester to set torque value.
  • Preset torque service can be requested at time of order for a nominal fee.
  • Enhanced reliability and durability by adopting toggle clutch torque mechanism.
  • User will sense "click" at set torque. If user continues past the click, the tool will ratchet without applying additional torque.
  • Accepts standard 1/4 hex root bits. (sold separately)

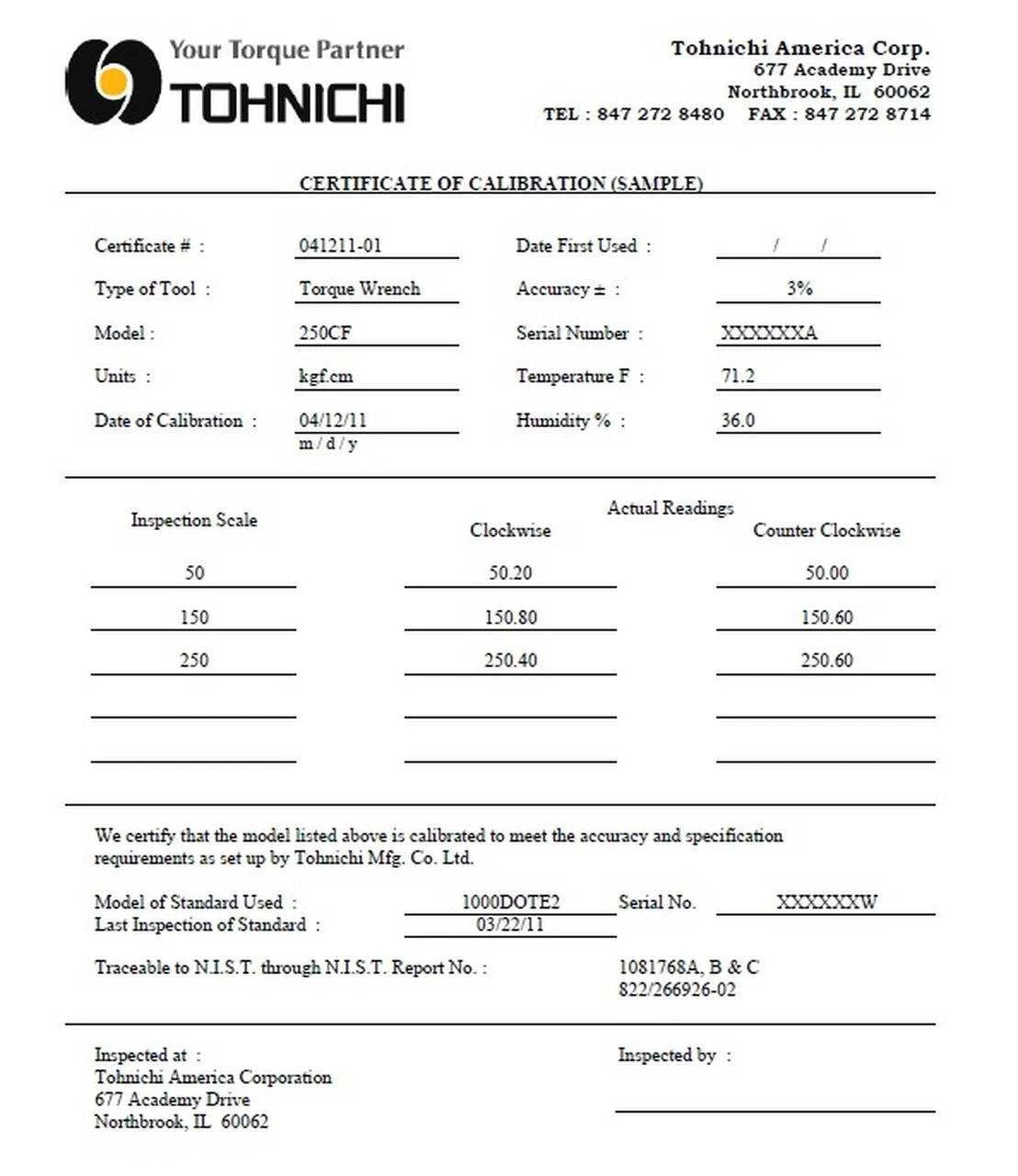

  • Certificate of calibration traceable to NIST included.

Specifications

Accuracy ± 3%
MODEL RNTD30CN
TORQUE RANGE
[cN • m]
MIN.~MAX. 10~30
TORQUERANGE
[kgf • cm]
MIN.~MAX. 1~3
TORQUE RANGE
[lbf • in]
MIN.~MAX. 1~2.5
APPLICABLE SCREW SMALL SCREW M2(M2.2)
TAPPING SCREW (M1.8)M2
DIMENSION
[mm]
OVERALL LENGTH L' 95
GRIP D1 19.5
BODY COLOR Black
BODY D4 11
L1 24
L2 59
WEIGHT [kg] 0.07

product dimensions

Made in Japan

Warranty Information

All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.
