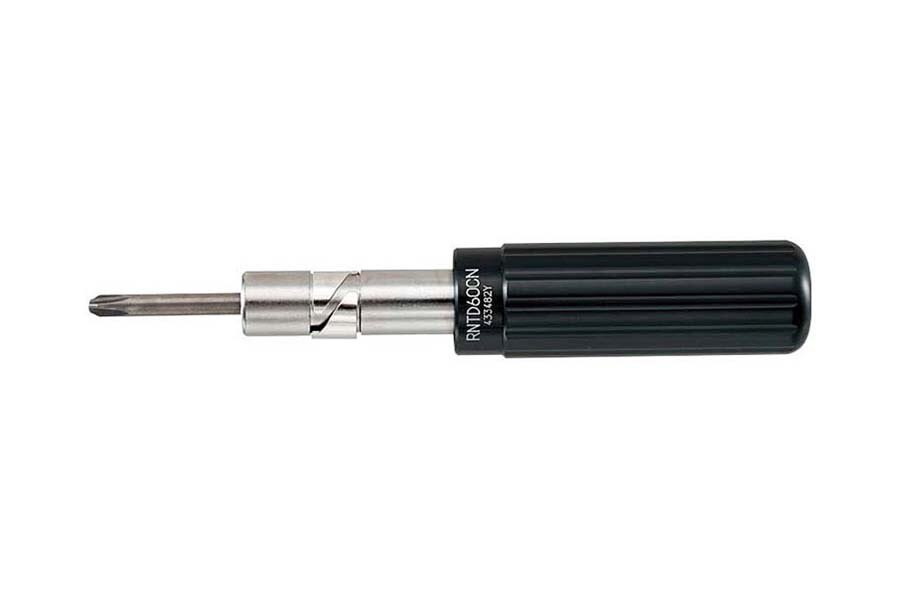

1/4" Dr 10 - 22 In Lbs Tohnichi Preset Type Torque Screwdriver - RNTD260CN

1/4" Dr 10 - 22 In Lbs Tohnichi Preset Torque Screwdriver - RNTD260CN

$179.89 $222.00
(You save $42.11)
Model #
RNTD260CN & NIST CERT
Condition:
New
Drive Size:
1/4" Female Hex
Can be preset between:
10 - 22 In Lbs or 1.2 - 2.6 Nm
Accuracy:
± 3%
Scale:
In Lbs to 35
Scale:
Nm to 3.95

Description


The RNTD260CN Tohnichi Preset Type Torque Drive accepts universal 1/4 Inch drive bits and can be preset in an English range of 10 - 22 In Lbs or 1.1 - 2.6 Nm.

Features

  • Preset torque screwdriver with rotary-slip mechanism to prevent over-tightening.
  • Accuracy ± 3%
  • Preset style is ideal for applications which require the same torque setting such as assembly work.
    • No external scale adjustment means torque set cannot be inadvertently changed making for more secure torque setting.
  • Supplied with no torque set. Requires adjusting key and tester to set torque value.
  • Preset torque service can be requested at time of order for a nominal fee.
  • Enhanced reliability and durability by adopting toggle clutch torque mechanism.
  • User will sense "click" at set torque. If user continues past the click, the tool will ratchet without applying additional torque.
  • RNTD260CN comes with resin handle
  • Accepts standard 1/4 hex root bits. (sold separately)

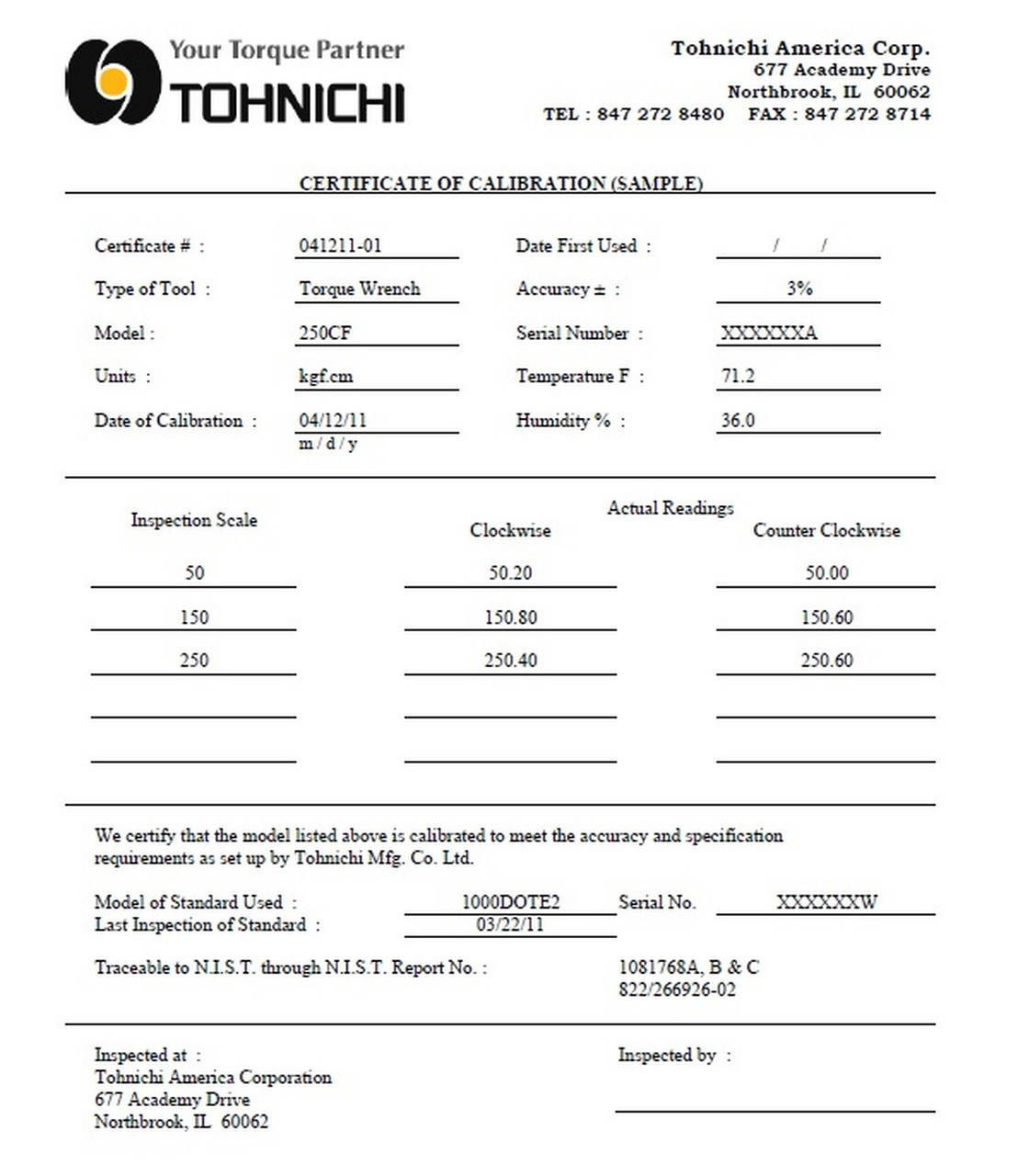

  • Certificate of calibration traceable to NIST included.

Specifications

Accuracy ± 3%
MODEL RNTD260CN
TORQUE RANGE
[cN • m]
MIN.~MAX. 100~260
TORQUERANGE
[kgf • cm]
MIN.~MAX. 10~26
TORQUE RANGE
[lbf • in]
MIN.~MAX. 10~22
APPLICABLE SCREW SMALL SCREW M4(M4.5)
TAPPING SCREW M4
DIMENSION
[mm]
OVERALL LENGTH L' 110
GRIP D1 30.5
BODY COLOR Black
BODY D4 11
L1 24
L2 79
WEIGHT [kg] 0.18

product dimensions

Made in Japan

Warranty Information

All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.
