1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014
1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014
1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014
1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014

1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014

Now:$1,941.72
MSRP:$2,133.76
(You save $192.04 )
  • SKU:16014
  • UPC:5060207567657
  • Condition:New
  • Drive Size:1 Inch
Product Description

Norbar

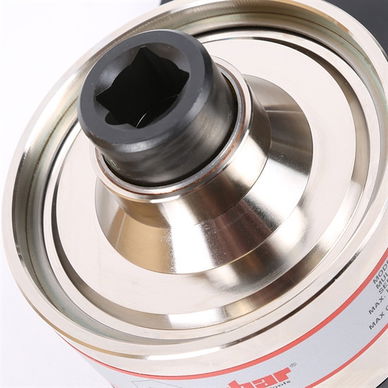

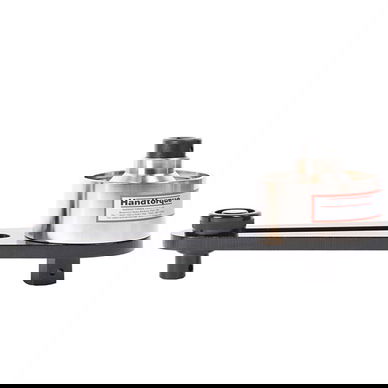

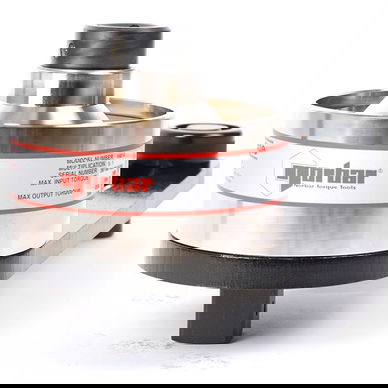

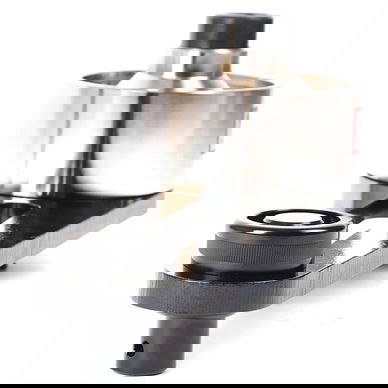

1" Dr 250 - 2500 Ft Lbs / 340 - 3400 Nm Norbar HT5/5 Hand Torque Standard Series - 16014

Norbar 'HandTorque' multipliers employ multiple stages of epicycle gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 5.4:1 to give a torque multiplication of 5.2:1 ±4%.

Features

  • A variety of reaction styles are available for maximum versatility.
  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Tool Weight: 4.7 Kg
  • Multiplication Ratio: 5.2:1
  • Output Square: 1"
  • Input Square: 3/4"
  • Velocity Ratio: 5.454:1
  • Max Input Speed: 21 revs/min
  • Plate Weight: 2.5 Kg
  • Plate Torque: 19 N.m
  • Tool Weight (kg): 8.50
  • Packed Weight* (kg): 9.00
  • Packed Width* (W) (mm): 620.00
  • Packed Height* (H) (mm): 520.00
  • Packed Depth* (D) (mm): 280.00
  • Accuracy: ±4%
  • Operates between: 250.00 - 2500.00 lbf·ft, 340.00 - 3400.00 N·m, 34.00 - 340.00 kgf·m

Make in the UK
