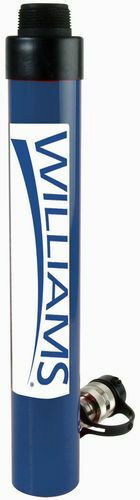

10" Williams 10T Treaded Hole Single Acting Cylinder - 6CT10T10

The 6CT10T10 10" Williams 10T Treaded Hole Single Acting Cylinder - 6CT10T10 comes with the Williams Industrial Brands Limited lifetime warranty.

10T 10" Treaded Hole S/A Cylinder

Features

• High quality threaded single acting cylinders
• Removable threaded plunger adapter allows for the use of a variety of threaded attachments
• Used to attach accessories to rod end and base
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin: Taiwan
• Cylinder Capacity (tons) : 10
• Stroke (in) : 5.96
• Cylinder Effective Area (in2) : 2.44
• Pressure at capacity (psi) : 8,930
• Oil Capacity (in3) : 22.31

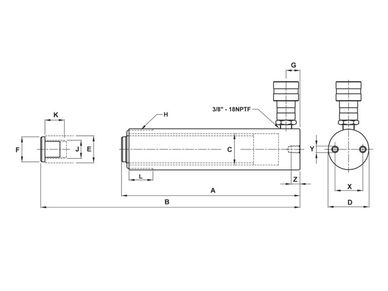

• Collapsed Height A (in) : 15.47
• Extended Height B (in) : 25.43
• Outside Dia. D (in) : 2.26
• Plunger Dia. E (in) : 1.49
• Base to Inlet Port G (in) : 1.67
• Collar Thread Length L (in) : 1.13
• Saddle Height S (in) : 0.94
