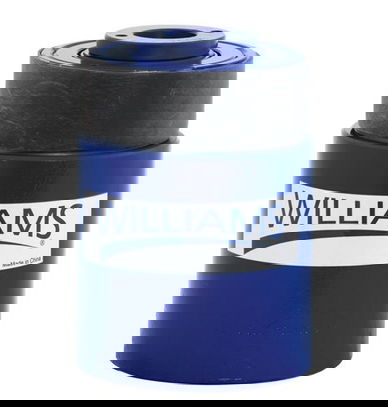

12 Ton Williams Hollow Hole Cylinder - 6CH12T03

The 6CH12T03 12 Ton Williams Hollow Hole Cylinder - 6CH12T03 comes with the Williams Industrial Brands Limited lifetime warranty.

Hollow Hole Cylinder.

Features

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High flow coupler with dust cap
• Cylinder Effective Area: 2.91 in2.
• Pressure at Capacity: 8,236 psi
• Oil Cap.: 8.72 in2.
• Min. Height: 7.24 in.
• Max. Height: 10.24 in. in.
• O.D.: 2.760 in.
• Plunger:
• I.D.: 0.770 in.
• O.D.: 1.38 in.
• Cylinder Capacity: 12 tons
• Stroke: 3.00 in.
• Collar Thread:
• Dia.: 2 3/4"-16 in.
• Lgth.: 1.81 in.
• Base to Inlet Port: 0.75 in.
• Base Mounting Hole:
• Bolt Circle: 2.00 in.
• Thread: 5/16"-18UNC in.
• Thread Depth: 0.35 in.
• Weights: 8.6 lbs.
• Country of Origin: Taiwan
