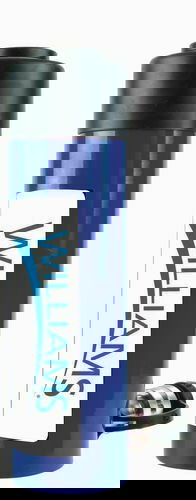

14.25" Stroke Williams 25T Single Acting Cylinders - 6C25T14

14.25" Stroke Williams 25T Single Acting Cylinders - 6C25T14

Now:$1,587.04
MSRP:$3,584.10
(You save $1,997.06 )
  • SKU:JHW6C25T14
  • UPC:662459922908
  • Condition:New
  • Scale:25 Ton
2 In Stock
Product Description

Williams

The 6C25T14 14.25" Stroke Williams 25T Single Acting Cylinders - 6C25T14 comes with the Williams Industrial Brands Limited lifetime warranty.

14.25

25T Single Acting Cylinder 14''

Features

  • 39 models
  • Internal plunger threads
  • Snap in grooved saddles
  • Rod wiper seals out dirt and contamination
  • Collar fi xture threads
  • Two base mounting holes on most models
  • High strength steel construction from gun drilled solid bar
  • High fl ow 3/8" NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi / 700 bar
  • Country of Origin : Taiwan
  • Cylinder Capacity (tons) : 25
  • Stroke (in) : 14.25
  • Cylinder Effective Area (in2) : 5.14
  • Pressure at Capacity (psi) : 9,730
  • Oil Capacity (in3) : 73.25
  • Collapsed Height A (in) : 18.74
  • Extended Height B (in) : 32.99
  • Cylinder Bore Dia. C (in) : 2.56
  • Outside Dia. D (in) : 3.35
  • Plunger Dia. E (in) : 2.24
  • Saddle Dia. F (in) : 1.97
  • Base to Inlet Port G (in) : 0.98
  • Collar Thread H (in) : 3 5/16 -12
  • Collar Thread Length L (in) : 1.93
  • Plunger Internal Thread J (in) : 1 1/2 -16
  • Plunger Thread Length K(in) : 1.18
  • Base Mounting Hole Bolt Circle X (in) : 2.31
  • Base Mounting Hole Thread Y (in) : 1/2"-13UNC
  • Base Mounting Hole Thread Depth Z (in) : 0.75
