3/8" Dr 10 - 100 Ft Lbs Digitool Electronic Portable Torque Meter - SPM-1002

$342.88
$486.58
  • SKU:SPM-1002
  • Condition:New
  • Drive Size:3/8 Inch
  • Range Ft Lbs:10 - 100
  • Range Nm:13.6 - 135.6
  • Weight:0.25 Kg
  • Accuracy:3%
Product Description

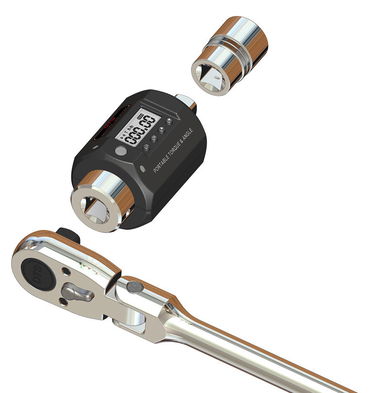

The 3/8" Dr 120 - 1200 In Lbs Digitool Solutions Electronic Portable Torque Meter - SPM-1002

Simple Intuitive user Interface

This 3/8" drive portable electronic torque meter is built on a Digitool Solutions exclusive rotatable platform. These meters transform any large wrench or non-impact driver into a high-precision torque instrument. They feature a simple, intuitive user interface for torque preset of fastener installation specifications. Tri-colored visual indicators, an audible signal and a tactile vibration provide preset alerts at torque attainment. Built on a robust square-drive extension and Installed between the tool and the work, these meters are free of hand-hold position error that is typical of common torque wrenches.

Torque Measurement Accuracy Within ±1% of Setting

Two models, with 3/4in square drives covering 20 ft-lb to 600 ft-lb in two ranges, function in both CW and CCW directions while maintaining torque measurement accuracy within ±1% of setting from 10% to 100% of full scale. The meter can be used down to 4% of full-scale setting while retaining a +/-3% accuracy. With extra-precision torque sensing and higher resolution analog-to digital conversion, the SPM is intended for critical industrial, aerospace, laboratory and quality control applications. The nylon housing is robust enough for tough field use. A built-in rechargeable Li-Ion battery system provides 300-hours of continuous operation. A global 110-240VAC wall transformer is included for charging.

Each 3/8" drive portable electronic torque meter is compliance with ISO-6789-2003, ASME B107.28-2005 (Type 2) Standards and N.I.S.T. A certificate of calibration with N.I.S.T. traceability is included with this meter.

Features:

  • Square Drive: 3/8 inch
  • Torque Range:
    • 120- 1200 in-lb
    • 10 - 100 ft-lb
    • 13.6 - 135.6 Nm
  • Total Length:
    • 3.5 x 2 inch
    • 89 x 50.8 mm
  • Weight: 0.55 lb
