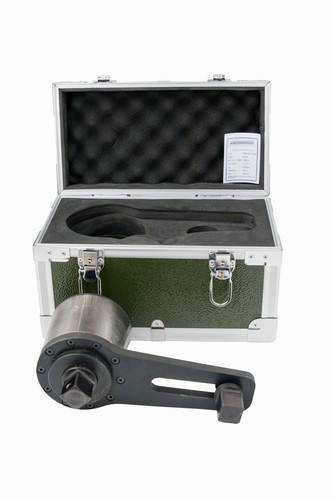

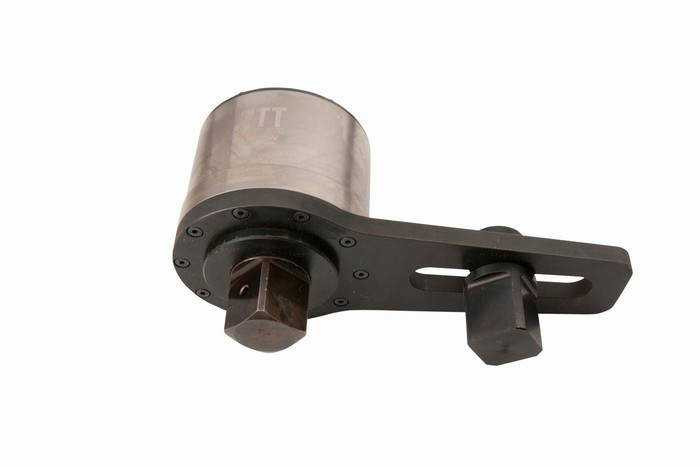

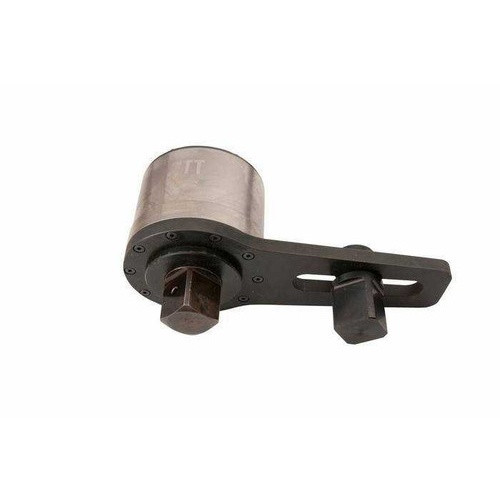

4,057 Ft Lbs 1 1/2" Dr 21:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-55F
4,057 Ft Lbs 1 1/2" Dr 21:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-55F
4,057 Ft Lbs 1 1/2" Dr 21:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-55F

4,057 Ft Lbs 1 1/2" Dr 21:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-55F

Now:$2,909.81
MSRP:$4,012.26
(You save $1,102.45 )
  • SKU:TM-55F
  • Condition:New
  • Drive Size:1 1/2 Inch
  • Torque Ratio:21:1
  • Weight Lbs:21
  • Max Ft Lbs:4057
2 In Stock
Product Description

The Pro Torque Tools TM-55F Planetary Gear Torque Multiplier offers a torque ratio of 21:1 and a maximum output of 4,057 Ft Lbs or 5,500 Nm with a 90 degree reaction plate & sliding drive.

Anywhere there's a high torque, confined space situation, a planetary gear torque multiplier should be close at hand.

Not only will a torque multiplier help make sure your fasteners are properly tightened, but it will help improve worker efficiency - two things which add up to an increase in productivity.

Through a relatively simple arrangement of gears a torque multiplier makes the toughest nut-turning jobs a snap.

Generally, a torque multiplier is needed when a prescribed amount of torque must be applied to threaded fasteners having a diameter of one inch or more, and/or when fasteners must be accurately tightened in a work space which precludes the use of a torque wrench with a long arm length.

Gear Ratios on torque multipliers can have up to a 10% +/- variance due to the friction within the gears that generate the output force. They will be most accurate when used between 50-75% of their max output. Torque levels at the high end of the range will suffer from friction loss and have a reduction in the actual output ratio. For frequently used multipliers, you should choose a model that has a max range that is at least 25% above your intended max output.

TM-55F
5500 Nm 4,057 Ft Lbs 1/2" 21:1 1 1/2" 261 Nm 193 Ft Lbs 4.1" 4.2" 21 Lbs

 TMF1.jpgTMF2.jpg TMF3.jpg

 Dimensions (mm)


Made In China
