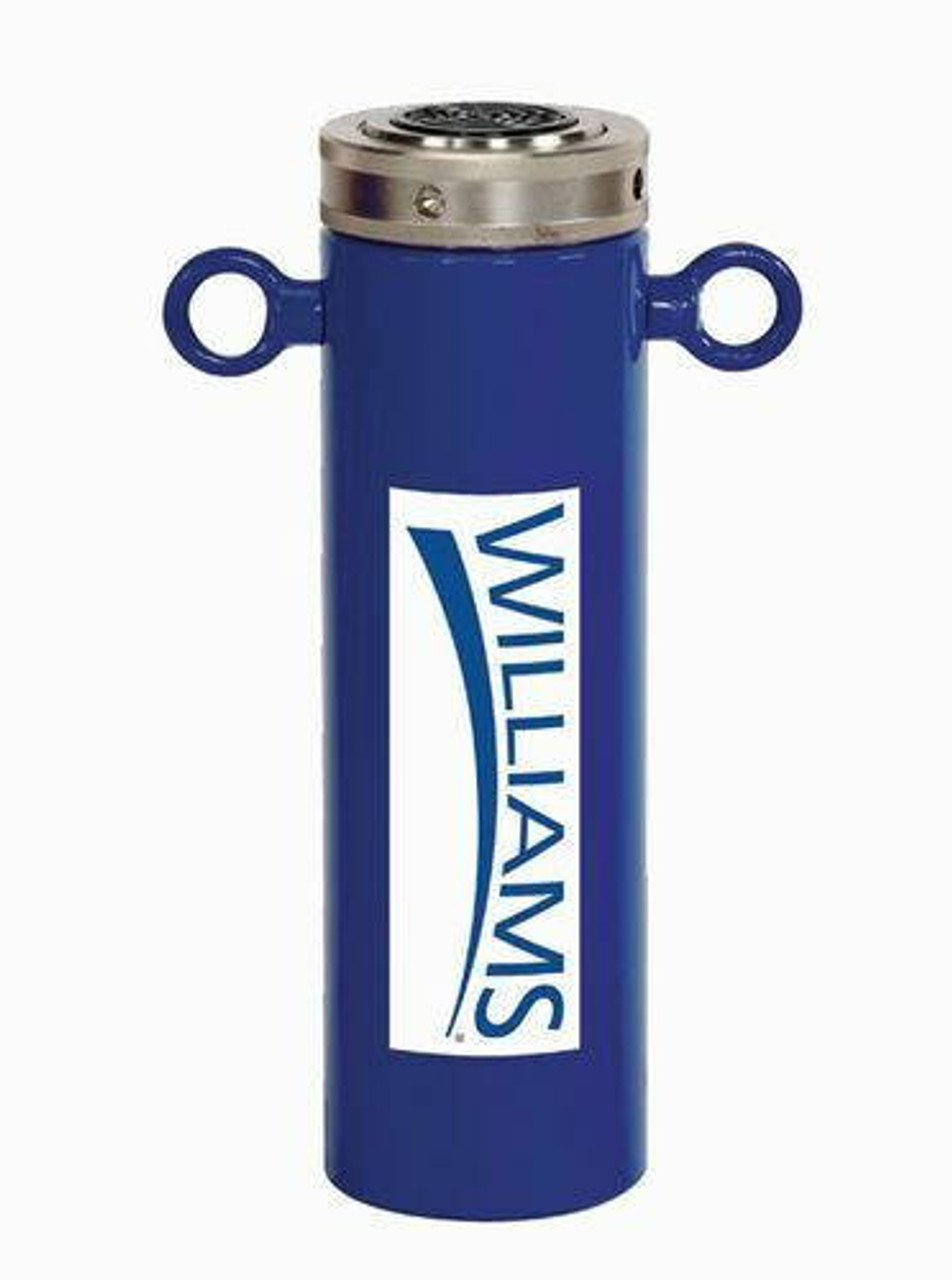

9.84" Stroke Williams 55T Locking Nut Cylinder - 6CN55T10
Now:$2,693.62
MSRP:$6,083.15
(You save $3,389.53 )
- SKU:JHW6CN55T10
- UPC:662459948496
- Condition:New
- Scale:55 Ton
Product Description
The 6CN55T10 9.84" Stroke Williams 55T Locking Nut Cylinder - 6CN55T10 comes with the Williams Industrial Brands Limited lifetime warranty.
55T Lock Nut Cylinder 10" Str
Features
- Single acting cylinder with mechanical safety lock nut
- Designed to support load for extended periods without hydraulic pressure.
- Overfl ow port prevents cylinders from over travel
- Load return
- Solid steel cylinder body
- Ideal for lifting and holding loads
- Maximum working pressure : 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 55
- Stroke (in) : 9.84
- Cylinder Effective Area (in2) : 10.99
- Oil Capacity (in3) : 108.17
- Collapsed Height A (in) : 14.3
- Extended Height B (in) : 24.2
- Cylinder Bore Diameter C (in) : 3.7
- Outside Diameter D (in) : 4.9
- Plunger Outside Thread E : Tw95-6N
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| Saddle Diameter F (in) | Depth of Plunger Hole G1 (in) | Saddle Protrusion from Plunger G2 (in) | Lock Nut Length H (in) | Base to Inlet Port I (in) | Weight (lbs) |
| 2.8 | 0.08 | 0.51 | 1.4 | 1.4 | 76.5 |
