1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG
1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG
1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG
1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG

1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG

Price:$5,273.73
  • SKU:50704.LOG
  • UPC:5060922234599
  • Condition:New
  • Drive Size:1 1/2 Inch
Product Description

Norbar

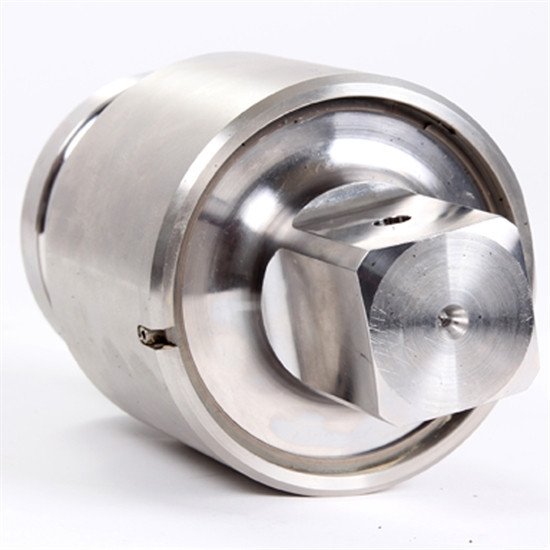

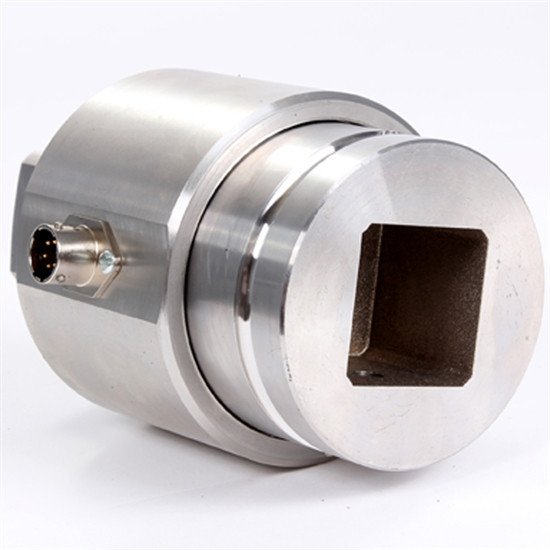

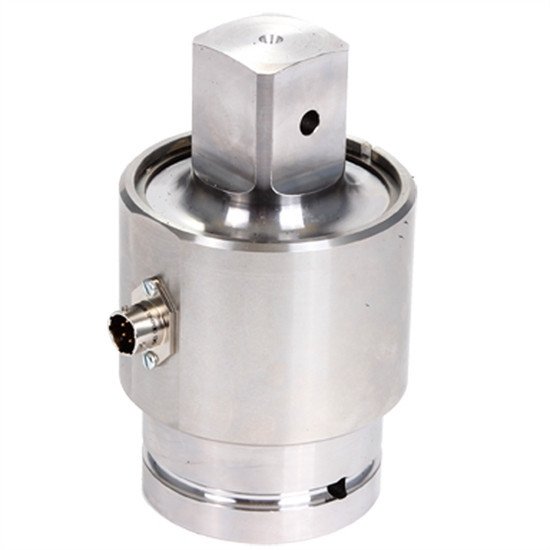

1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG

The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories throughout the world.

Features

  • Robust, heat treated, alloy steel torsion shaft design.
  • Designed to ignore non torsional forces.
  • Operates in clockwise and anti-clockwise directions.
  • Calibrated in clockwise direction as standard. Anti-clockwise calibration provided on request.
  • 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
  • Calibration up to 100,000 N·m with UKAS Certificate.
  • Weight: 4.6 Kg
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Maximum Torsion Capacity: 150%
  • Connector: 6 Way Mil Spec
  • Drive 1: 1 1/2" Male Square
  • Drive 2: 1 1/2" Female Square
  • Accuracy: ±0.5%
  • Operates between: 250.00 - 2500.00 lbf·ft
