- SKU:JHW6CF10T05
- UPC:662459923066
- Condition:New
- Scale:10 Ton
Product Description

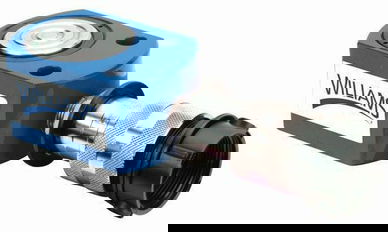

The 6CF10T05 3/8'' Williams 10T Flat Body Cylinders - 6CF10T05 comes with the Williams Industrial Brands Limited lifetime warranty.
10T Flat Body Cylinder
Features
- Made of high quality steel
- Extremely low collapsed height for applications with minimal clearance at the lift point
- Great for areas of low clearance
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 10
- Stroke (in) : 0.43
- Cylinder Effective Area (in2) : 2.36
- Pressure at Capacity (psi) : 8.470
- Oil Capacity (in3) : 1.01
- Collapsed Height A (in) : 1.69
- Extended Height B (in) : 2.12
- Outside Dim. D1 x D2 (in) : 3.3 x 2.2
- Cylinder Bore Dia. C (in) : 1.73
- Plunger Dia. E (in) : 1.50
- Base to Port G (in) : 0.77
- Plunger to Base L (in) : 1.12
- Plunger to Mtg. Hole M (in) : 1.32
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole Pitch X (in) | Hole Dia Y (in) | Counter Bore Dia. (in) | Counter Bore Depth (in) | ||||||||
| 1.44 | 0.28 | 0.42 | 0.31 | ||||||||
