- SKU:JHW6CF20T05
- UPC:662459923080
- Condition:New
- Scale:20 Ton
Product Description

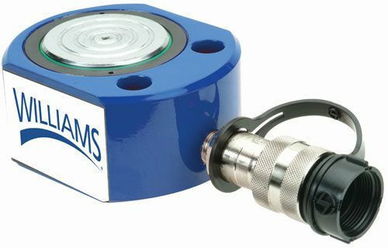

The 6CF20T05 3/8'' Williams 20T Flat Body Cylinders - 6CF20T05 comes with the Williams Industrial Brands Limited lifetime warranty.
20T Flat Body Cylinder
Features
- Made of high quality steel
- Extremely low collapsed height for applications with minimal clearance at the lift point
- Great for areas of low clearance
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 20
- Stroke (in) : 0.43
- Cylinder Effective Area (in2) : 4.38
- Pressure at Capacity (psi) : 9,130
- Oil Capacity (in3) : 1.88
- Collapsed Height A (in) : 2.01
- Extended Height B (in) : 2.44
- Outside Dim. D1 x D2 (in) : 4.0 x 3.0
- Cylinder Bore Dia. C (in) : 2.36
- Plunger Dia. E (in) : 2.00
- Base to Port G (in) : 0.75
- Plunger to Base L (in) : 1.54
- Plunger to Mtg. Hole M (in) : 1.56
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole Pitch X (in) | Hole Dia Y (in) | Counter Bore Dia. (in) | Counter Bore Depth (in) | ||||||||
| 1.94 | 0.4 | 0.59 | 0.39 | ||||||||
