35,000 Ft Lbs 2 1/2" Dr Norbar 125:1 Torque Multiplier HT13/125 AWUR - 16053
Now:$22,193.18
MSRP:$24,388.11
(You save $2,194.93 )
- SKU:16053
- UPC:5060207567824
- Condition:New
- Drive Size:2 1/2 Inch
- Max Ft Lbs:35000
- Max Nm:47453
- Torque Ratio:125:1
- Weight Lbs:210
Product Description

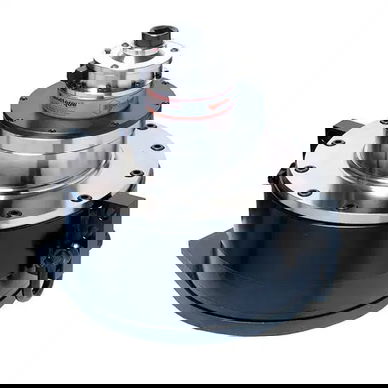

The Norbar 16053 torque multiplier HT13/125 AWUR emploies multiple stages of epicyclic gearing to give an ultra high torque ratio of 125:1. This NorBar torque multiplier delivers an English torque level of 35,000 Ft Lbs or 47,500Nm and contains a Anti Wind-Up Ratchet system.
FEATURES
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
- Tool Weight: 95.2 Kg
- Multiplication Ratio: 125:1
- Output Square: 2 1/2"
- Input Square: 3/4"
- Velocity Ratio: 158.678:1
- Max Input Speed: 38 revs/min
- Plate Weight: 6.9 Kg
- Plate Torque: 310 N.m
Made In England
