50 Ton Williams Flat Body Cylinder - 6CF50T05

$1,084.97
$2,391.89
  • SKU:JHW6CF50T05
  • UPC:662459973849
  • Condition:New
  • Scale:50 Ton
3 In Stock
Product Description
&J2&

The 6CF50T05 50 Ton Williams Flat Body Cylinder - 6CF50T05 comes with the Williams Industrial Brands Limited lifetime warranty.

Flat Body Cylinder.

Features

  • Made of high quality steel
  • Extremely low collapsed height for applications with minimal clearance at the lift point
  • Great for areas of low clearance
  • Maximum working pressure 10,000 psi / 700 bar
  • Hole Pitch: 2.62 in.
  • Hole Dia: 0.43 in.
  • Counter Bore Dia.: 0.75 in.
  • Counter Bore Depth: 0.50 in.
  • Cylinder Capacity: 50 tons
  • Stroke: 0.63 in.
  • Cylinder Effective: 9.86 in3.
  • Pressure at Capacity: 10,140 psi
  • Oil Capacity: 6.21 in3.
  • Collapsed Height: 2.64 in.
  • Extended Height: 3.27 in.
  • Outside Dim.: 4.5 in. x 4.5 in.
  • Cylinder Bore Dia.: 3.54 in.
  • Plunger Dia.: 2.76 in.
  • Base to Port: 0.79 in.
  • Plunger to Base: 2.25 in.
  • Plunger to Mtg. Hole: 2.13 in.
  • Country of Origin: Taiwan

Reviews

related Products

20 Ton 3/8'' Williams Flat Body Cylinders - 6CF20T05
$655.85
$1,401.36
Choose Options
30 Ton 3/8'' Williams Flat Body Cylinders - 6CF30T05
$739.86
$1,631.08
Choose Options
5 Ton Williams Flat Body Cylinders Kit - 6CF05T03TB
$378.69
$809.17
Choose Options

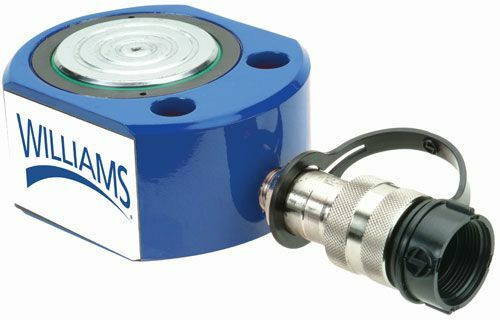

20 Ton Williams Flat Body Cylinders Kit - 6CF20T05TB
