Product Description

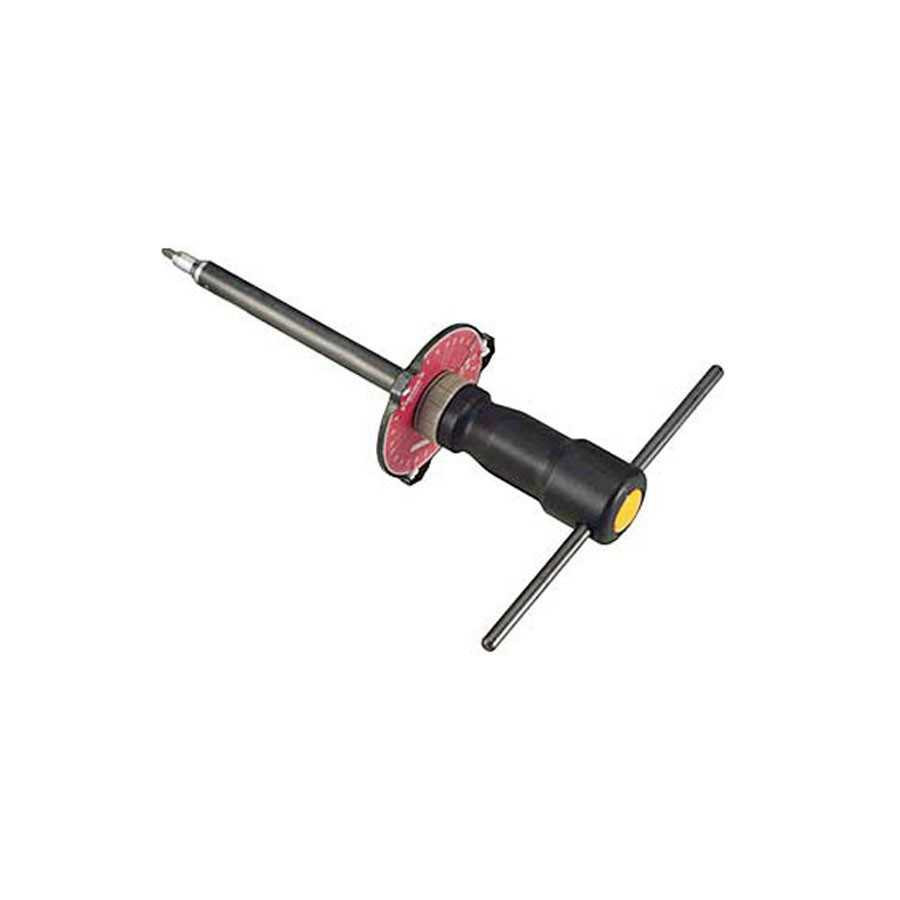

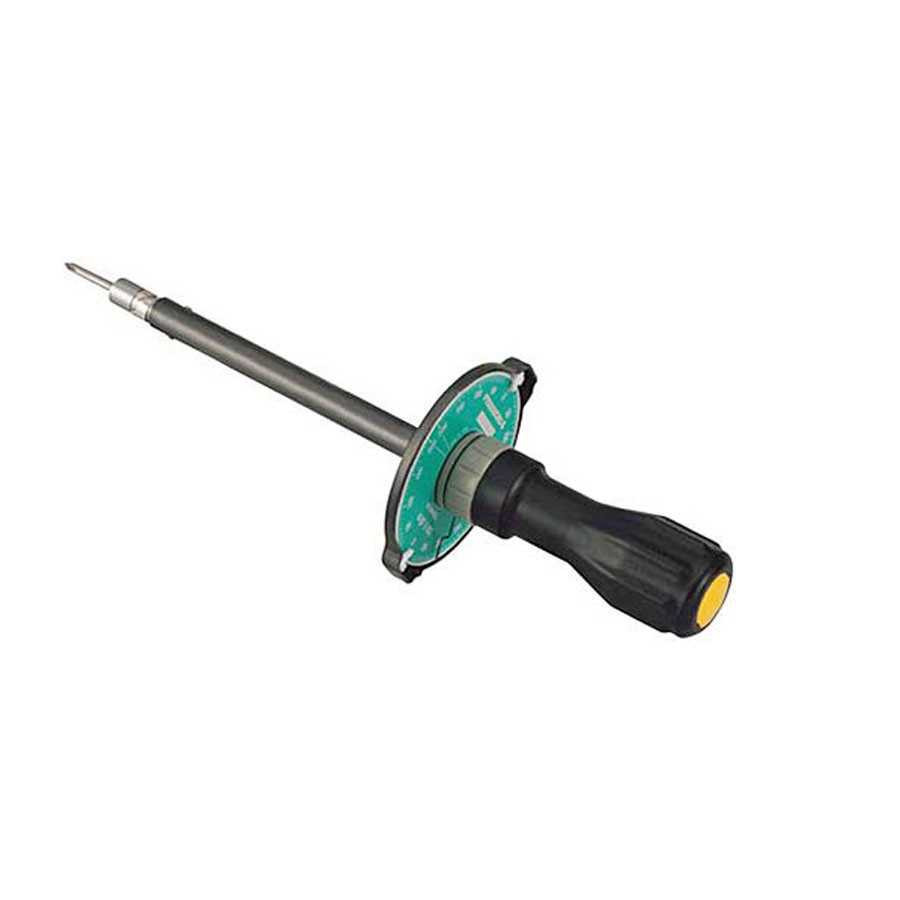

The FTD50CN2-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 5 - 50 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
| Accuracy ± 3% | |||||||||||||
| S.I. MODEL | FTD50CN2-S | ||||||||||||
| TORQUE RANGE [cN . m] | MIN.~MAX. | 5~50 | |||||||||||
| GRAD. | 1 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M2.5 | |||||||||||
| TAPPING SCREW | (M2.2) | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 272 | ||||||||||
| GRIP | D1 | 38 | |||||||||||
| BODY | D2 | 90 | |||||||||||
| D3 | 13 | ||||||||||||
| D4 | 11 | ||||||||||||
| L1 | 157 | ||||||||||||
| L2 | 115 | ||||||||||||
| WEIGHT [kg] | 0.37 | ||||||||||||
| SCALE PLATE COLOR | RED (VERMILLION) | ||||||||||||
Made in Japan
Warranty
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Custom Field
Drive Size 1/4 Inch
Range cNm 5 - 50
Accuracy 3%
Made In Japan
