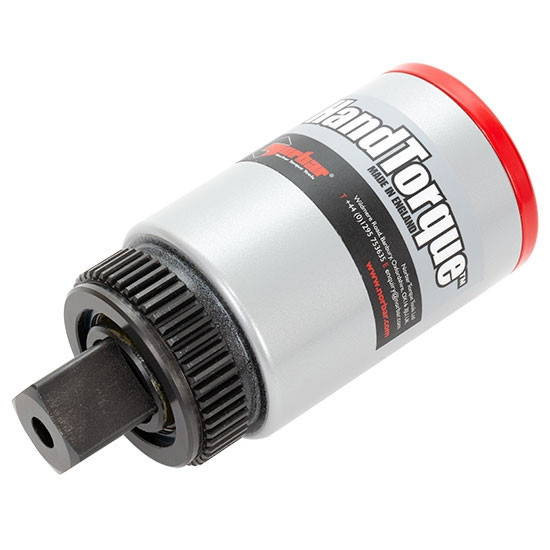

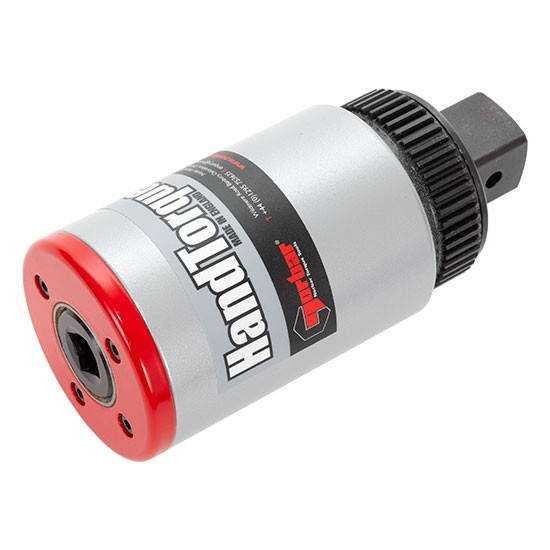

1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450
1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450

Norbar

1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450

$2,568.59
$2,963.76
  • SKU:181450
  • UPC:5060922236074
  • Condition:New
  • Drive Size:1 Inch
Product Description

Norbar

1" Dr Norbar HT-72/27 Hand Torque Compact Series - 181450



Features

  • 72mm diameter allows excellent access.
  • Guaranteed accuracy of better than +/-4%.
  • Anti Wind-Up Ratchet available on 25:1 models for easier and safer operation.
  • A variety of reaction styles are available for maximum versatility.
  • Electronic torque transducers can be fitted for precise torque monitoring.
  • Available in a variety of ratios and output square drive sizes.
  • Each multiplier is supplied with its own unique calibration certificate allowing the accurate calibration of input torque for critical application. Calibrated from 20% of maximum capacity.
  • Tool Weight: 2.9 Kg
  • Multiplication Ratio: 27:1
  • Output Square: 1"
  • Input Square: 1/2"
  • Plate Weight: 1.4 Kg
  • Accuracy: ±4%
  • Operates between: 200.00 - 2000.00 N·m



Warranty
Reviews
