Product Description
74.1-366.6 Ft Lbs / 100-500 Nm Tohnichi Interchangeable Head Digital Torque Wrench - CEM500N3X22D-G
Features
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.

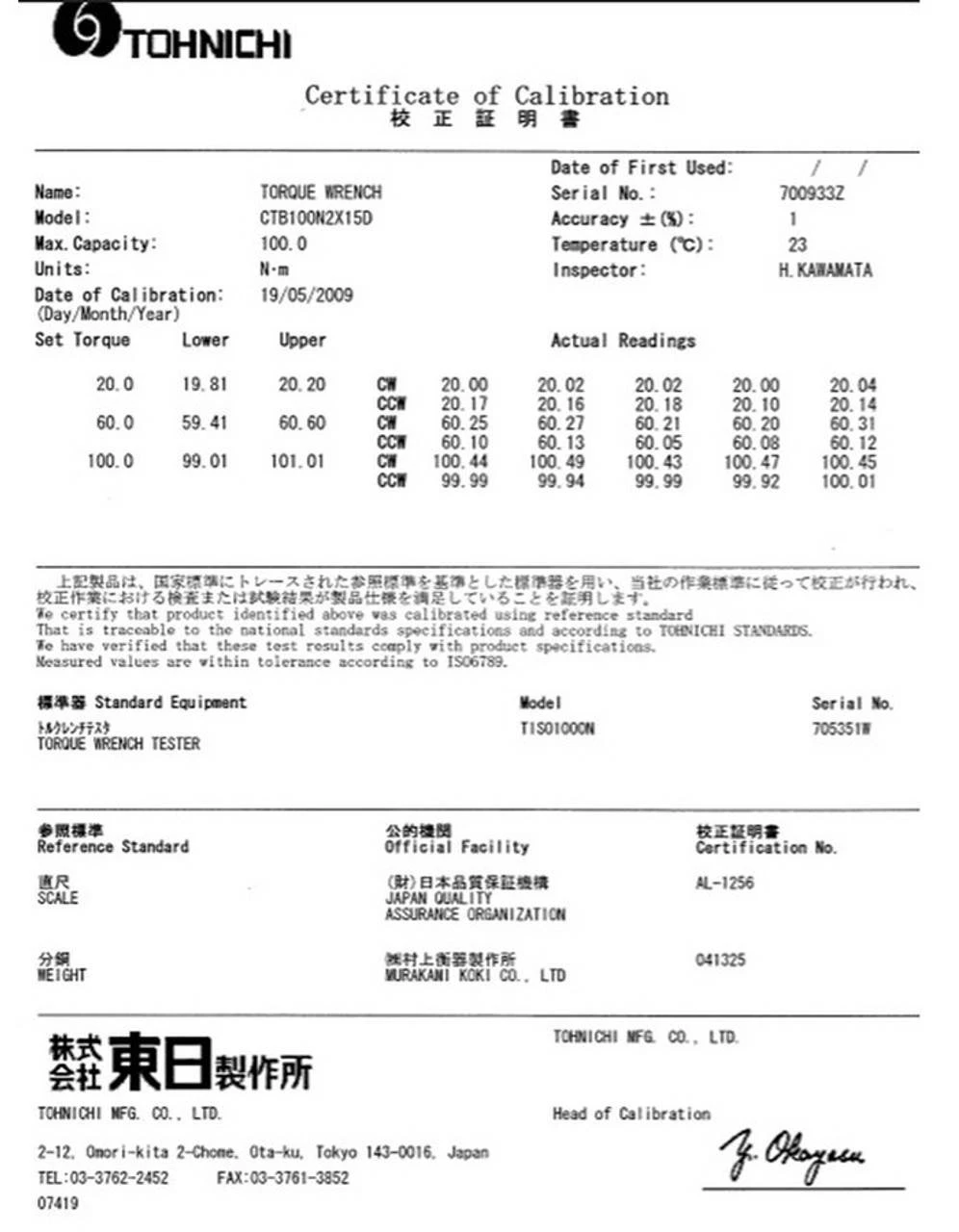

- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Supplied with Interchangeable Ratcheting Square Drive Head. A variety of other head types are sold separately
- Includes Rechargeable Battery and Charger
- Export data with Cable (sold separately)
- Included with cable purchase is Excel Receiver Software that allows data to be transferred into an Excel® Spreadsheet. (*Note: Excel® is a registered trademark of the Microsoft Corporation).
- Bluetooth Models Also Available: See Model CEM3-G-BT
- With CE mark. For international use including the EU region.
- Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
- Applicable for international use including the EU region.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
Specifications
|
Accuracy ±1% |
|||||
| MODEL | CEM500N3X22D-G | ||||
| TORQUE RANGE | MIN.~MAX. | 100~500 | |||
| [N • m] | 1 DIGIT | 0.5 | |||
| TORQUE RANGE | MIN.~MAX. | 1000~5000 | |||
| [kgf • cm] | 1 DIGIT | 5 | |||
| TORQUE RANGE | MIN.~MAX. | 10~50 | |||
| [kgf • m] | 1 DIGIT | 0.05 | |||
| TORQUE RANGE | MIN.~MAX. | 890~4400 | |||
| [lbf • in] | 1 DIGIT | 5 | |||
| TORQUE RANGE | MIN.~MAX. | 73~360 | |||
| [lbf • ft] | 1 DIGIT | 0.5 | |||
| MAX. HAND FORCE [N] | 549.5 | ||||
| DIMENSION | EFFECTIVE LENGTH (L) | 910 | |||
| [mm] | OVERALL LENGTH (L') | 949 | |||
| HEAD (d3) | 22 | ||||
| WEIGHT [kg] | 4.00 | ||||
| INTERCHANGEABLE HEAD | (SH,RH,QH,RQH,DH,HH) | ||||
| 22D | |||||
| DISPLAY | 7 segments LED 4 lines 10 mm | |
| 14 segments LCD 6 lines 7 mm | ||
| 7 segments LED 4 lines 3 mm | ||
| Battery Life Indicator ( 4 steppes ) | ||
| Judgment LED RED / BLUE | ||
| MEMORY | 999 (M-2 mode: 99 data) | |
| COMMUNICATION FUNCTIONS | RS232C ( 2400-19200 bps ) | |
| Serial output corresponding to a USB connector | ||
| POWER SUPPLY | Ni-MH rechargeable battery | |
| CONTINUOUS USE | Approx. 20 hrs with fully charged ( 8 hrs by 1 hrs recharging ) | |
| RECHARGING TIME | Approx. 3.5 hrs | |
| OPERATION TEMPERATURE[°C] | 0~40 no condensation | |
| BASIC FUNCTION | Peak Hold | |
| Peak Data Memory with date and time | ||
| Auto Memory & Resetting | ||
| Tightening Completion Buzzer | ||
| Judgment of Measured Data | ||
| Auto Zero setting | ||
| Auto power off ( 3 min ) | ||
| Clock | ||
Dimensions
Interchangeable Heads Available For This Wrench:
 |
 |
 |
 |
 |
 |
 |
Made in Japan
Warranty
Warranty: All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Videos Hide Videos Show Videos
Custom Field
Max Nm 500
Max Ft Lbs 366.6
Feature Interchangeable Head
Accuracy 1%
Drive Size 3/4 Inch
Made In Japan
