Product Description

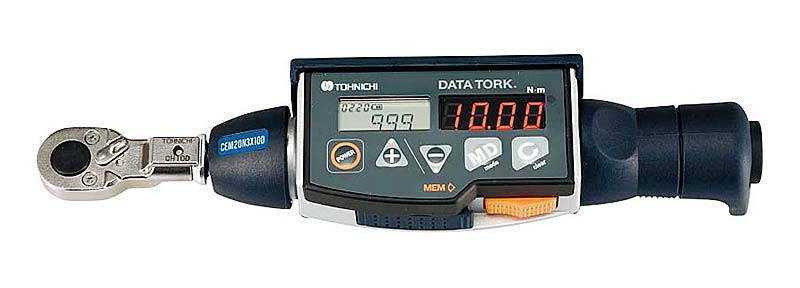

The Tohnichi CEM10N3X8D-G Digital torque wrench has torque ranges of Torque Ranges: 2-10 NM,20-100 kgf.cm.,0.200-1.000kgf.m.,20.0-90.0 lbf.in.,1.50-7.30 lbf.ft and uses Tohnichi size 8D heads.
Features
- Accuracy +/- 1% of indicated value; CW & CCW testing; 999 Data Memory; Run and Peak Modes
- Includes QH12D 3/8" ratcheting square drive head (removable)
- RS232 port for downloading data; #584 cable sold separately
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.
- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Supplied with Interchangeable Ratcheting Square Drive Head.

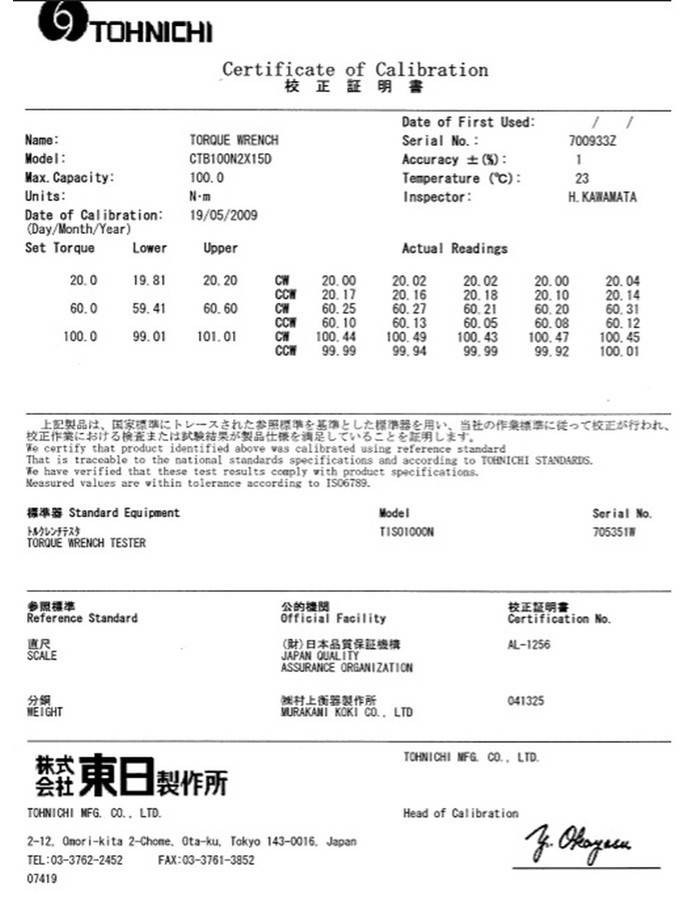

- Includes Certificate of Calibration in NM units;
- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Specifications
| Accuracy ±1% | ||||
| MODEL | CEM10N3X8D-G | |||
| TORQUE RANGE [N • m] | MIN.～MAX. | 2～10 | ||
| 1 DIGIT | 0.01 | |||
| TORQUE RANGE [kgf • cm] | MIN.～MAX. | 20～100 | ||
| 1 DIGIT | 0.1 | |||
| TORQUE RANGE [kgf • m] | MIN.～MAX. | 0.2～1 | ||
| 1 DIGIT | 0.001 | |||
| TORQUE RANGE [lbf • in] | MIN.～MAX. | 20～90 | ||
| 1 DIGIT | 0.1 | |||
| TORQUE RANGE [lbf • ft] | MIN.～MAX. | 1.5～7.3 | ||
| 1 DIGIT | 0.01 | |||
| MAX. HAND FORCE [N] | 48.1 | |||
| DIMENSION [mm] | EFFECTIVE LENGTH (L) | 208 | ||
| OVERALL LENGTH (L') | 212 | |||
| HEAD (d3) | 8 | |||
| WEIGHT [kg] | 0.46 | |||
| INTERCHANGEABLE HEAD | (SH,RH,QH,HH) 8D | |||
Interchangeable Heads Available For This Wrench:
 |  |
 |  |
Made in Japan
Other Details
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Custom Field
Max In Lbs 7.5 - 36
Max Nm 2 - 10
Accuracy 1%
Drive Size 1/4 Inch
Feature Interchangeable Head
