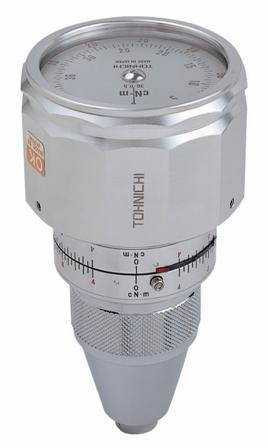

10-90 cNm Tohnichi Torque Gauge - BTG90CN-S
10-90 cNm Tohnichi Torque Gauge - BTG90CN-S
10-90 cNm Tohnichi Torque Gauge - BTG90CN-S

10-90 cNm Tohnichi Torque Gauge - BTG90CN-S

Now:$730.17
MSRP:$768.60
(You save $38.43 )
  • SKU:BTG90CN-S
  • Condition:New
  • Range cNm:10 - 90
  • Accuracy:2%
  • Drive Size:3-jaw chuck
Product Description

Tohnichi

10-90 cNm Tohnichi ATG / BTG Torque Gauge - BTG90CN-S

Features

  • Torque gauge series designed to measure low torque from 0.5mN • m to 150cN • m
  • Two Body Sizes: ATG smaller and BTG larger coordinate with torque ranges.
  • Bi-directional operation handheld type torque gauge.
  • Aluminum Threaded keyless 3-jaw chuck is standard. (order replacement #00T45502B for ATG & #00T04282A for BTG)
    • For ATG: plastic chuck #322 or steel chuck #321 are also available as optional accessories
  • Push lock button holds the gauge in place while securing test object in the chuck
  • The dial is scaled by 270 degrees with a stopper which prevents over-loading.

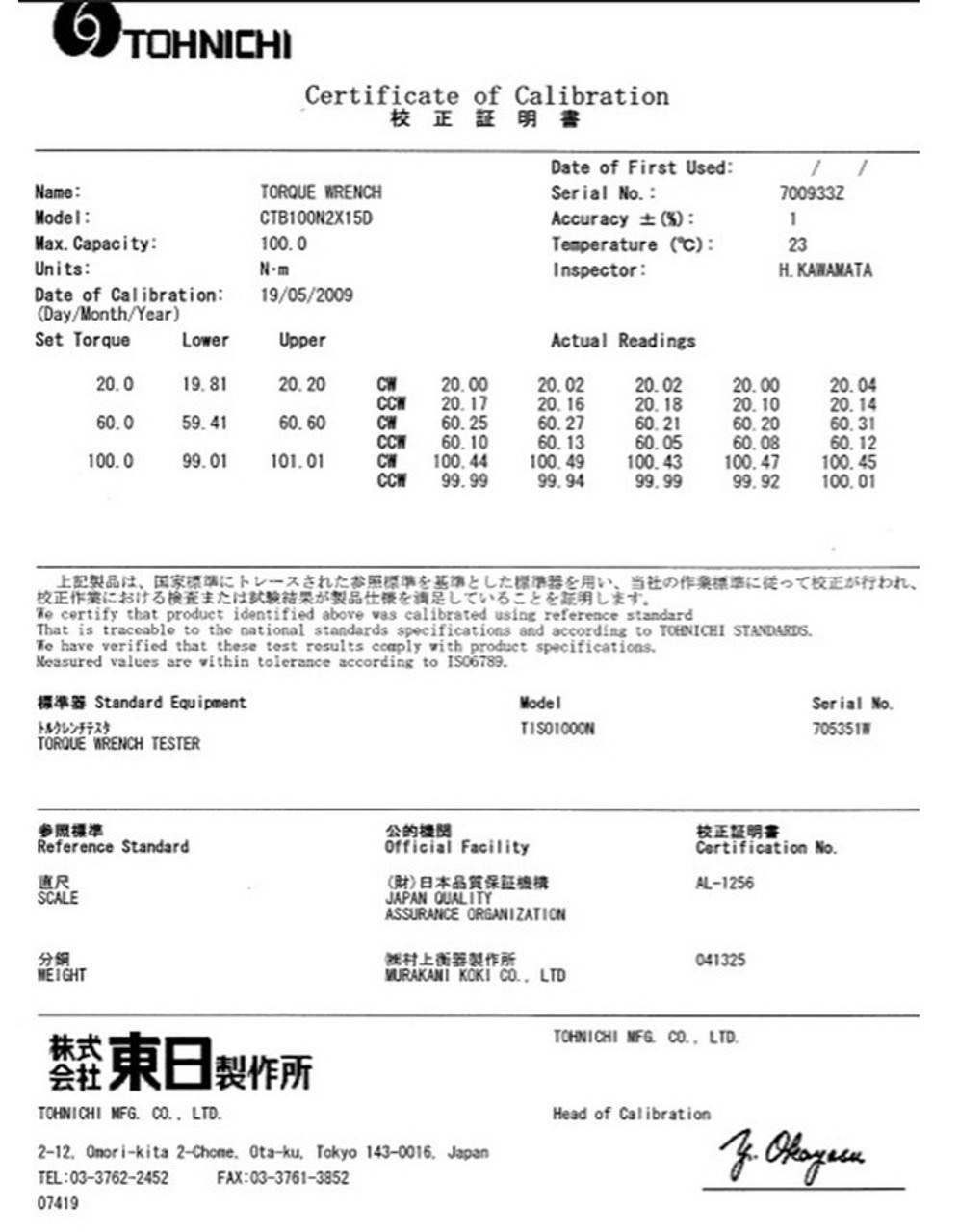

  • Includes plastic storage case and certificate of calibration
  • For calibration, use calibration kits ATGTCL for ATG, and BTGTCL for BTG (sold separately) or contact our repair dept.
  • Top and Side scales feature memory pointers to insure easy and accurate torque reading from different angles.

Specifications

Accuracy ±2%
S. I. MODEL
  BTG90CN-S
TORQUE RANGE MIN.~MAX. 10~90
[cN • m] GRAD. 1
MEMORY POINTER TOP Standard
SIDE Standard
DIMENSION OVERALL LENGTH L' 119
[mm] DIAMETER D 64.2
  CHUCK GRIP Φd 1~8.5
  SCALE DIA. D1 53
  BODY L1 67
WEIGHT[kg] 0.52


Made In Japan
