3,200 Ft Lbs 1" Dr Williams 18.5:1 Planetary Gear Torque Multiplier - TM-393
Now:$2,822.85
MSRP:$6,375.00
- SKU:JHWTM-393
- UPC:662459261281
- Condition:New
- Drive Size:1 Inch
- Max Ft Lbs:3200
- Max Nm:4338
- Torque Ratio:18.5:1
- Weight Lbs:22.5
Product Description

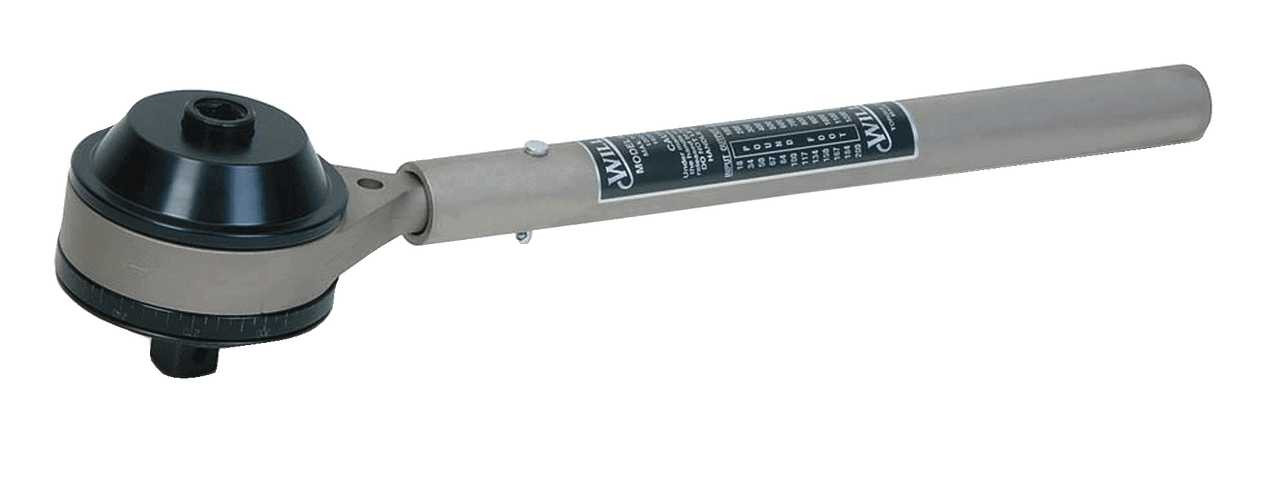

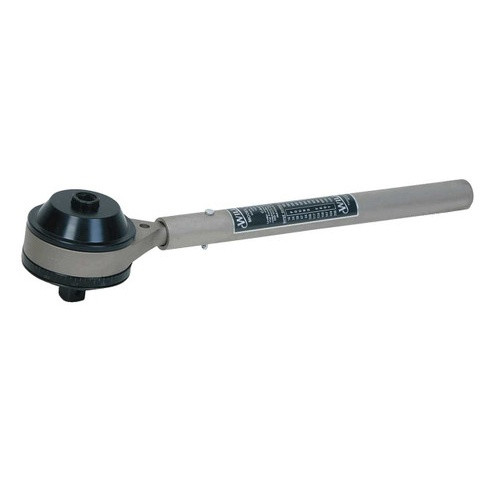

The Williams TM-393 planetary gear torque multiplier offers a torque ratio of 18.5:1 and a maximum output of 3,200 Ft Lbs or 4,338 Nm.
Torque Multiplier Tool Features:
- Designed where high torques are necessary for fastening or breaking out stubborn fasteners.
- Allows operator safe and easy means of producing torque for job requirements.
- Precision planetary gear multiplies the operator's input from standard torque wrenches.
- Can also multiply the torque from air-Driven (non-impact) wrenches
- Max Output Ft. Lbs.: 3200
- Input Cap: 173
- Gear Ratio: 20.25:1
- Torque Ratio: 18.5:1
- Input Sq. Size: 1/2"
- Output Sq. Size: 1
- Overall Length: 19 39/64
- Head Height Sq. to Top: 5 3/4
- Head Dia.: 4 1/16
