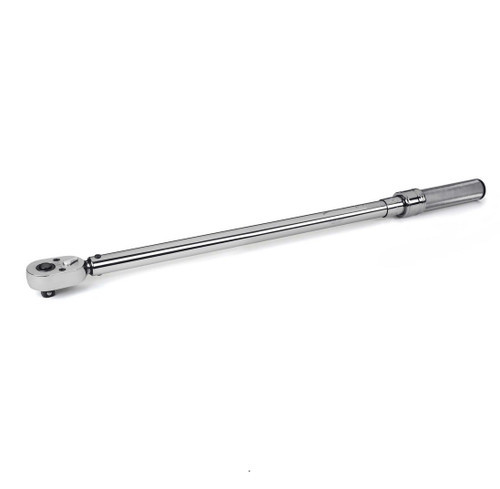

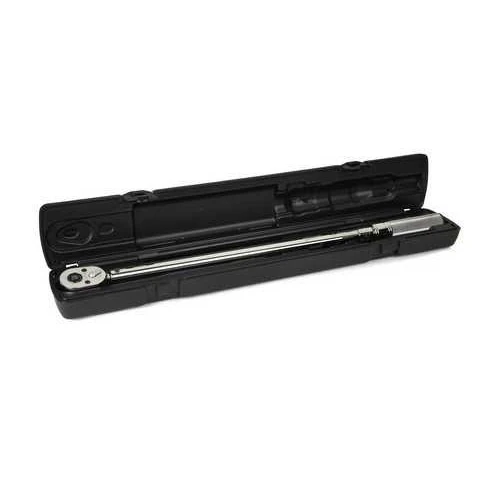

1/2" Dr 20-150 Ft Lbs / 34-197 Nm CDI Adjustable Torque Wrench - 1503MFRMH

$233.67
$499.31
  • SKU:1503MFRMH
  • UPC:0662459927392
  • Condition:New
  • Drive Size:1/2 Inch
  • Max Ft Lbs:150
  • Max Nm:197
  • Length:19"
  • Weight Lbs:3.15
  • Accuracy:4%
  • Made In:USA
888 In Stock
Product Description

The CDI 1503MFRMH
Micrometer Adj Torque Wrench Dual Scale has a 1/2" Drive and an English range of 20-150 Ft Lbs and Metric range of 34-197 Nm.  The metal handle series offers the user a rugged, industrial strength torque wrench able to withstand the rigors of professional use and all of CDI's click torque wrenches are calibrated for use in both direction.

150 Ft Lb Adjustable Torque Wrench Features:

  • Handles are lightly knurled for a tough, non-slip grip.
  • Dual scale, calibrated dual direction
  • Positive lock with spring loaded pull down lock ring
  • Fast, accurate and easy to set
  • Easy-to-read laser marked scales
  • Most feature quick release buttons which provide good socket retention as well as easy socket removal
  • Accuracy: ± 4% clockwise ± 6% CCW of indicated value, CW, from 20% to 100% of full scale
  • Meets or exceeds ASME B107.14-2004, ISO 6789 standards
  • The 1/2" drive torque wrench is individually serialized with the matching certificate of calibration traceable to N.I.S.T.


  • Drive: 1/2"
  • English Range: 20-150 ft lb
  • English Range Increments: 1
  • Nm Range: 34-197
  • Nm Increments: 1.4
  • A In.: 19
  • B In.: 1.7
  • C In.: 1.4
  • D In.: 1.4
  • Wt. Lbs: 3.15
