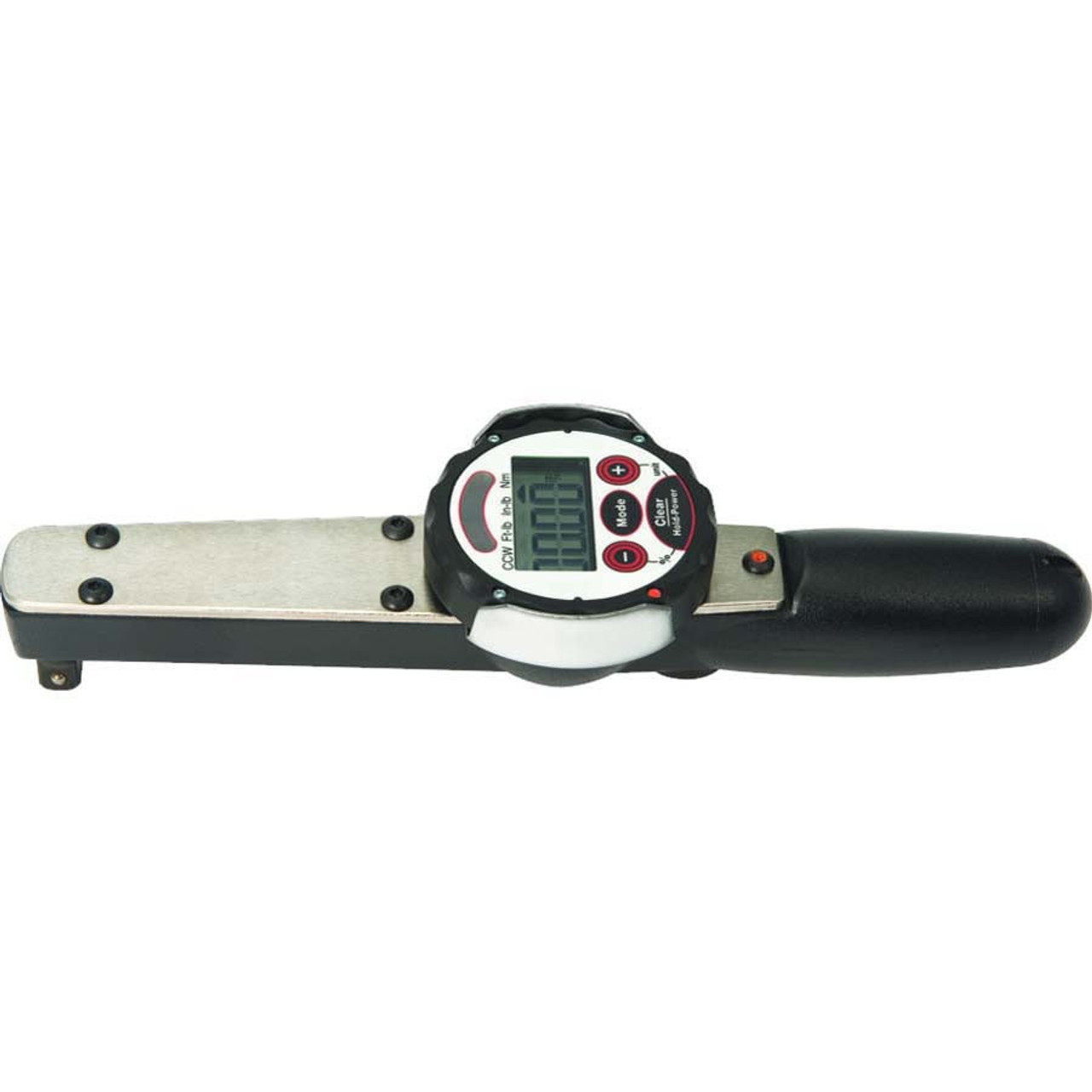

1/4" Dr 10-100 In Lbs / 1.1-11.1 Nm Proto Electronic Dial Torque Wrench - J6342
1/4" Dr 10-100 In Lbs / 1.1-11.1 Nm Proto Electronic Dial Torque Wrench - J6342
1/4" Dr 10-100 In Lbs / 1.1-11.1 Nm Proto Electronic Dial Torque Wrench - J6342

1/4" Dr 10-100 In Lbs / 1.1-11.1 Nm Proto Electronic Dial Torque Wrench - J6342

Now:$614.15
MSRP:$1,124.18
(You save $510.03 )
  • SKU:J6342
  • UPC:662679005764
  • Condition:New
  • Drive Size:1/4 Inch
  • Max In Lbs:100
  • Max Ft Lbs:8.3
  • Max Nm:11.1
  • Length:11"
  • Weight Lbs:1.40
  • Accuracy:1%
  • Made In:USA
4 In Stock
Product Description


The Proto J6342 Electronic Dial Torque Wrench has a 1/4" Drive and an English range of 10-100 In-Lbs & .8-8.3 Ft Lbs and a Metric range of 1.1-11.1 Nm. Manufactured to meet standard industrial torque applications such as general industry, heavy equipment and maintenance.

Features:

  • Extended operation range in ft-lb, in-lb and Nm units.
  • Precision Accuracy: + / - 1% in BOTH directions.
  • Accuracy valid from 10% to 100% of full scale.
  • Large easy to read digits.
  • Patented rotary bezel. LCD and key pad rotate both ways, up to 359 degrees for easy viewing.
  • Torque target zone adjustable 1% to 10% indicates when the desired torque limit is approaching.
    - Yellow light indicates the low end of the zone
    - Green light and buzzer sounds when the target is reached
    - Red Light with intermittent buzzer indicates over-torqued
  • One button target torque setting.
  • Ergonomically designed for user comfort.
  • Operates on standard 9 volt battery.
  • Torsion drive strain gauge technology improves accuracy.
    - Users can pull on the handle anywhere and still maintain accuracy.
  • Built on durable chrome body (not painted) with nylon-6 rotary bezel.
  • Rotary dial is shrouded with metal walls to protect display.
  • Peak, hold and track modes standard.
  • Fast sampling rate helps maintain high accuracy during torque applications.
  • Easy to use by production line or quality control inspector.
  • Meets or exceeds ASME B107.28


Drive Size [in]

1/4

Increments [Ft Lbs]

0.01

Increments [In Lbs]

0.1

Torque Range [Ft Lbs]

0.83-8.33

Torque Range [In Lbs]

10-100

Torque Range [Nm]

1.11-11.13

Increments [Nm]

0.01

Width [in]

3

Height [in]

2-1/2

Maximum Torque [Nm]

11.13

Minimum Torque [Nm]

1.11

Overall Length [in]

11

Weight [Lbs]

1.40
