Product Description
The Tohnichi STC200CN2-G Digital Torque Screwdriver has a 1/4" Hex Bit Holder and an English range of 4-17 In Lbs and a Metric Range of 40-200 cNm or 4-20 kgf.cm.

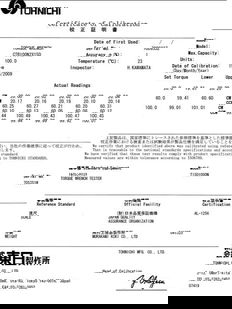

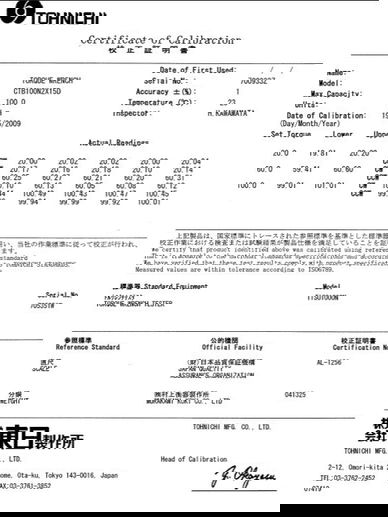

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
1/4" Tohnichi Torque Screwdriver Features:
- Ideal for measuring or tightening torque applications in cNm, kgf.cm, In Lbs or In Oz.
- The digital torque screwdriver is portable and convenient method to confirm torque settings of torque screwdrivers.
- Display setting can be changed so you can read it from different view points
New Judgment Feature: Light indicator and buzzer alerts:
- In Tightening Mode, the digital torque screwdriver has light indicator (and buzzers) that alerts user to status:
- White: approaching target torque at 80%,
- Blue: achieved target torque
- Yellow / Red: over torque
- In Measuring Mode, inspection results are indicated :
- Blue: within hi/lo judgment parameters
- Yellow
- Red: outside hi/lo judgment parameters
- New Lithium-ion Battery for up to 30 Hrs Continuous Use
- New Expanded Memory Capacity: 1000 Data Memory Storage
- New USB port for easy data downloading
- Features Ratcheting Direction Control
- Accepts standard 1/4 hex root shape bits (sold separately See "Bit Selection" link below)
- New: STC2-G-BT Version Features Bluetooth Data Transfer Function
- Data Memory: 1000 Data
- Arithmetic Function: Sampling, Maximum, Minimum, Means
- Measurement Mode: PEAK/RUN
- Usage Direction: CW & CCW
- Usage Type: Measuring & Tightening
- Data Output: USB
- Reset Function: Manual/Auto 0.5 - 5.0 sec. adjustable by 0.5 step.
- Other Function: Auto power off (after 3 min.), Battery Life Indicator, Auto Zero
- Power Source: Lithium-ion Battery Pack BP-7
- Charging Time: Via Charger: 5 Hrs, Via PC (USB): 10 Hrs
- Continuous Use: Approx 30 Hrs.
- Operating Conditions [°C]: Temperature 0 ~ 40 Degrees C, no condensation
- Standard Accessories: Quick Charger BA-7, Lithium-ion Battery Pack BP-7, USB Cable
- Use this Tohnichi torque screwdriver to spot check torque drivers
| Standard Model | Bluetooth Model | STC2-G (Unit Selection via Keypad) | Approx. Weight | |||||||
| cNm | kgf.cm. | lbf.in | Kg | |||||||
| Min~Max | 1 Digit | Min~Max | 1 Digit | Min~Max | 1 Digit | |||||
| STC200CN2-G | STC200CN2-G-BT | 40-200 | 0.2 | 4-20 | 0.02 | 4-17 | 0.02 | 0.34 | ||
Note:
- Accepts standard, 6.35 (1/4) HEX bit. (sold separately)
Made In Japan
Warranty
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Custom Field
Drive Size 1/4 Inch
Range In Lbs 4 - 17
Range cNm 40 - 200
Length 9.1"
Weight 0.34 Kg
Accuracy 3%
Made In Japan
