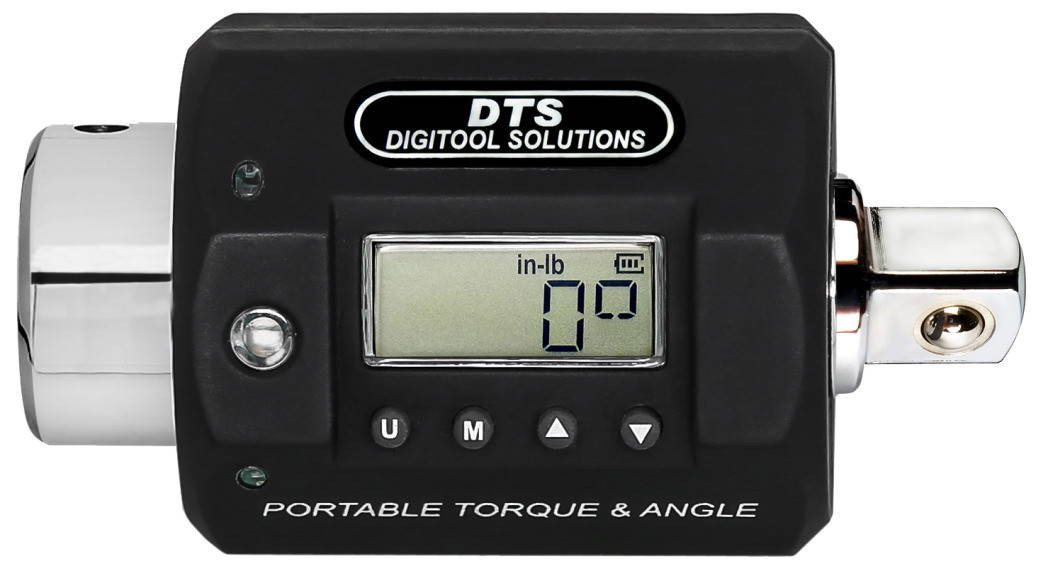

3/8" Dr 4-100 Ft Lbs Digitool Electronic Torque & Angle Meter - SPA-1002
- SKU:SPA-1002
- Condition:New
- Drive Size:3/8 Inch
- Range In Lbs:48 - 1200
- Range Ft Lbs:4 - 100
- Range Nm:6 - 135
- Weight:1.3 lbs
- Feature:Torque & Angle
- Accuracy:1%
Product Description
The 3/8" Digitool Solutions Electronic Portable Torque Angle Pro offers an English range of 4 – 100 Ft Lbs and 48 – 1200 In Lbs and a metric range of 6 – 135.6 Nm
Self-contained Electronic Torque and Angle Meters

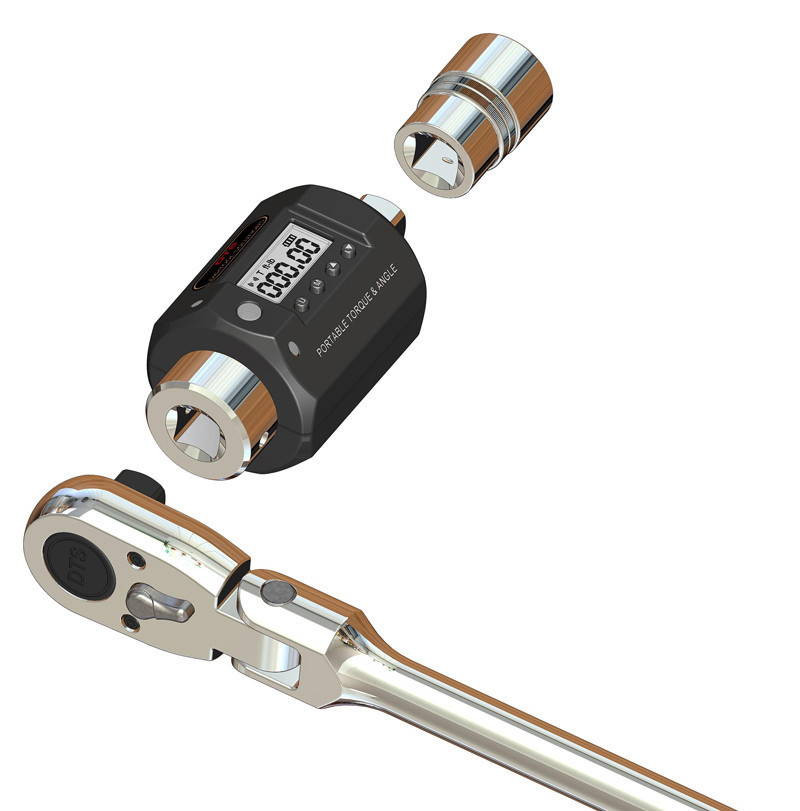

The SPA series of self-contained electronic torque and angle meter pro is built on a Digitool Solutions exclusive rotatable platform. These meters transform any wrench or non-impact driver into a high-precision torque and angle instrument. A high-contrast LCD display and simple push-button preset adjustment provide an intuitive user interface for torque and/or angle specification settings. Tri-colored visual indicators, an audible signal and a tactile vibration alert signal early warning and preset attainment of torque and angle application as well as over-load conditions. Built on a robust square-drive extension and installed between the tool and the work, the Digitool SPA-1002 digital torque meter is free of hand-hold position error that is typical of common torque wrenches.
Six Ranges Function in Both CW and CCW Directions
Six models, with square-drives covering 2.5 ft-lb to 600 ft-lb in six ranges function in both CW and CCW directions while maintaining torque measurement accuracy within ±1% between 10% to 100% of full scale and angle measurement accuracy to +/-1° of rotation. The digital torque meter is usable down to 4% of full-scale torque setting while retaining +/-3% display accuracy. With extra-precision torque sensing and higher resolution analog-to digital conversion, the Digitool SPA-1002 is intended for critical industrial, aerospace, laboratory and quality control applications. The sturdy handle and nylon housing are robust enough for tough field use. A built-in rechargeable Li-Ion battery system provides 200-hours of continuous operation. A global 110-240VAC wall transformer is included.
This torque angle meter, used with any wrench, breaker bar, hand driver or non-impacting power tool, is compliant with both ISO and ASME B107-28 (Type 1) Standards and includes A certificate of calibration with N.I.S.T. traceability.
Features:
- ±1% accuracy of torque reading from 10% – 100%
- Torque applicable in both CW & CCW
- Torque starts at 4% of full scale accuracy ±3%
- ±1° Precision at normal speed of rotation @360°
- Angle preset from 5° to 360°
- Angle memory during ratcheting
- Usable from 5% of full scale with ±3% of reading
- Warning LED, Buzzer and Vibration
- Li-Ion Polymer rechargeable battery
- Up to 200 hours of continuous operation
- Charger adapter 110-240V AC included
- Self contained Torque & Angle meter
- Easy to use. No Training needed
- Auto power off after 2 minutes
- Eliminates hand position error
- Square Drive: 3/8-inch
- Torque Range:
- 4 - 100 ft-lb
- 48 - 1200 in-lb
- 6 - 135.6 Nm
- Total Length:
- 3.5-inch x 2-inch
- 89-mm x 50.8-mm
- Weight: 1.3-lb | 0.59-kg
