Product Description

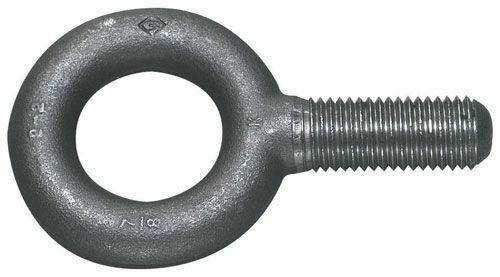

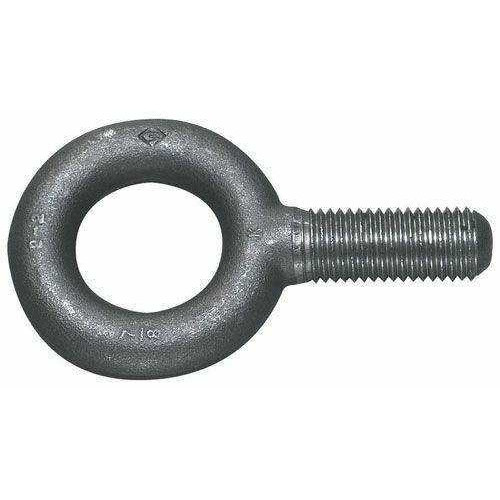

The EB-14T 1 1/2" Williams Eye Bolt - Plain Pattern comes with the Williams Industrial Brands Limited lifetime warranty.
Plain Eye Bolt - 1-1/2"
Features
- Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
- Each lot is tested and inspected to insure conformance to specifications
- Available with UNC Class 2A thread only
- Plain pattern eyebolts must never be used to lift an angular load
- Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
- To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable Tightness and seating must be checked after initial load
- Country of Origin : USA
- Shank Diameter(Inches) : 1 1/2
- Threads per Inch : 6
- Capacity of Vertical Load (lbs) : 21,000
- Length of Shank(Inches) : 3 3/4
- Inner Diameter(Inches) : 2 7/16/li>
- Head Cross Section Thickness(Inches) : 1 13/32
- Overall Length(Inches) : 8 13/16
- Ultimate Strength (lbs) : 105000
