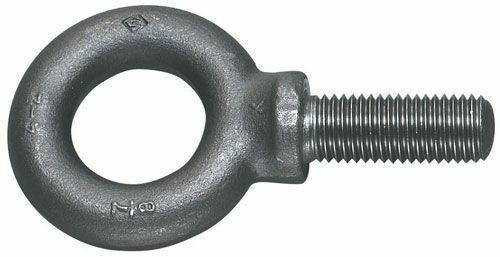

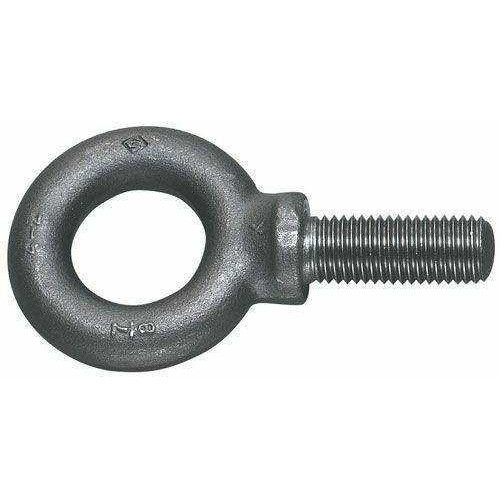

1 1/8" Williams Shoulder Eye Bolt - EB-31T

The EB-31T 1 1/8" Williams Shoulder Eye Bolt comes with the Williams Industrial Brands Limited lifetime warranty.

Shoulder Eye Bolt - 1-1/8"

Features

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
• Each lot is tested and inspected to insure conformance to specifications
• Available with UNC Class 2A thread only
• Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
• Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially A steel washer or spacer may be required for proper seating
• To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable Tightness and seating must be checked after initial load
• Country of Origin : USA
• Shank Diameter(Inches) : 1 1/8
• Threads per Inch : 7
• Length of Shank(Inches) : 2 3/4
• Inner Diameter(Inches) : 1 15/16
• Head Cross-Section Thickness(Inches) : 1 1/16
• Overall Length(Inches) : 7 1/2
• Shoulder Width(Inches) : 1 3/4
• Ultimate Strength (lbs) : 60000
