Product Description

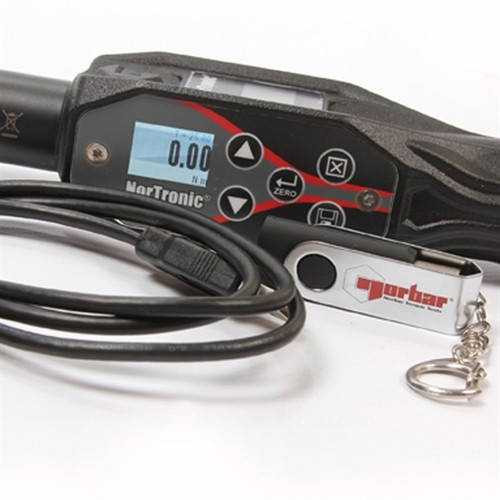

The 1/2 Dr 14.75-147.5 Ft Lbs / 20-200 Nm Norbar NorTronic Electronic Torque Wrench - 43506 is a high-quality precision tool designed for accurate torque measurement. This Electronic Torque Wrench features a digital display for easy reading of torque levels, allowing for precise adjustments within the range of 14.75-147.5 Ft Lbs / 20-200 Nm. Manufactured by Norbar, a trusted industry brand, this torque wrench combines durability and reliability to ensure consistent performance across a variety of applications. This Norbar NorTronic Electronic Torque Wrench is a must-have tool for professionals in the electronic category.
The 1/2" drive electronic torque wrench includes Norbar's Torque Data System software, which allows data to be uploaded manually or sent in real time wirelessly through an optional USB Wireless Adaptor.
Easy to use:
- Two full-color LED displays are positioned at 90º to each other so that the displays can be seen in either the vertical or horizontal plane.
- Only 5 user buttons for ease of use, visual (digits change color), audible, and vibration indications when the target is reached.
- Low-battery warning, Ability to turn off the angle display if not required, 12 Torque units.
- Reading can be displayed in 12 different torque units: Nm, dNm, cNm, kgf m, kgf cm, gfm, lbf ft, lbf in, Ft Lbs, In Lbs, ozf in & In Oz.
Versatility:
- The 1/2" drive Norbar NorTronic is supplied with a robust push-through ratchet Compatible with Norbar’s huge range of spanner end fittings.
- Easy to depress the plunger to remove the ratchet. Ability to enter offset compensation for non-standard end fittings.
- The torque wrench reads correctly for non-standard end fittings. No need to do additional calculations.
Accuracy:
- ±1% accuracy across 20-100% of wrench operating capacity.
- ±2% accuracy across 10-19% of wrench operating capacity.
- Clockwise (CW) and counterclockwise (CCW) angle calibration.
- Supplied with a unique Torque and Angle Calibration Certificate.
Data Analysis:
- Unique TDS (Torque Data System) software is included with the 1/2" drive Norbar NorTronic.
- Enables complete data management and archiving to a PC through seamless data exchange. Two-way data management capability.
- Torque and Angle data can be sent to TDS in real time (or uploaded from memory).
- Multiple targets can be sequenced and linked.
- Tool settings can be configured at PC.
- Data can be transferred by two means: i) USB cable (supplied) ii) USB Wireless Adaptor for your PC (Sold separately)
Part No. 43509: 915MHz USA, Canada, Australia and New Zealand & 43508: 868MHz UK, Europe, Singapore and India. - The 1/2" drive electronic torque wrench features time and date-stamped reading memory storage, up to 3000 readings.
- Enables numerous tightening cycles before requiring data upload to TDS.
Performance:
- IP44 protection against dust and water ingress.
- Protected against dust and sprayed water from all directions. The 1/2" drive electronic torque wrench features a one-piece aluminum handle.
- Rugged and durable Portable, powered by three AA batteries.
- Rechargeable batteries supplied. Robust extruded aluminum case.
Interchangeable Heads Available For This Wrench:
 |
 |
| OPEN ENDS - 16MM SPIGOT | RING ENDS - 16MM SPIGOT |
 |
 |
| RATCHET HEADS - 16MM SPIGOT | FIXED HEADS - 16MM SPIGOT |
Made in England
Other Details
NORBAR Products Warranty: 7.1 The Company warrants that, subject to the other provisions of these Conditions upon delivery, and for a period of 12 months after the date of delivery, the Goods will: a) be of satisfactory quality within the meaning of the Sale of Goods Act 1979; and b) comply in all material respects with the specification for them as set out in the Companys catalogue or other published specification current at the time that the order for the Goods was accepted by the Company. 7.2 The Company will not be liable for a breach of any of the warranties in condition 7.1 unless: a) the Buyer gives written notice of the defect to the Company within 14 days of the time when the Buyer discovers or ought to have discovered the defect; and b) the Buyer returns the defective Goods properly packed, carriage paid to the Companys premises at the address given in condition 1.1. 7.3 The Company will not be liable for a breach of the warranties in condition 7.1 if: a) the Buyer makes any further use of the Goods after giving such notice; or b) the Goods have been misused, mishandled, overloaded, amended, modified or repaired in any way by the Buyer or its customers, or used for any purpose other than that for which they were designed; or c) the defect is due to fair wear and tear or arises because the Buyer or its customer failed to follow the Companys oral or written instructions as to the storage, installation, commissioning, use or maintenance of the Goods or (if there are none) good trade practice. 7.4 Subject to conditions 7.2 and 7.3, if any of the Goods do not conform with any of the warranties in condition 7.1, the Company will at its option repair or replace such Goods (or the defective part of them) or refund the price of such Goods at the pro rata Contract rate. 7.5 If the Company complies with condition 7.4, it will have no further liability for a breach of any of the warranties in clause 7.1 in respect of such Goods. 7.6 Except as provided in condition 7.1, the Company makes no representation or warranty, whether express or implied, as to the quality or fitness for purpose of the Goods and all warranties, conditions and other terms which may be implied by statute or common law are, to the fullest extent permitted by law, excluded from the Contract. 7.7 Nothing in this Contract excludes or limits the liability of the Company for: a) death or personal injury caused by the Companys negligence; or b) under section 2(3) of the Consumer Protection Act 1987; or c) for fraud or fraudulent misrepresentation; or d) for any matter which it would be illegal for the Company to exclude or attempt to exclude its liability.Product Videos
Videos Hide Videos Show Videos
Custom Field
Drive Size 1/2 Inch
Max Ft Lbs 147.5
Max Nm 200
Length 23.25"
Weight Lbs 3.19
Feature Flex Head
Feature Bluetooth
Feature Torque And Angle
Feature Interchangeable Head
Accuracy 1%
Made In UK
