1/2" Dr 5 - 100 ft lbs / 6.7 - 135.5 Nm CDI Digital Torque Checker - 1003-F-DTC

1/2" Dr 5 - 100 ft lbs / 6.7 - 135.5 Nm CDI Digital Torque Checker - 1003-F-DTC

$1,216.26 $521.30
(You save $694.96)
SKU:
1003-F-DTC
UPC:
662459979803
Condition:
New


The CDI 1003-F-DTC Digital Torque Checker has a 1/2" Drive and testes between and English range of 5 - 100 ft lbs and 60 - 1200 In Lbs and Metric range of 6.7 - 135.5 Nm.  This unit is perfect for checking mechanical and digital torque wrenches regularly before use. Simple operation and affordable, to allow convenient mounting close to each departments where torque wrenches are used frequently.

Features:

  • Simple operation enables any torque wrench user to quickly check wrench accuracy
  • Uses 3 AA batteries (Included), LCD displays battery life indicator
  • Large back-lit LCD screen
  • Audio beep on over torque (125% of full scale)
  • 3/8'' Adapter included
  • Accuracy +/- 1%
  • Push Button Mode Select: First peak, Peak Hold, Tracking
  • Units: Ft-Lb, In-Lb & Nm

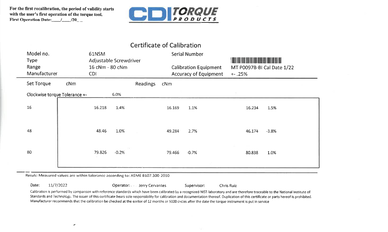

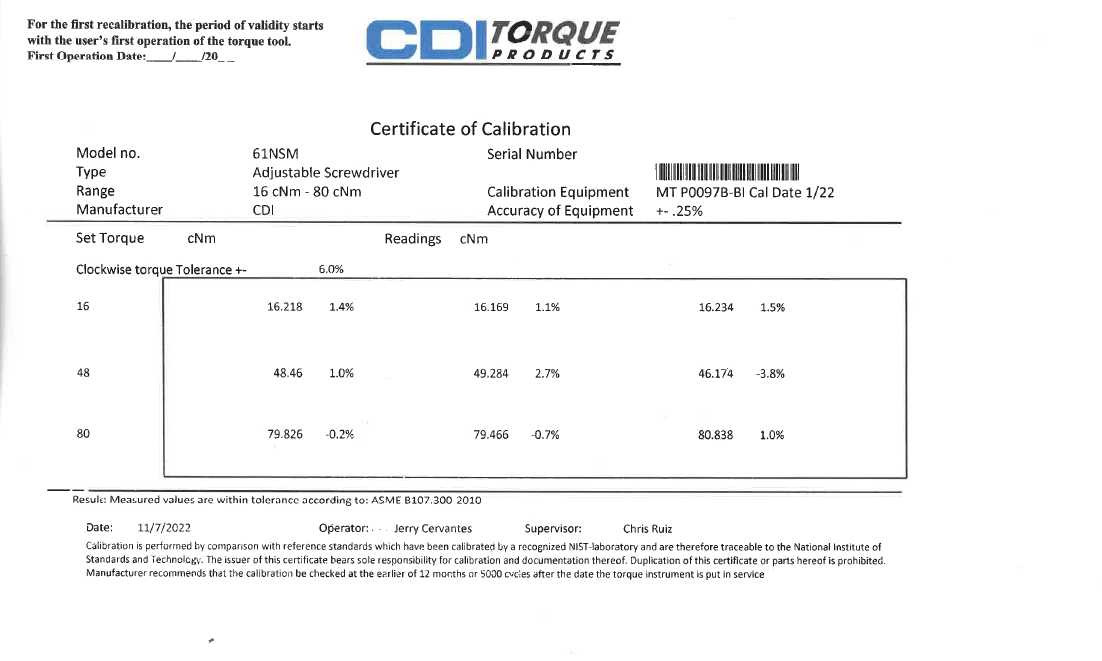

  • Includes Certificate of Calibration
  • Compact design for mounting on any flat surface in horizontal or vertical position
  • CE Approved
  • Overall dimensions are: 4 3/4 x 13 1/2 x 2 3/16


Snap-On Industrial Brands Torque Products Warranty: Snap-on Industrial Brands warrants to the original purchaser of CDI Torque Products that the company’s torque products are free from defects in workmanship and materials. Snap-on Industrial Brands will repair or replace CDI Torque Products which fail to give satisfactory service due to defective workmanship or materials (excluding calibration) for 12 months from the date of original purchase. Snap-on Industrial Brands warrants “initial, out of box calibration” of each new, unused CDI Torque Product. Repair, replacement or recalibration shall be at the election and expense of Snap-on Industrial Brands, and is your exclusive remedy in place of all other rights and remedies. Products must be returned with proof of purchase, freight prepaid, to a CDI Torque Products repair center for warranty service. Snap-on Industrial Brands will repair or replace Williams’ Torque Multipliers which fail to give satisfactory service due to defective workmanship or material for 90 days from the date of original purchase. Snap-on Industrial Brands does not provide any warranty for products subjected to abnormal use. Abnormal use includes misuse, accident, modification, unreasonable use, neglect, lack of maintenance, or use after the tool is significantly worn.
Drive Size:
1/2"
English Range:
5 - 100 Ft Lbs
English Range:
60-1200 In Lbs
Metric Range:
6.7 - 135.5 Nm
Accuracy:
± 1%
Scale:
Ft Lbs
Scale:
In Lbs
Scale:
Nm
Max Ft Lbs:
0-100 Ft Lbs
Max In Lbs:
1001 In Lbs+
Max Nm:
56.6-135 Nm
