Product Description

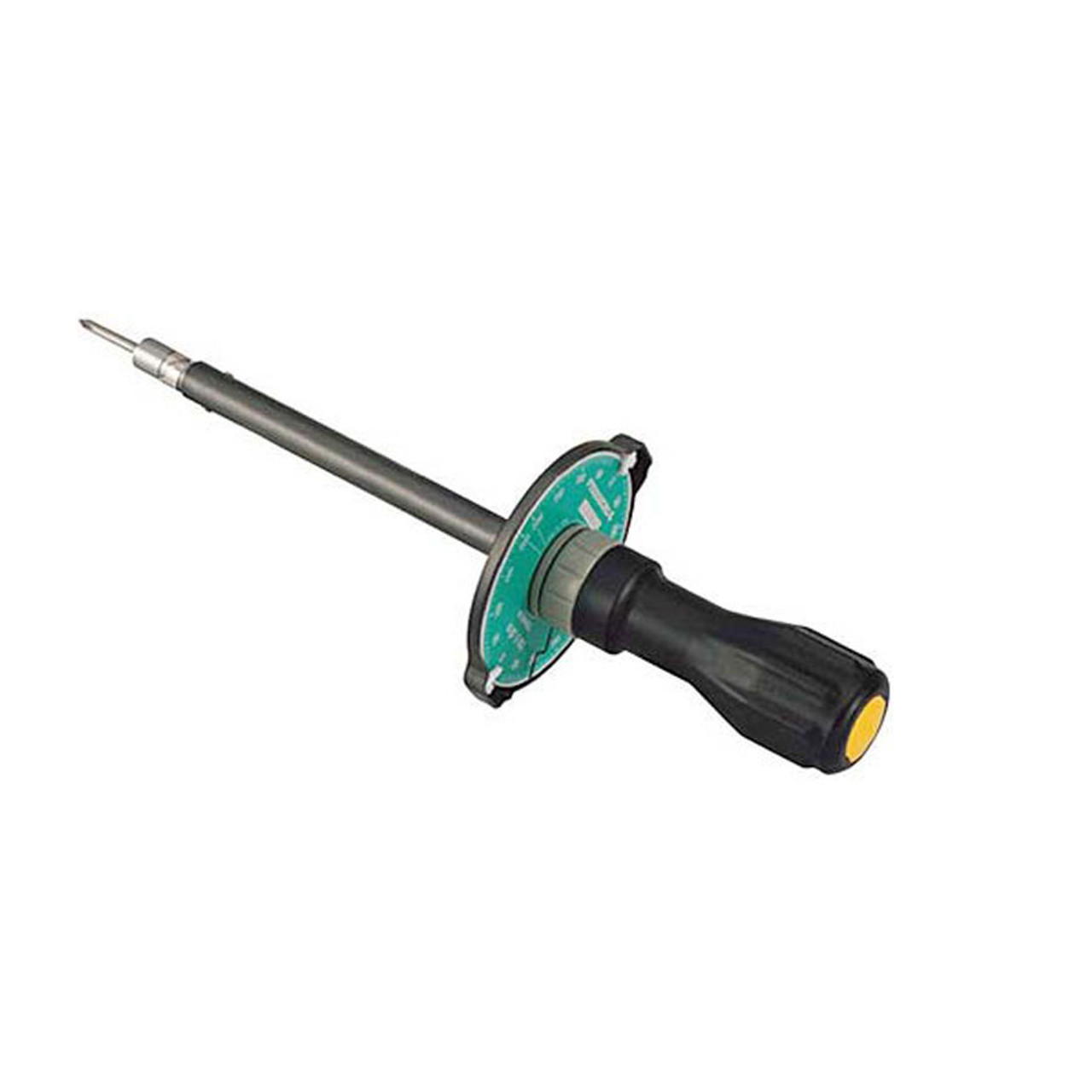

The Tohnichi 2FTD2-S dial torque screwdriver accepts universal 1/4-inch drive bits and has an English range of 0.3-2 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
| Accuracy ± 3% | |||||||||||||
| METRIC MODEL | 2FTD2-S | ||||||||||||
| TORQUE RANGE [gf . cm/kgf . cm] | MIN.~MAX. | 0.3~2 | |||||||||||
| GRAD. | 0.05 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M2 | |||||||||||
| TAPPING SCREW | M1.8)M2 | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 152 | ||||||||||
| GRIP | D1 | 20 | |||||||||||
| BODY | D2 | 90 | |||||||||||
| D3 | 6 | ||||||||||||
| D4 | 9 | ||||||||||||
| L1 | 85 | ||||||||||||
| L2 | 67 | ||||||||||||
| WEIGHT [kg] | 0.14 | ||||||||||||
| SCALE PLATE COLOR | PURPLE | ||||||||||||
Made in Japan
The Tohnichi 2FTD2-S Dial Torque Driver is engineered for precision and reliability, making it the perfect tool for any professional or DIY enthusiast working with delicate fasteners. With a torque range of 0.3-2 In Lbs, it provides the accuracy and control needed for the most sensitive applications.
This top-tier torque screwdriver features a direct reading mechanism that makes it essential for inspection tasks. Its robust construction and thoughtful design ensure lasting durability, while the user-friendly aspects cater to both novice and experienced users.
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3% for dependable results.
- Bi-Directional Loading for versatile use.
- Brightly Colored Contrasting Scale for Easy Reading.
- Protected Main Pointer to withstand use.
- Easily Adjust Zero Point with Press and Rotate Scale Plate.
- Memory pointer captures peak torque for reference.
- Black Resin Comfort Grip for enhanced usability.
- Accepts standard 1/4" hex root size bits (sold separately).
- Includes Certificate of Calibration for peace of mind.
- Applicable for international use, compliant with ISO 6789 Type I Class D calibration procedures.
The Tohnichi 2FTD2-S is a must-have tool for anyone requiring precision in fastening. Made in Japan, it's reliable, accurate, and ready to meet your needs.
