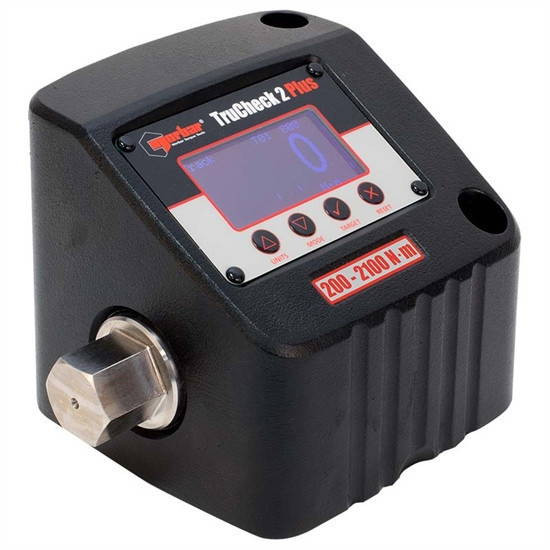

1" Dr 147-1,548 Ft Lbs / 200-2,100 Nm Norbar TruCheck 2 Plus Digital Torque Tester - 43533

1" Dr 147-1,548 Ft Lbs / 200-2,100 Nm Norbar TruCheck 2 Plus Digital Torque Tester - 43533

$2,208.54 $2,355.77
(You save $147.23)
Model #
43533
Condition:
New
Drive Size:
1 Inch
English Range for this tester:
147.6-1,548 Ft Lbs
English Range for this tester:
1770-18586 In Lbs
Metric Range for this tester:
200-2100 Nm
Accuracy:
± 1%
Scale:
Ft Lbs to 1548
Scale:
Nm to 2100
Feature:
Works with pneumatic & electronic torque tools.

Description


The Norbar 43525 TruCheck™ 2 Plus Digital Torque Tester makes it simple to test torque tools between 147.6 - 1,548 Ft Lbs & 1,770 - 18,586 In Lbs and Metric Testing Range of 200 - 2,100 Nm.

With the Norbar 43525, it is possible to save up to fifteen targets. The user can also set target values with tolerances allowing him/her to see when torques are above, below or within the programmed range. This is easily viewable via the LCD display which will change color to indicate how the measured torque relates to the target tolerance. When the reading is within the target tolerance the display will turn green, a red display indicates that the reading is above the programmed tolerance, while yellow means that it is below the target tolerance.

Norbar TruCheck™ 2 Plus Torque Measurement Tools Key Features

  • Accuracy: ±1% of the torque reading

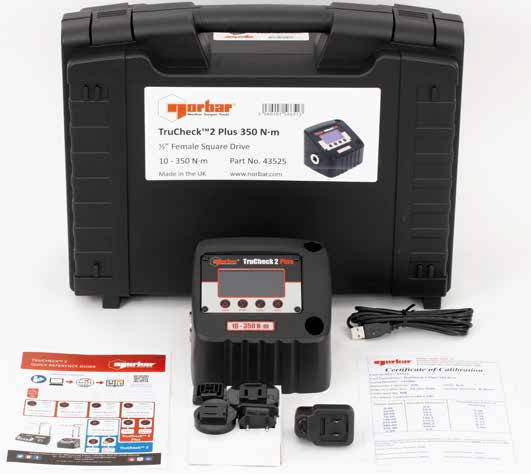

  • Supplied with a traceable calibration certificate

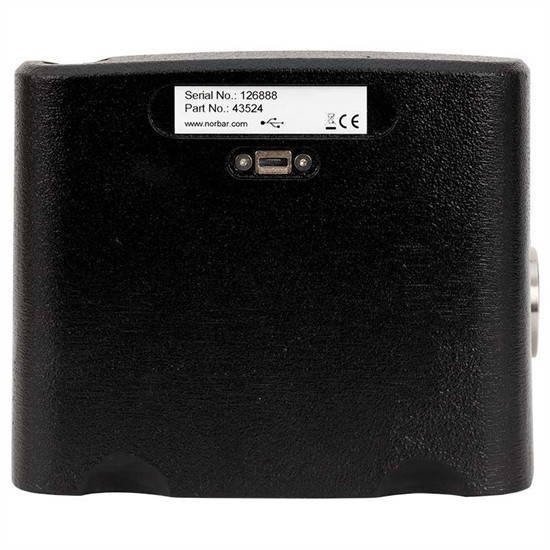

  • Integrated Micro USB 2.0 port: powers the unit while transferring data
  • Save up to fifteen targets
  • Set targets with tolerances
  • The LCD display changes color to indicate when torque measurements are within, above or below set tolerances
    • Green = within target tolerance
    • Red = above target tolerance
    • Yellow = below target tolerance
  • 10 Selectable torque units of measurement
  • Twelve languages
  • Modes
    • Click mode: senses and holds the first peak of torque
    • Dial mode: senses and holds the highest peak of torque
    • Track mode: senses and displays the live torque input but does not hold any reading
    • Track mode can be used for zeroing the TruCheck™ 2 Plus Tools
  • Suitable for monitoring the performance of torque wrenches and keeping torque tools in peak condition

Made in the UK

The Norbar 43525 TruCheck 2 Plus Digital Torque Tester can be used with the Norbar Power Tool Test Fixture to test pneumatic and electric torque tools.

These power tool test fixtures incorporate a joint simulation rundown assembly, base plate, reaction plate, drive adaptors and a reaction adapter to be used in conjunction with a TruCheck 2 Plus. These joint simulators are not recommended for use with impact or impulse type wrenches.


Made in the UK

Warranty Information

NORBAR Products Warranty: 7.1 The Company warrants that, subject to the other provisions of these Conditions upon delivery, and for a period of 12 months after the date of delivery, the Goods will: a) be of satisfactory quality within the meaning of the Sale of Goods Act 1979; and b) comply in all material respects with the specification for them as set out in the Company’s catalogue or other published specification current at the time that the order for the Goods was accepted by the Company. 7.2 The Company will not be liable for a breach of any of the warranties in condition 7.1 unless: a) the Buyer gives written notice of the defect to the Company within 14 days of the time when the Buyer discovers or ought to have discovered the defect; and b) the Buyer returns the defective Goods properly packed, carriage paid to the Company’s premises at the address given in condition 1.1. 7.3 The Company will not be liable for a breach of the warranties in condition 7.1 if: a) the Buyer makes any further use of the Goods after giving such notice; or b) the Goods have been misused, mishandled, overloaded, amended, modified or repaired in any way by the Buyer or its customers, or used for any purpose other than that for which they were designed; or c) the defect is due to fair wear and tear or arises because the Buyer or its customer failed to follow the Company’s oral or written instructions as to the storage, installation, commissioning, use or maintenance of the Goods or (if there are none) good trade practice. 7.4 Subject to conditions 7.2 and 7.3, if any of the Goods do not conform with any of the warranties in condition 7.1, the Company will at its option repair or replace such Goods (or the defective part of them) or refund the price of such Goods at the pro rata Contract rate. 7.5 If the Company complies with condition 7.4, it will have no further liability for a breach of any of the warranties in clause 7.1 in respect of such Goods. 7.6 Except as provided in condition 7.1, the Company makes no representation or warranty, whether express or implied, as to the quality or fitness for purpose of the Goods and all warranties, conditions and other terms which may be implied by statute or common law are, to the fullest extent permitted by law, excluded from the Contract. 7.7 Nothing in this Contract excludes or limits the liability of the Company for: a) death or personal injury caused by the Company’s negligence; or b) under section 2(3) of the Consumer Protection Act 1987; or c) for fraud or fraudulent misrepresentation; or d) for any matter which it would be illegal for the Company to exclude or attempt to exclude its liability.
