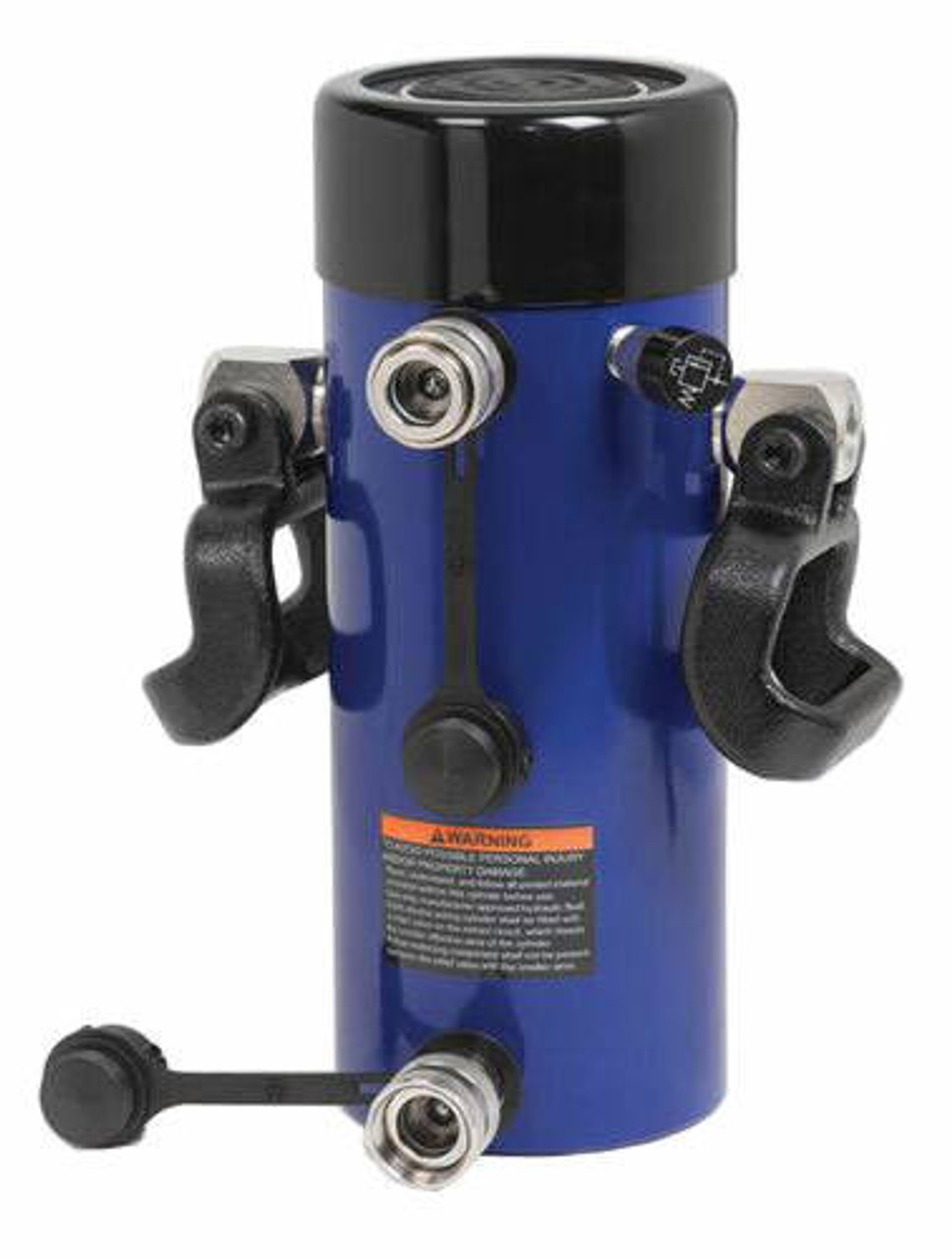

13.19" Stroke Williams 55T Double-Act Cylinder - 6CD55T13
Now:$3,302.42
MSRP:$7,458.05
(You save $4,155.63 )
- SKU:JHW6CD55T13
- UPC:662459946089
- Condition:New
- Scale:55 Ton
Product Description
The 6CD55T13 13.19" Stroke Williams 55T Double-Act Cylinder - 6CD55T13 comes with the Williams Industrial Brands Limited lifetime warranty.
55T Double Action Cylinder 13" Str
Features
- Rod wiper seals out dirt and contamination
- High strength steel construction from gun drilled solid bar
- High fl ow 3/8" NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 55
- Stroke (in) : 13.19
- Maximum Cylinder Capacity Push (ton) : 55.7
- Maximum Cylinder Capacity Pull (ton) : 16.2
- Cylinder Effective Area Push (in2) : 10.99
- Cylinder Effective Area Pull (in2) : 3.19
- Oil Capacity Push (in3) : 144.94
- Oil Capacity Pull (in) : 42.11
- Collapsed Height A (in) : 20.04
- Extended Height B (in) : 33.23
- Cylinder Bore Dia. C (in) : 3.74
- Outside Dia. D (in) : 5.00
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. E (in) | Saddle Dia. F (in) | Base to Adv. Port G (in) | Top to Return Port H (in) | Plunger Internal Thread J (in) | Plunger Thread Length K (in) | Collar Thread L (in) | Collar Thread Length M (in) | Base Mounting Hole Bolt Circle X (in) | Base Mounting Hole Thread Y (in) | Base Mounting Hole Thread Depth Z (in) | Weight (lbs) |
| 3.14 | 2.76 | 1.14 | 2.87 | 1 - 12 | 0.98 | 5 - 12 | 1.73 | N/A | N/A | N/A | 104.0 |
