Product Description

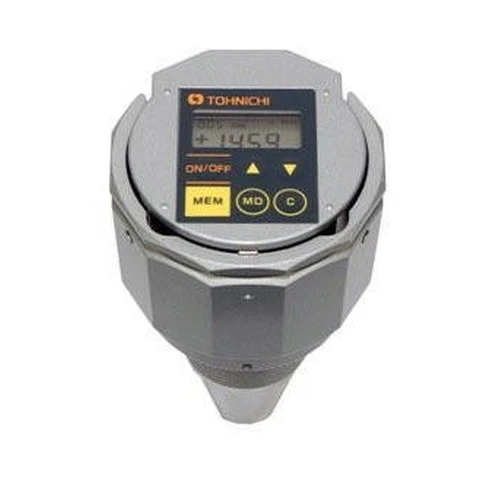

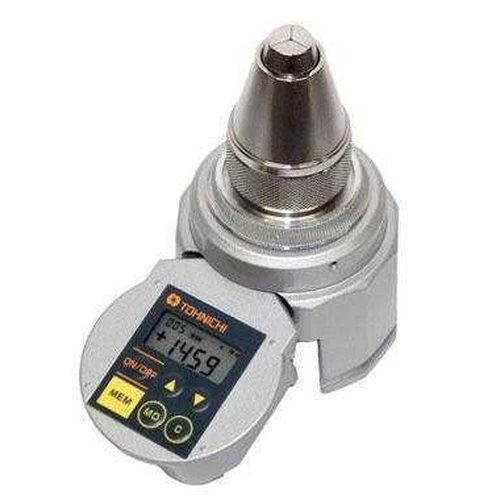

The Tohnichi BTGE50CN-G digital torque gauge has a pin vise holder and an English range of 15-70 in oz or 1-4.4 in lbs and a metric range of 10-50 cNm or 1-5 kgf.cm.

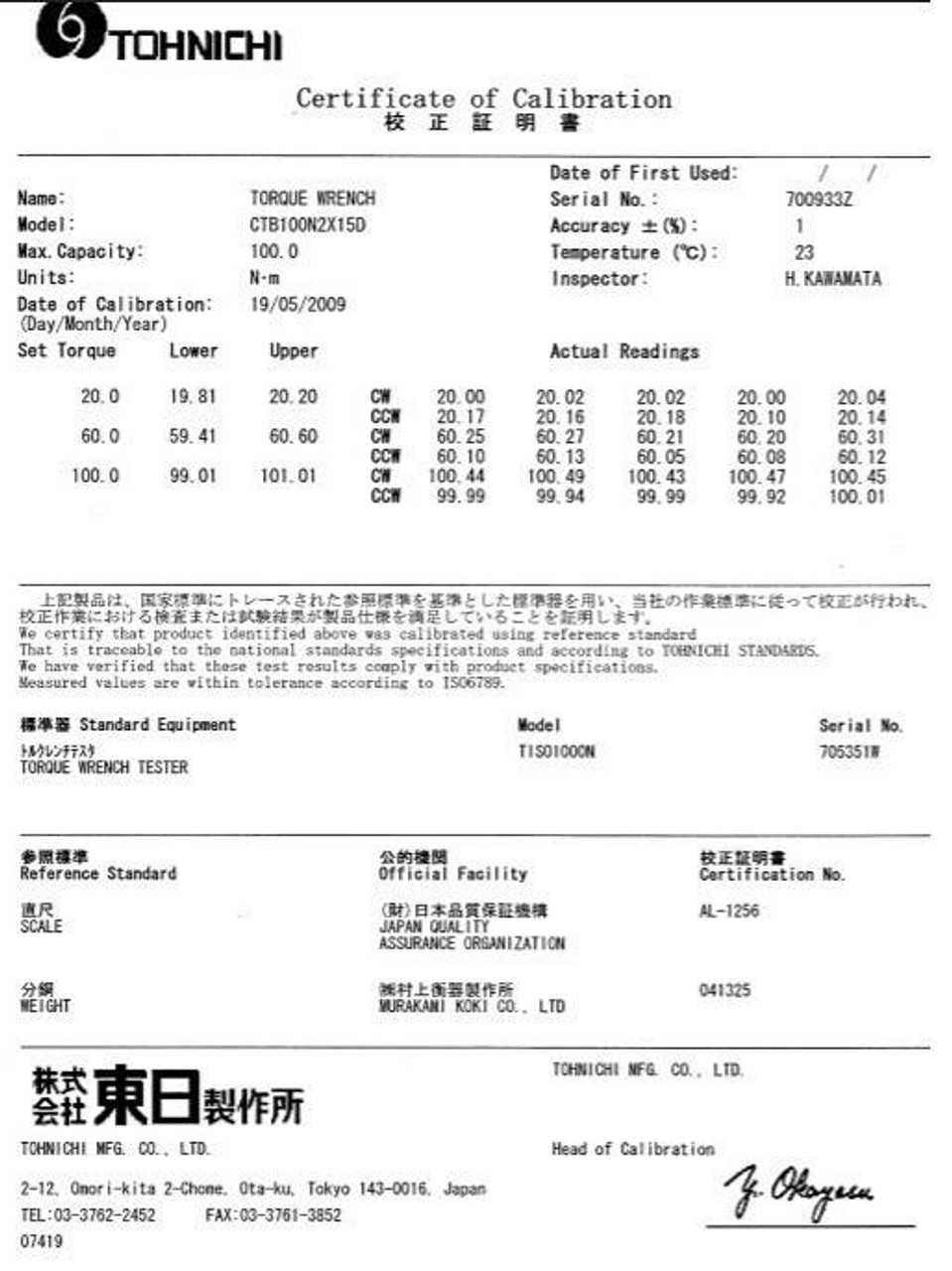

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Features:
- Digital torque gauge with built-in digital display.
- Mini-size handheld torque gauge.
- Flip-up display can be adjusted for optimal reading and accommodates various testing positions.
- Built-in display gives user-friendliness and convenience of use.
- Ideal for torque measurement for precision machinery, electronic devices, and various assembly components.
- Physical stopper prevents accidental over-loading.
- Up to 999 readings can be saved with computing function to display max/min/meantime values.
- Coin-type lithium battery (CR2450) allows 10-hour continuous operation.
- USB cable can be used for data transfer to PC.
- Global design.
- With CE mark, and it is for international use including the EU region.
- Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
*Note: Excel® is a registered trademark of the Microsoft Corporation.
| DIMENSION | OVERALL LENGTH | Ｌ' | 130mm / 5.11" | ||||||
| HEIGHT | H | 130mm / 5.11" | |||||||
| CHUCK GRIP | φd | 1ï½Âž8.5 | |||||||
| DIAMETER | φD | 75mm / 2.95" | |||||||
| BODY | „“ 1 | 72mm / 2.83" | |||||||
| HOLDER DIA. | Φd1 | 46mm / 1.81 | |||||||
| WEIGHT | 0.65 kg /1.43 lbs | ||||||||
Made In Japan
Warranty
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Videos Hide Videos Show Videos
Custom Field
Drive Size Pin Vice
Range In Lbs 1 - 4.4
Range In Oz 15 - 70
Range cNm 10 - 50
Length 5.1"
Weight 1.43 Lbs
Accuracy 1%
Made In Japan
