1/4" Dr  6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G
1/4" Dr  6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G
1/4" Dr  6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G
1/4" Dr  6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G

1/4" Dr 6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G

Now:$1,763.07
MSRP:$1,820.94
(You save $57.88 )
  • SKU:BTGE20CN-G
  • Condition:New
  • Drive Size:Pin Vice
  • Range In Lbs:.4 - 1.7
  • Range In Oz:6 - 28
  • Range cNm:4 - 20
  • Length:5.1"
  • Weight:1.43 Lbs
  • Accuracy:1%
  • Made In:Japan
Product Description

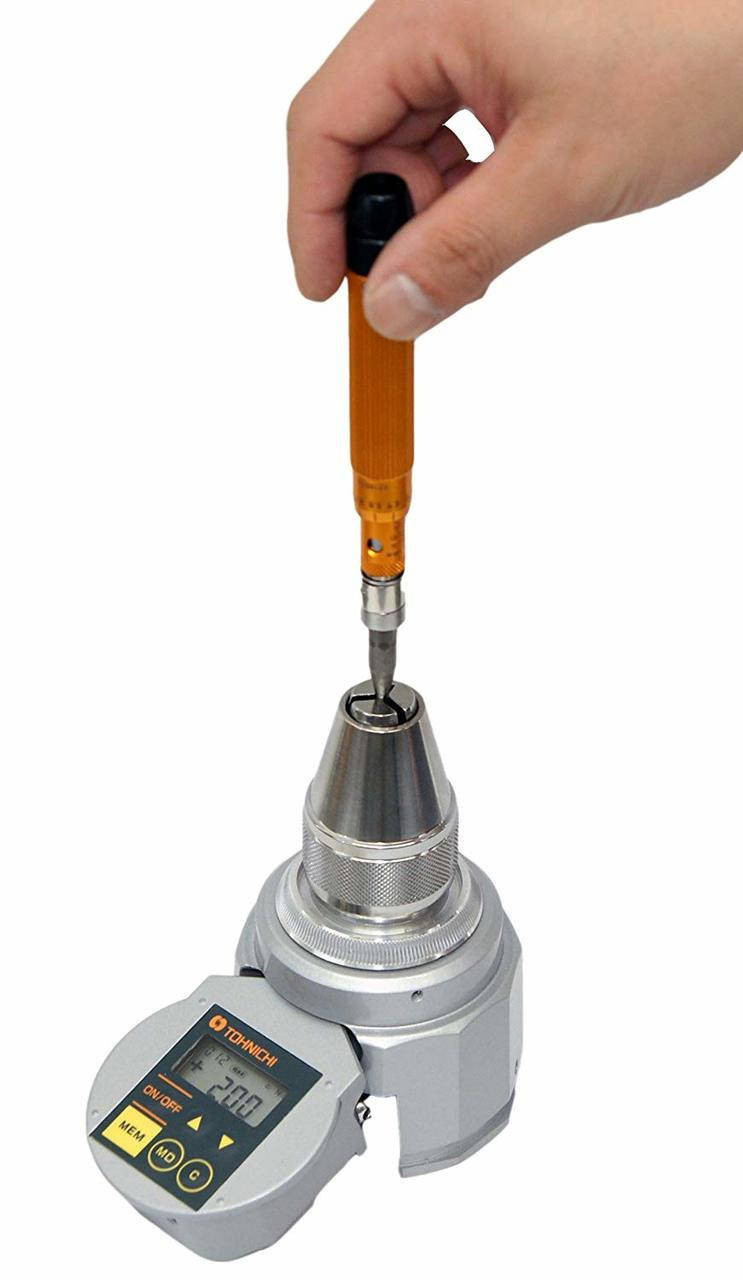

The Tohnichi BTGE20CN-G Digital Torque Gauge has a Pin Vice Holder and an English range of 6 - 28 in oz or 0.4 - 1.7 in lbs and a Metric Range of 4 - 20 cNm or .4 - 2 kgf.cm.

Features:

  • Digital torque gauge with built-in digital display.
  • Mini-size handheld torque gauge.
  • Flip-up display can be adjusted for optimal reading and accommodates various testing positions.
  • Built-in display gives user-friendliness and convenience of use.
  • Ideal for torque measurement for precision machinery, electronic devices, and various assembly components.
  • Physical stopper prevents accidental over-loading.
  • Up to 999 readings can be saved with computing function to display max/min/meantime values.
  • Coin-type lithium battery (CR2450) allows 10-hour continuous operation.
  • USB cable can be used for data transfer to PC.
  • Global design.
  • With CE mark, and it is for international use including the EU region.
  • Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
    *Note: Excel® is a registered trademark of the Microsoft Corporation.
    DIMENSION

  OVERALL LENGTH    L'   130mm / 5.11"
  HEIGHT   H   130mm / 5.11"
  CHUCK GRIP   φd   1~8.5
  DIAMETER   φD   75mm / 2.95"
  BODY   „“ 1   72mm / 2.83"
  HOLDER DIA.   Φd1   46mm / 1.81
       WEIGHT   0.65 kg /1.43 lbs


  Made In Japan
