Product Description
The Interchangeable Head Preset Torque Wrench - CSP1.5N4x8D
The Tohnichi 1.5N4x8D preset torque wrench is compatible with interchangeable heads and features an English range of 2.7-13.2 in lbs.
Features:
- Interchangeable Head Wrench
- No External Scale, Torque Value Set Using Key & Tester

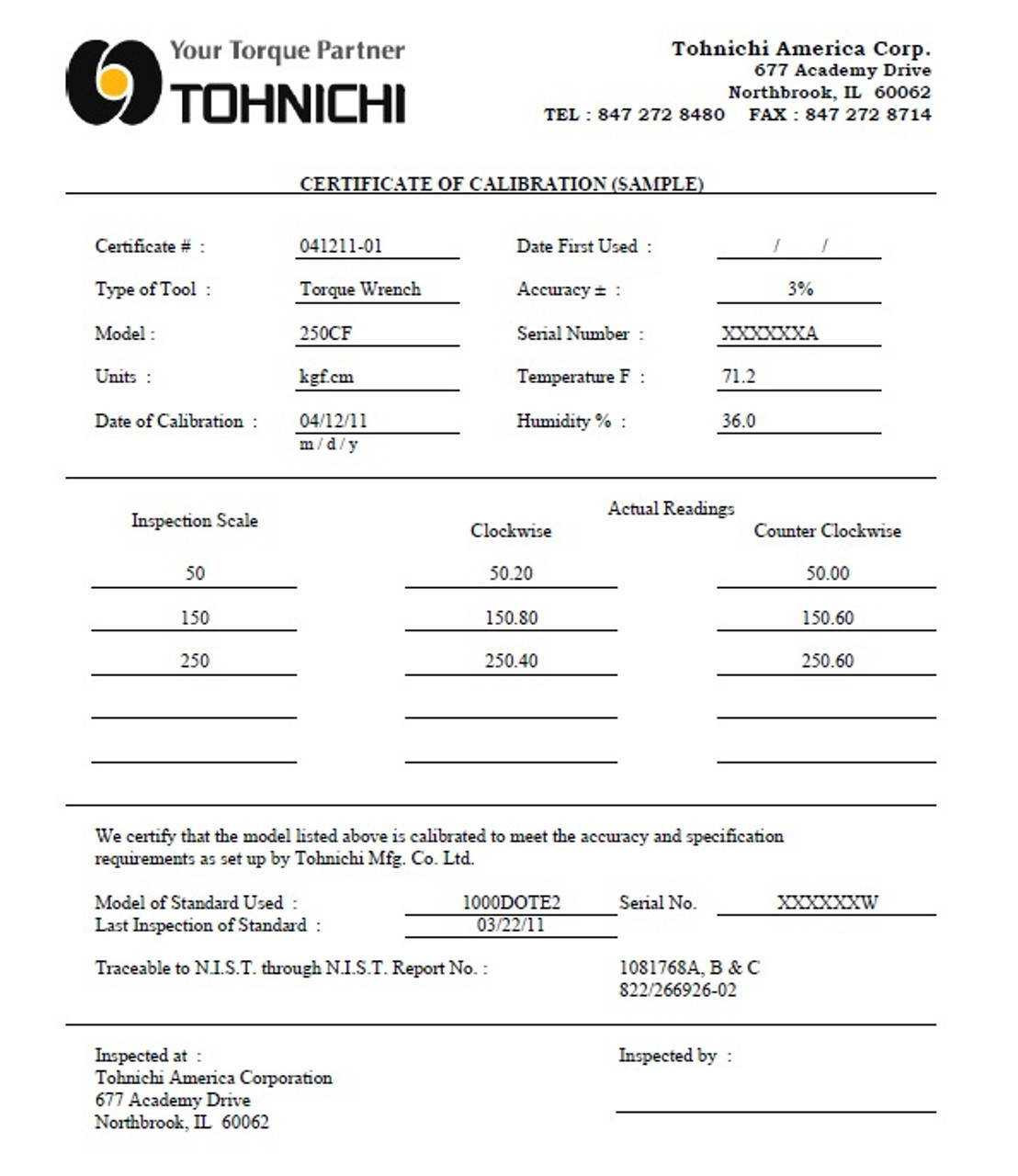

- Certificate of Calibration included.
| Model | Torque Range | Hand Force at Max Torque | Dimensions [mm] | Weight approx. | Tohnichi Head Size | Handle Color/Style | Adjusting Key | ||||||
| d3 | |||||||||||||
| Min.-Max. | Effective Length | Overall Length | Body | ||||||||||
| S.I. | American | N | L | L' | m | n | d | D | kg | Selection | |||
| CSP1.5N4x8D | N.m 0.3-1.5 |
in.lbs 3-13 |
11 | 118 | 130 | 19 | 9.2 | 15 | 29 | 0.2 | 8D | Blue Rubber | #931 |
Note:
- Overall length does not include interchangeable head.
- A torque wrench tester and adjusting key are required to set torque.
Interchangeable Heads Available For This Wrench:
 |
 |
 |
 |
Made In Japan
Warranty
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Custom Field
Type Preset
Wrench can be preset between 2.7 - 13.2 In Lbs
Wrench can be preset between 0.3 - 1.5Nm
Max In Lbs 13.2
Max Nm 1.5
Length 5.1
