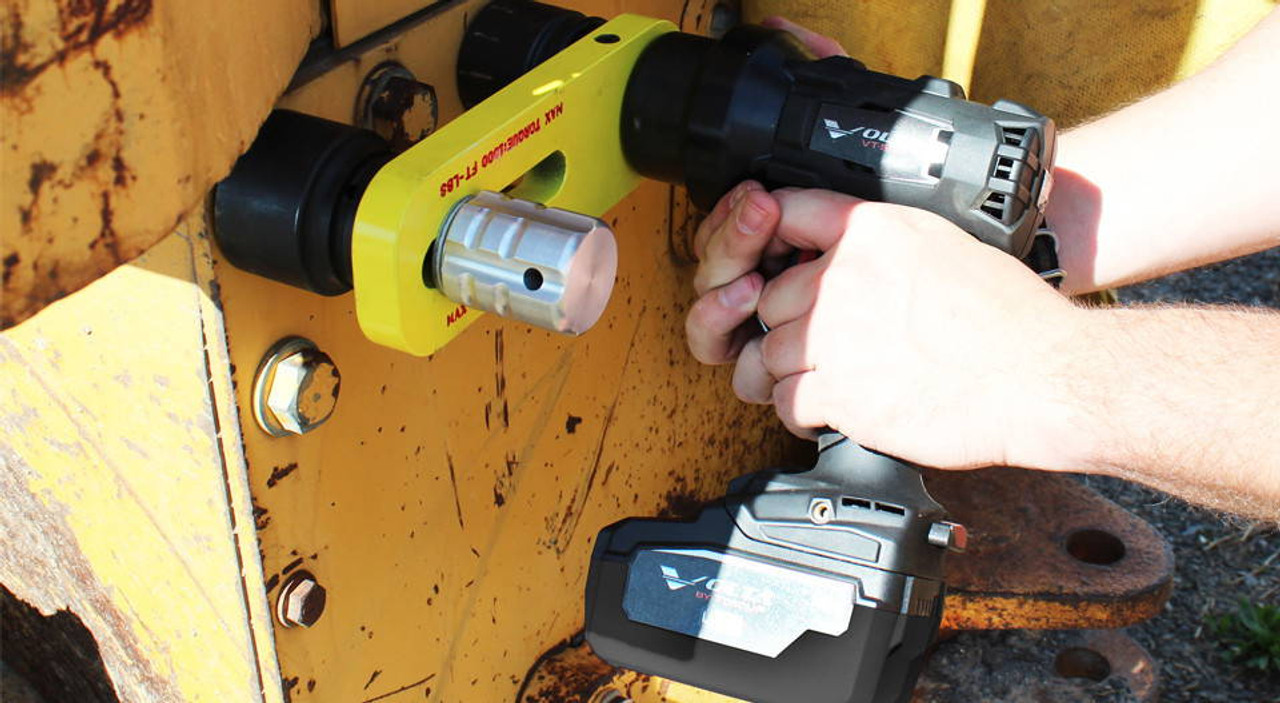

The TorcUP Volta VT-500 (Gun Only) has a 3/4" Drive and an English Torque range of 120 - 500 Ft Lbs or 160 - 670 Nm.
With a precision-engineered brushless motor that delivers efficiency, longer run-time and extended durability, the TorcUP VT-500 Volta offers configurable torque range capabilities ensuring ease of use and repeatability. The 3/4" drive battery torque wrench internal brushless technology also allows the wrench to run cooler, providing bolting application safety and versatility in harsh environments. Additional features include digital display, torque memory settings, automatic reaction arm release and ft/lb or Nm settings.
The TorcUP VOLTA VT-500 has been engineered to master any application effortlessly. Fully charged in under 60 minutes, the VOLTA’s lithium battery provides enough power to take on hundreds of fastenings with no hoses or cords to limit your reach. Within the VOLTA is a digital motor vectoring system that provides accurate and repeatable torque throughout each model’s full range capabilities. The VOLTA exemplifies the durability, reliability and safety that has embodied every industrial wrench crafted by TorcUP since the company’s founding in 1996.
Battery Torque Wrench Features:
- Made in the USA
- Every Unit Calibrated In ISO17025 Laboratory
- Alloy Steel Square Drive
- Ergonomic Slip-Resistant Pistol Grip
- High-Efficiency Brushless Motor

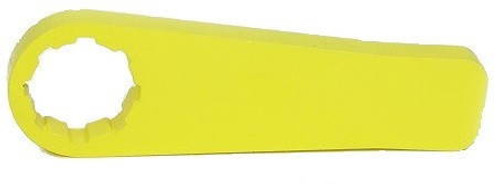

- Cast Reaction Arm
- Internal Gear Drive
- Soft-Start Trigger
|MODEL #||VOLTA 500KIT|
|Min. Torque (Ft/Lbs)||120|
|Max. Torque (Ft/Lbs)||500|
|Min. Torque (Nm)||160|
|Max. Torque (Nm)||670|
|Weight w/o Arm & Battery||8.3 lbs / 3.8 kg|
|Weight w/ Arm & Battery||10.4 lbs / 4.7 kg|
|RPM @ Min. Torque||12|
|RPM @Max Torque||20|
|Diameter||2.56” / 65.0mm|
|Length||10.97” / 278.6mm|
|Height||8.86” / 225.0mm|
|Requirements||Charger Requirements: 110 - 120 V (50-60 Hz)
and 230 - 240 V (50-60 Hz)
*Lead Time: 3-6 Weeks
*Volta Lithium Ion 8.0 Ah Rechargeable Batteries cannot be shipped by air.
