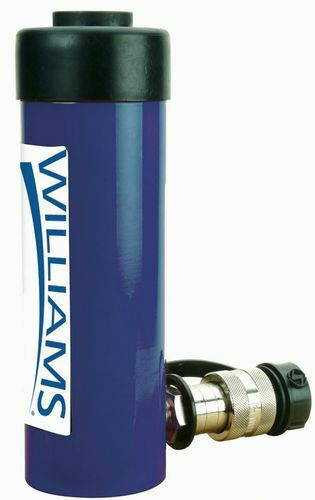

3.98" Stroke Williams 15T Single Acting Cylinders - 6C15T04

The 6C15T04 3.98" Stroke Williams 15T Single Acting Cylinders - 6C15T04 comes with the Williams Industrial Brands Limited lifetime warranty.

15T Single Acting Cylinder 4''

Features

• 39 models
• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fi xture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High fl ow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 15
• Stroke (in) : 3.98
• Cylinder Effective Area (in2) : 3.14
• Pressure at Capacity (psi) : 9,550
• Oil Capacity (in3) : 12.50
• Collapsed Height A (in) : 7.87
• Extended Height B (in) : 11.85
• Cylinder Bore Dia. C (in) : 2.00
• Outside Dia. D (in) : 2.75
• Plunger Dia. E (in) : 1.63
• Saddle Dia. F (in) : 1.50
• Base to Inlet Port G (in) : 0.98
• Collar Thread H (in) : 2 3/4 -16
• Collar Thread Length L (in) : 1.18
• Plunger Internal Thread J (in) : 1"-8UNC
• Plunger Thread Length K(in) : 0.98
• Base Mounting Hole Bolt Circle X (in) : 1.88
• Base Mounting Hole Thread Y (in) : 3/8"-16UNC
• Base Mounting Hole Thread Depth Z (in) : 0.51
