Product Description

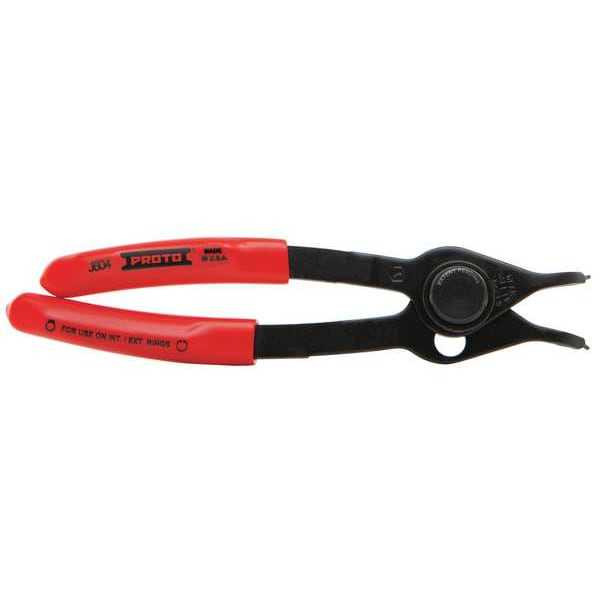

5-7/8" Proto Retaining Ring Plier Fixed Tip - J604
5-7/8" Proto Retaining Ring Plier Fixed Tip
Features
- Convenient blow-mold carrying case includes storage for spare rings
- Patented push button release for fast conversion from internal to external configuration
- Precision Ground tips for better fit, retention, and safety
- Double-Chamber air cushion grip for comfortable hold
Specifications
- For Bore Dia. (in): 5/8 in to 1
- Tip Dia. (in): 0.047
- For Shaft Dia. (in): 11/16 - 7/8
- Overall Length (in): 5 3/4
- For Minimum Bore Diameter (in): 5/8
- For Minimum Shaft Diameter (in): 11/16
- Tip Diameter (in): 0.047
- For Maximum Bore Diameter (in): 1
- For Maximum Shaft Diameter (in): 7/8
- Item: Retaining Ring Plier
- Plier Product Group: Pliers
- Plier Item: Retaining Ring Pliers
- Plier Style: Convertible
- Tip Angle: 45 Degrees
- Tip Type: Fixed
- Includes: Blow-Mold Carrying Case
- Standards: ASME B107.500-2010
- For Use With: Retaining Rings
- Features: Double-Chamber Air Cushion Grip, Precision Ground Tips
- Non-Sparking: No
- For Ring Type: External, Internal
- Replaceable Tips: No
- Plier Type: Retaining Ring Pliers
- Conversion Mechanism: Push Button Release
- Weight (lbs): 0.15
- Jaw Opening Type: Manual
- Grip Style: Standard Cushion
- Tip Shape: Round
- Country of Origin: United States
Other Details
Proto Torque Products Warranty: Torque Wrenches, Torque Multipliers and Torque Testers are warranted for one year, except for calibration which is warranted for ninety (90) days from date of purchase. Torque products can be repaired and recalibrated for a nominal charge at any Proto Authorized repair center or any other such location as may be designated by Proto. Defects in material or workmanship will be repaired or replaced at no cost: all other repairs will be at a nominal charge. Torque products are precise measuring devices that require care in handling. Proto recommends that all torque wrenches be recalibrated once a year or more, depending on usage. For torque tools in need of repair and/or calibration, products may be dropped off at any national DEWALT Service Center or packed and shipped directly to one of our three Torque Service Centers: West Coast: Factory Service Center 1015 North Market Blvd #2 Sacramento, CA 95834 (916) 419-7259 East Coast: Factory Service Center 6115 Jimmy Carter Blvd Norcross, GA 30071 (770) 246-1710 Central Region: Factory Service Center 10245 W Little York Road Houston, TX 77040 (713) 466-1194Product Videos
Custom Field
Type Retaining Ring
