Product Description

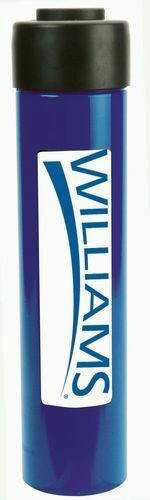

The 6C10T06 5.94" Stroke Williams 10T Single Acting Cylinder - 6C10T06 comes with the Williams Industrial Brands Limited lifetime warranty.
Features
- Internal plunger threads
- Snap in grooved saddles
- Rod wiper seals out dirt and contamination
- Collar fixture threads
- Two base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High fl ow 3/8" NPTF couplers
- Collar thread protector
- One piece high grade alloy bearing for side load protection and long life
- Polyurethane cup seal provides optimum performance
- Industrial hard chrome plated ram helps prevent rust and corrosion
- Solid steel cylinder body
- Heavy duty return spring provides quicker retraction
- Ideal for lifting and pressing
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 10
- Stroke (in) : 5.94
- Cylinder Effective Area (in2) : 2.24
- Pressure at Capacity (psi) : 8,930
- Oil Capacity (in3) : 13.31
- Collapsed Height A (in) : 9.84
- Extended Height B (in) : 15.78
- Cylinder Bore Dia. C (in) : 1.69
- Outside Dia. D (in) : 2.26
- Plunger Dia. E (in) : 1.49
- Saddle Dia. F (in) : 1.38
- Base to Inlet Port (in) : 0.77
- Collar Thread (in) : 2 1/4 -14
- Collar Thread Length (in) : 1.30
- Plunger Internal Thread (in) : 1"-8UNC
- Plunger Thread Length (in) : 0.279
- Base Mounting Hole Bolt Circle (in) : 1.56
- Base Mounting Hole Thread (in) : 5/16" - 18UNC
- Base Mounting Hole Thread Depth (in) : 0.55
