Product Description

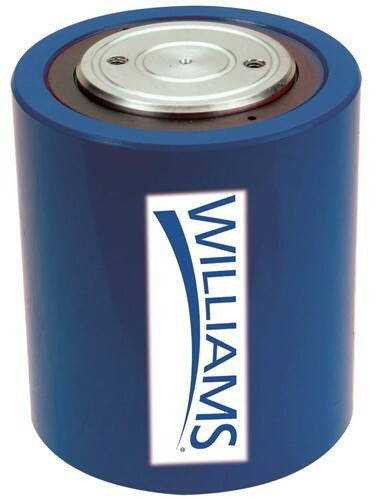

The 6CL50T02 50 Ton Williams Low Profile Cylinder - 6CL50T02 comes with the Williams Industrial Brands Limited lifetime warranty.
Low Profile Cylinder.
Features
- Compact design for use in confined spaces
- Rod wiper helps seal out dirt and contamination
- Specially designed return spring ensures a quick retraction and extends the life of the spring
- Industrial hard chrome plated ram helps prevent scratching and corrosion
- Plunger end is grooved to reduce load slippage
- Includes high flow ball coupler and dust cap
- Coupler is tilted upward for added clearance
- Maximum working pressure: 10,000 psi/700 bar
- Cylinder Capacity: 50 tons
- Stroke: 2.36 in.
- Cylinder Effective Area: 9.87 in2
- Internal Pressure at Capacity: 10,132 psi
- Oil Capacity: 23.29 in3
- Collapsed Height: 4.8 in.
- Extended Height: 7.17 in.
- Outside Dia.: 3.54 in.
- Cylinder Bore Dia.: 4.88 in.
- Plunger Dia.: 2.76 in.
- Plunger Mounting:
- Bolt Circle: 1.56 in.
- Thread: M5 MM
- Thread Depth: 0.32 in.
- Country of Origin: Taiwan
