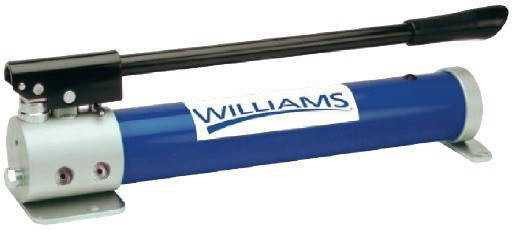

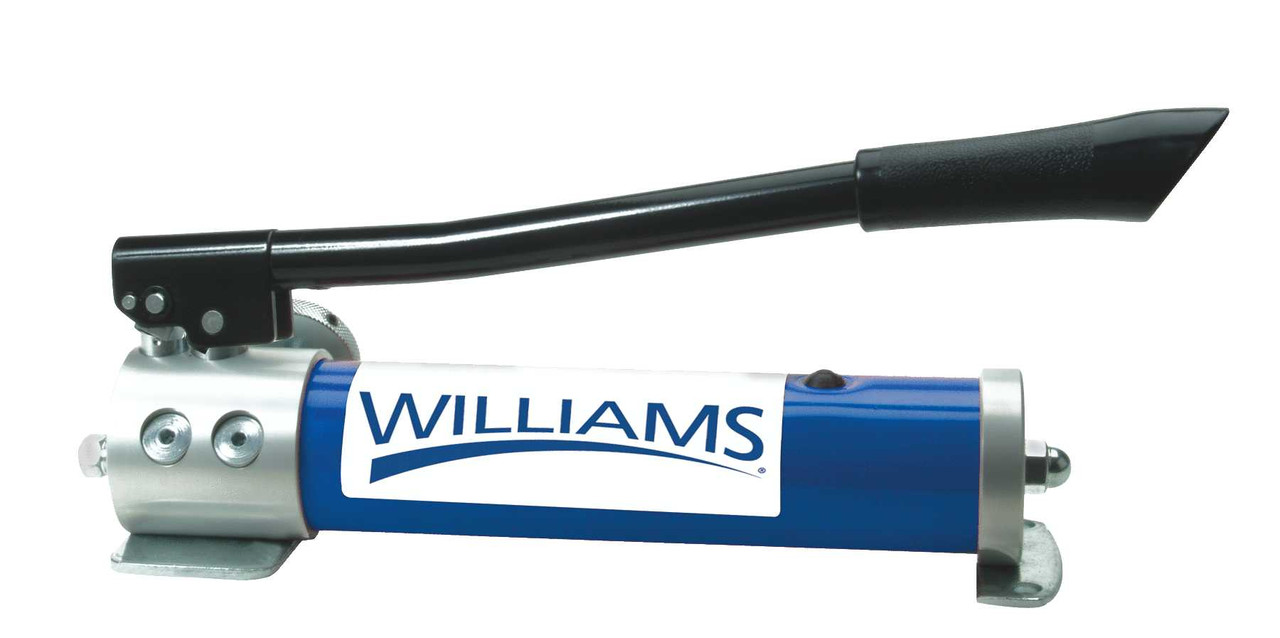

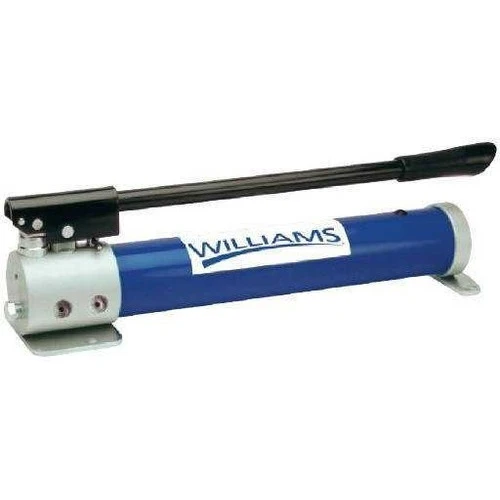

61 cu in Williams 2 Speed Heavy Duty Hand Pump - 5HS2S100

The 5HS2S100 61 cu in Williams 2 Speed Heavy Duty Hand Pump - 5HS2S100 comes with the Williams Industrial Brands Limited lifetime warranty.

2 Speed Hand Pump

Features

• 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
• Pressure relief valve for overload protection
• Load release valve for single acting cylinder usage
• Large oil capacities to power a wide range of cylinders and tools
• 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
• All hand pumps function in horizontal positions and will also function in some vertical positions
• Country of Origin: China
• Maximum working pressure: 10,000 psi / 700 bar
• Used with Cylinder : Single Acting
• Pump Type : Two-speed
• Usable Oil Capacity : 61.0
• Pressure Rating (psi) 1st Stage : 200
• Pressure Rating (psi) 2nd Stage : 10,000
• Oil Displacement per Stroke 1st Stage : 0.81
• Oil Displacement per Stroke 2nd Stage : 0.14
• Max. Operating Force (lbs) : 132
• Piston Stroke (in) : 0.82
• Oil Outlet Port : 3/8"-18NPTF
