- SKU:SH12DX17
- Condition:New
- Scale:Metric
- Type:Open End
Product Description

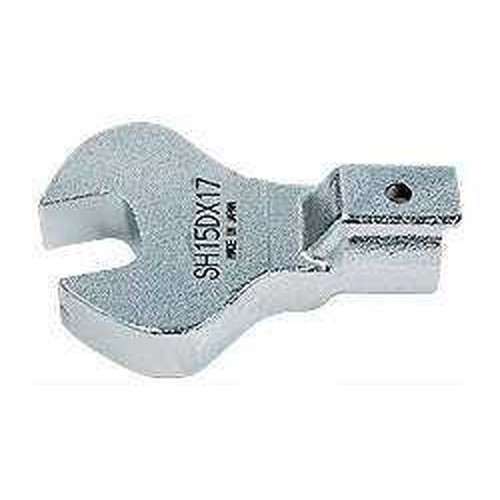

The SH Open Spanner Head - SH12DX17

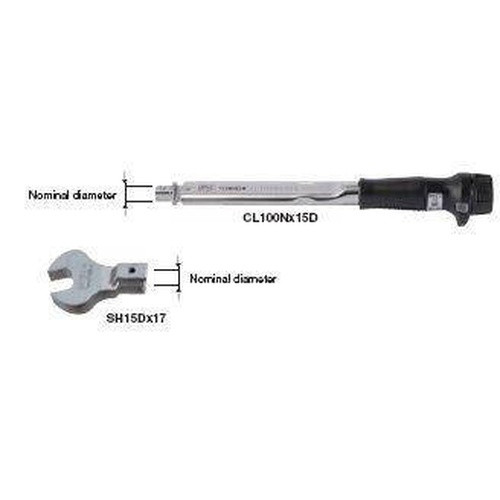

Tohnichi's interchangeable head wrenches have specific diameter round ends that fit into corresponding head base openings. Head and wrench model names include the diameter sizes so that heads can be matched to wrenches that accept those heads. For example: SH15Dx17 (15mm nominal diameter base opening ) will fit on CL100NX15D (15mm nominal diameter end) With the large selection of head styles available, wrenches such as CL (for tightening) and CEM3 (for measuring) can use the same head that has the same root diameter--making interchangeable head wrenches an economical and flexible tool choice.
Features:
| Model | Allowable Torque | Outside Width | Thick- ness | Length | Applicable S.I. Models |
| (Head Size X Width) | [N.m] | [mm] | [mm] | [mm] | |
| SH12D X 17 | 70 | 40 | 10 | 53 | CL50N/CSP/PCL YCL45N, 70N CDB50N-S, CF50N CEM45N2 CTA50/CTA-P/CTB |
Note:
- The SH type spanner heads suit for the place where sockets can not be used, for flare nuts in piping and for work in narrow places.
