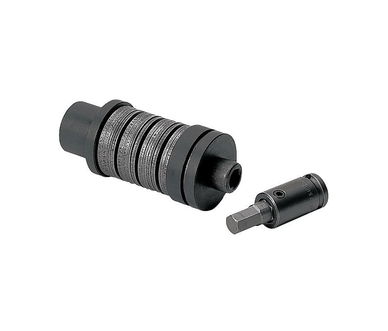

The CDI 900-0-1KIT is a 1/4'' Dr Joint Rate Simulator - 50 In Lbs Capacity is designed to work with the complete line of Torque Transducers and Calibration Equipment from CDI.The Joint Rate Simulator can be used with electronic and pneumatic tools on CDI ETT (Electronic Torque Tester) and with CDI transducers.

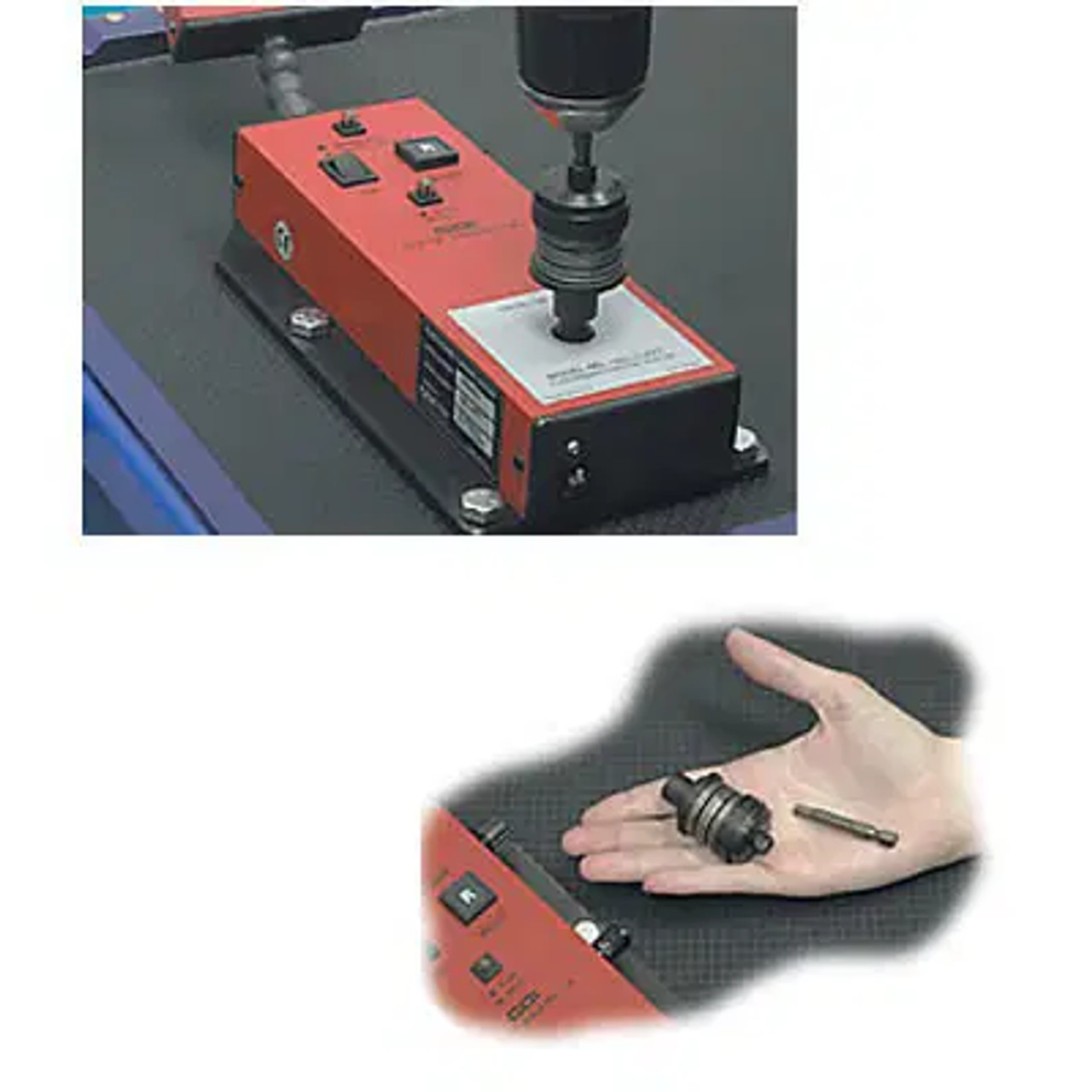

The joint rate adapter is placed on top of square Drive of Electronic Torque Tester (ETT) or a CDI transducer and secured with a set screw. An adapter bit is inserted into the power tool and is mated to top of the joint rate adapter. By stacking belleville washers in set patterns, the joint rate adapter can simulate soft, medium or hard joints.
- Tester Drive 1/4"
- Capacity: 50 In Lbs
- Adapter Bit 1/4" Male Hex. x 3/16" Male Hex.
- Load Screw 1/4 - 28 x 1
- Supplied with certificate of calibration traceable to N.I.S.T. (National Institute of Standards and Technology).
