1/4" Dr 30-250 In Lbs / 4-27 Nm Digitool Adjustable Torque Wrench - C-2501-1

1/4" Dr 30-250 In Lbs / 3.4-28.2 Nm Digitool Adj Torque Wrench - C-2501-1

$204.25 $122.55
(You save $81.70)
SKU:
C-2501-1
Condition:
New

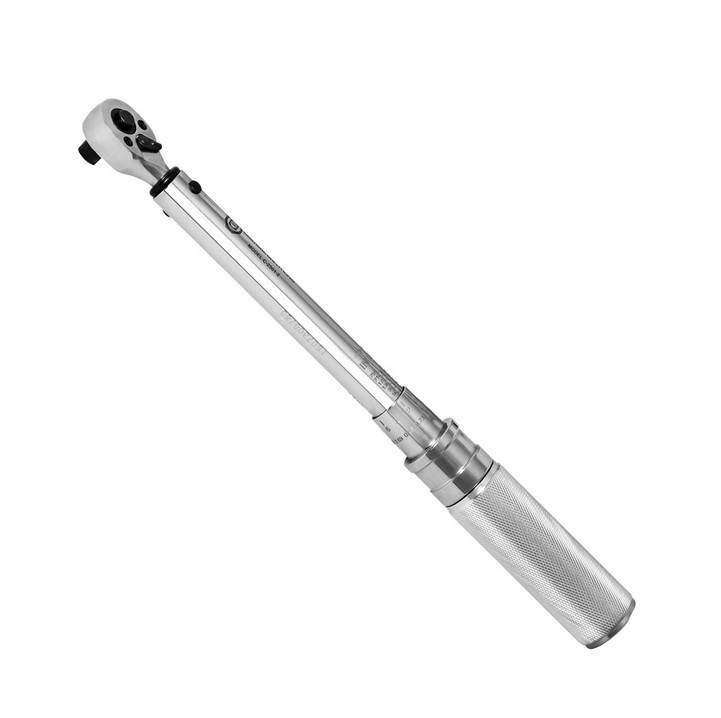

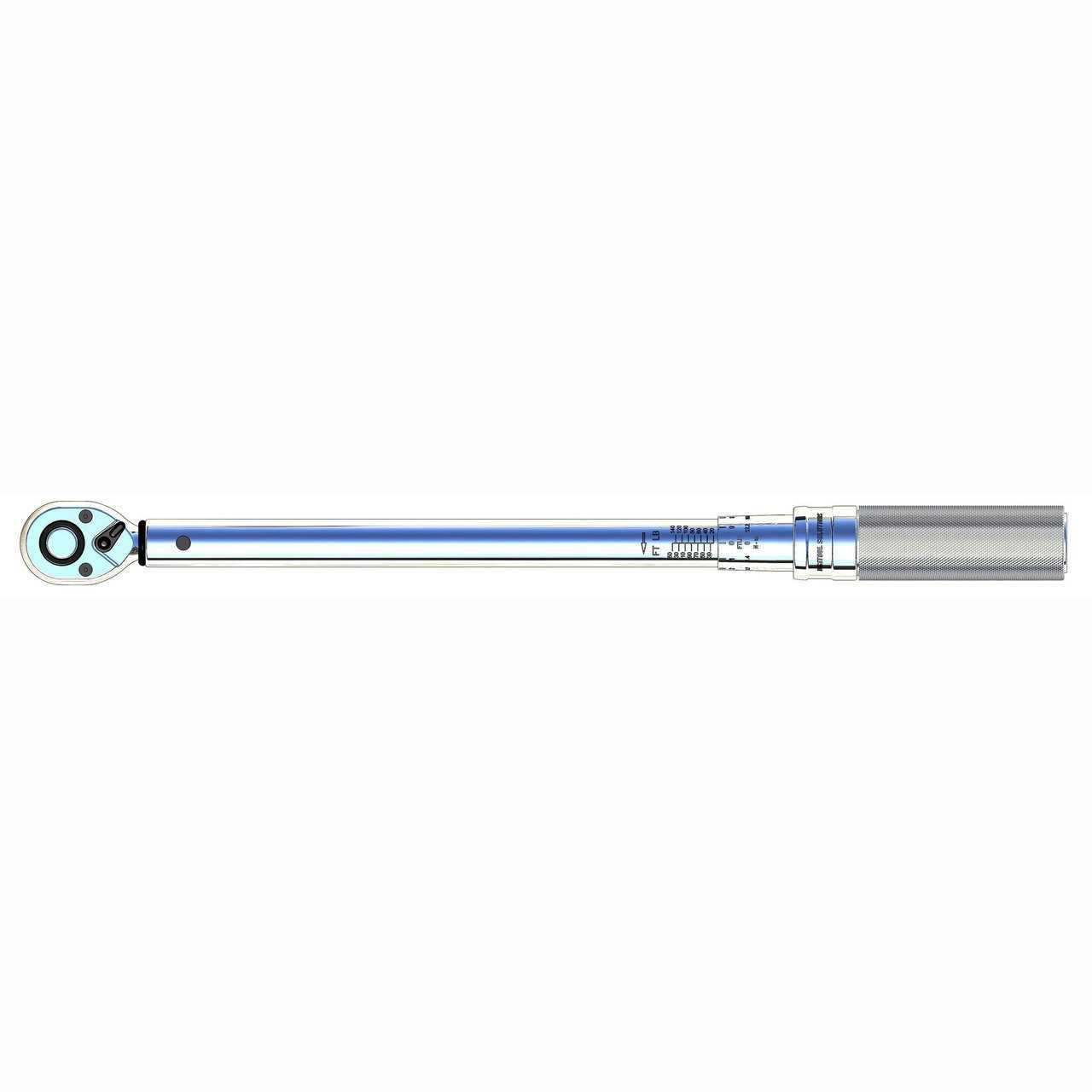

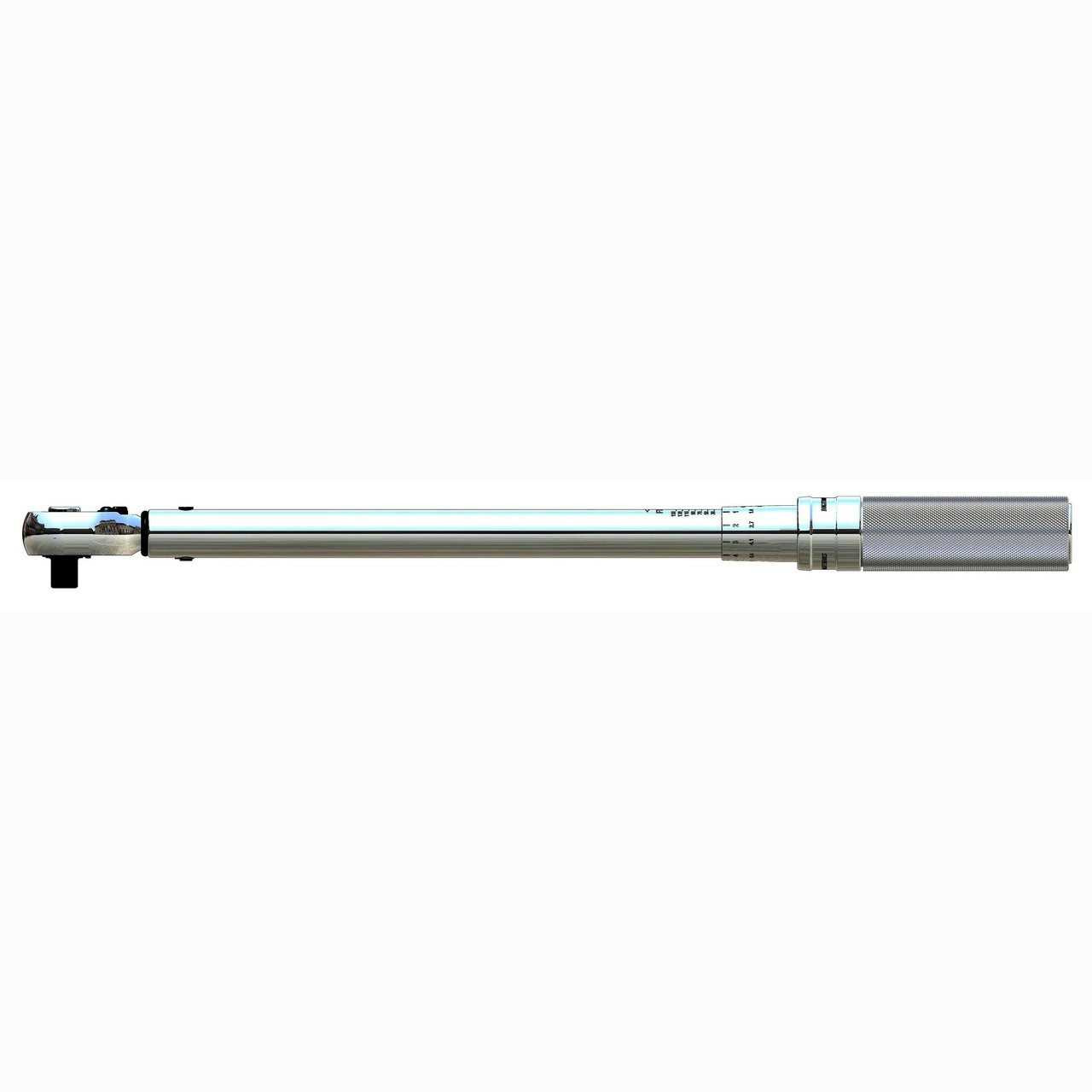

The Digitool C-2501-1
Micrometer Adjustable Torque Wrench has a 1/4" Drive and an English range of 30-250 In Lbs and a metric range of 3.4 - 28.2 NmThese adjustable “C” series click-type wrenches are clearly the preferred industrial torquing tool. They are easy to use and provide precision measurement that exceeds the accuracy and range defined by the ASME Standards.

Features:

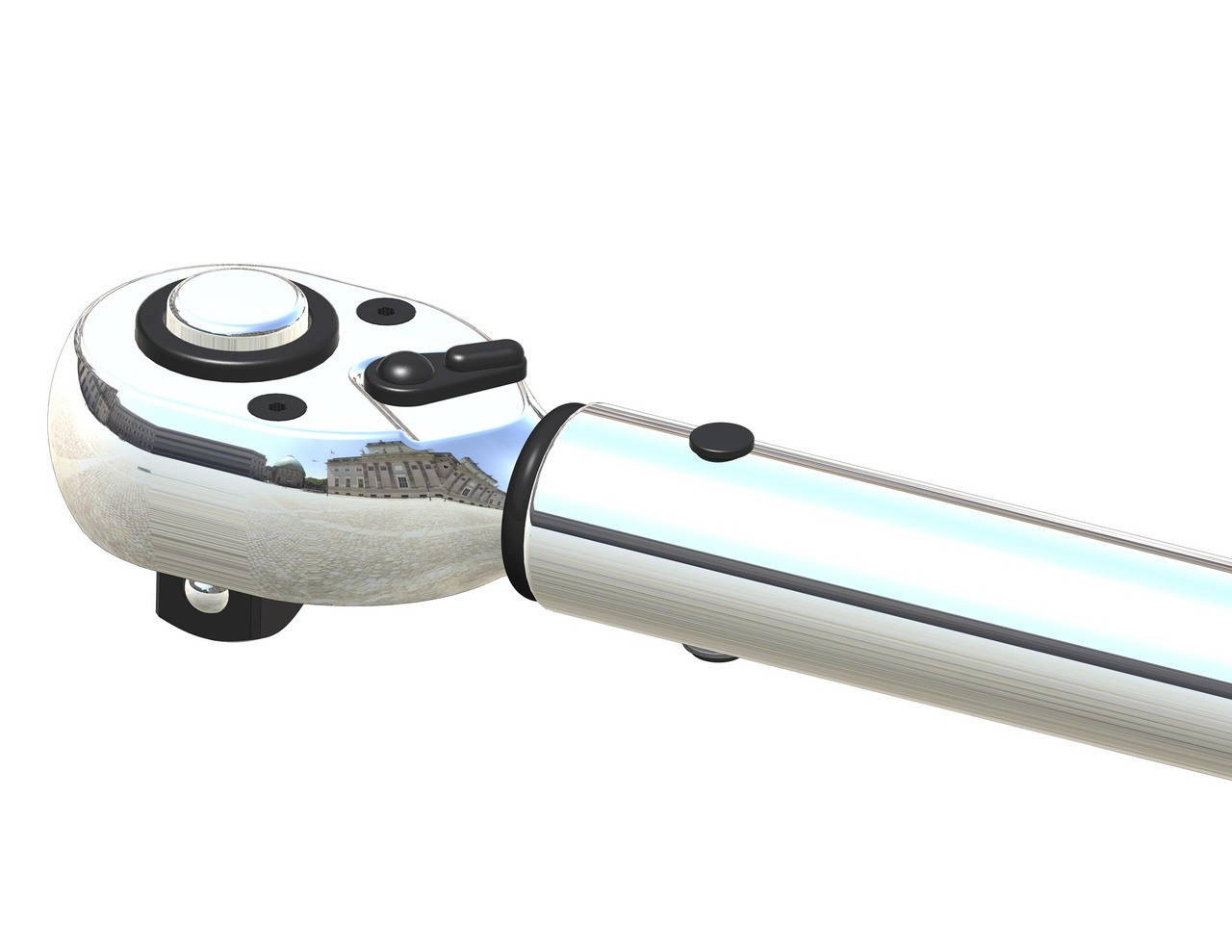

  • 36-tooth quick-release ratchet head.
  • Dual scale, calibrated dual direction

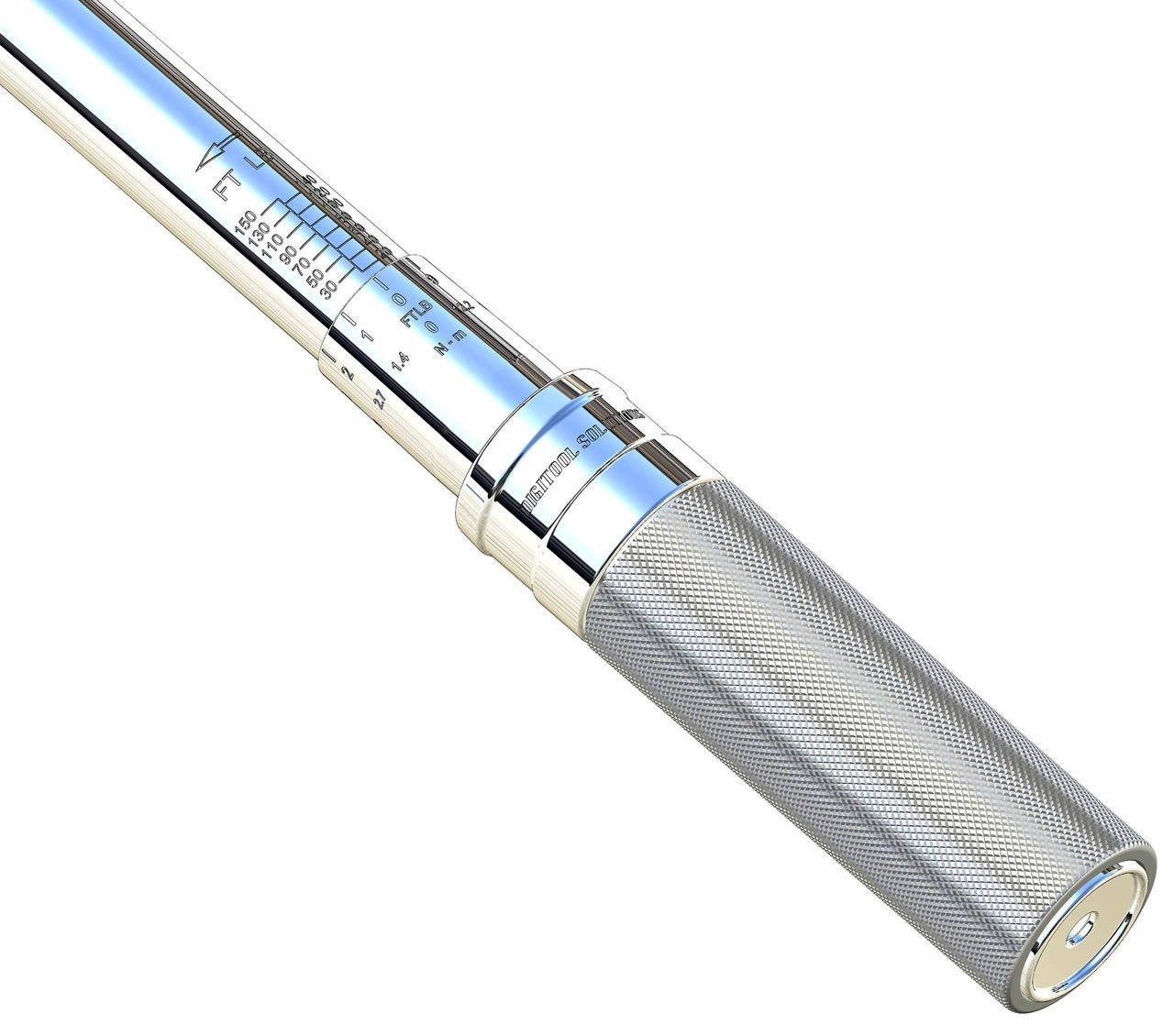

  • Permanent roll-marked micrometer adjustment Scale
  • Accuracy: ± 3% clockwise ± 5% CCW of indicated value, CW, from 15% to 100% of full scale
  • Meets or exceeds ASME B107.14-2004, ISO 6789 standards
  • Individually serialized with matching certificate of calibration traceable to N.I.S.T.


  • Drive: 1/4"
  • English Range: 30-250 in.lb.
  • Nm Range: 4.0-27.7
  • A In.: 11
  • B In.: 1.06
  • C In.: 0.93
  • D In.: 1.06
  • Wt. Lbs: 1.2


Digitool Solutions Products are covered by a one (1) year Limited Liability Warranty. Products under warranty should be returned for repair / replacement to: Digitool Solutions LLC 13905 Ramona Ave. Unit # A Chino, CA. 91710 sales@digitoolsolutions.com Tel: 909-591-9581 Fax: 909-233-6491
Drive Size:
1/4"
English Range:
30-250 In Lbs
Metric Range:
4-27.7 Nm
Length:
11"
Weight Lbs:
1.25
Accuracy:
± 3%
Scale:
In Lbs
Max In Lbs:
151-500 In Lbs
Scale:
Nm
Max Nm:
0-56.5 Nm
