Norbar EvoTorque (2) 3/4" Dr 73.75-738 Ft Lbs / 100-1000 Nm Electronic Torque Multiplier - 180230.B06
Norbar EvoTorque (2) 3/4" Dr 73.75-738 Ft Lbs / 100-1000 Nm Electronic Torque Multiplier - 180230.B06
Norbar EvoTorque (2) 3/4" Dr 73.75-738 Ft Lbs / 100-1000 Nm Electronic Torque Multiplier - 180230.B06
Norbar EvoTorque (2) 3/4" Dr 73.75-738 Ft Lbs / 100-1000 Nm Electronic Torque Multiplier - 180230.B06

Norbar EvoTorque (2) 3/4" Dr 73.75-738 Ft Lbs / 100-1000 Nm Electronic Torque Multiplier - 180230.B06

Now:$15,968.24
MSRP:$16,377.68
(You save $409.44 )
  • SKU:180230.B06
  • UPC:5060207569316
  • Condition:New
  • Drive Size:3/4 Inch
  • Max Ft Lbs:738
  • Max Nm:1000
  • Weight Lbs:23
  • Accuracy:3%
Product Description


The Norbar EvoTorque 2 Electronic Torque Multiplier 180230.B06 has a 3/4'' Drive and provides a range of 73.75-738 Ft Lbs or 100-1000 Nm.  The EvoTorque® 2 is an electronic torque tool designed for accurately applying torque to threaded fasteners. Tools are factory calibrated to ±3% of reading. The unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and, when necessary, employs dynamic braking to avoid torque over-shoot due to motor inertia. Consequently, EvoTorque® can apply torque accurately over a wide range of joint rates from hard (high torque rate) through to soft (low torque rate). All EvoTorque® tools are highly tolerant of supply voltage and frequency variation. When the tool runs, it will run accurately. If the supply voltage is outside of tolerance then, as a safety feature, the tool will be prevented from starting.



The Norbar EvoTorque 2 electronic torque multiplier has the ability to memorize multiple targets, work IDs, user IDs and readings. The tool has three modes of operation: Torque, Torque and Angle and Torque Audit. The unique Audit Mode is a sophisticated feature for testing pre-tightened bolts with minimal impact on the original fastening torque and can provide quality control data for monitoring joint performance over time.



Features:

  • USB and Bluetooth® 4.0 data transfer (also called Bluetooth® Smart)
  • Torque and Torque & Angle modes
  • New Audit Torque Mode enables users to check pre-tightened joints
  • Clear indication of successful joint application

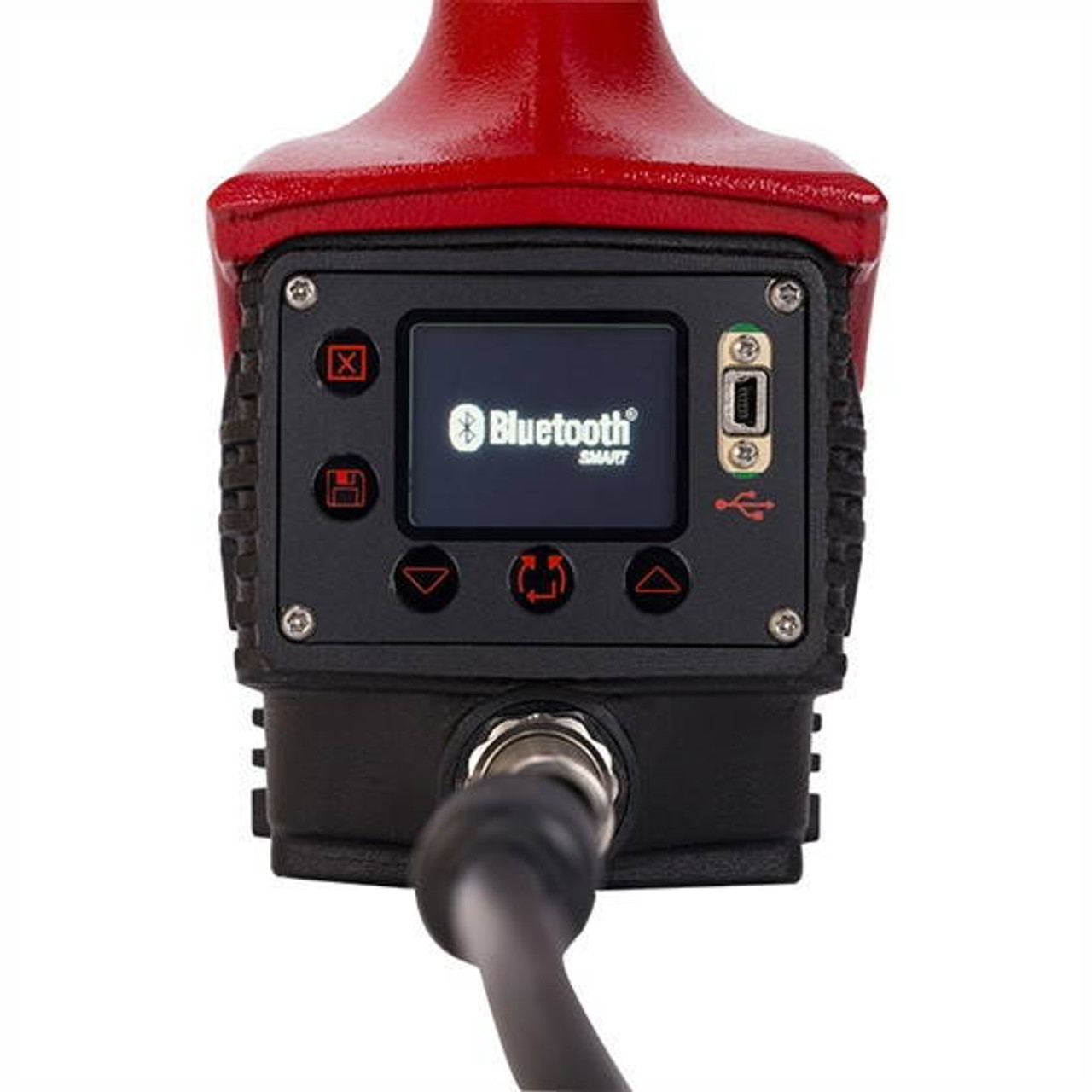

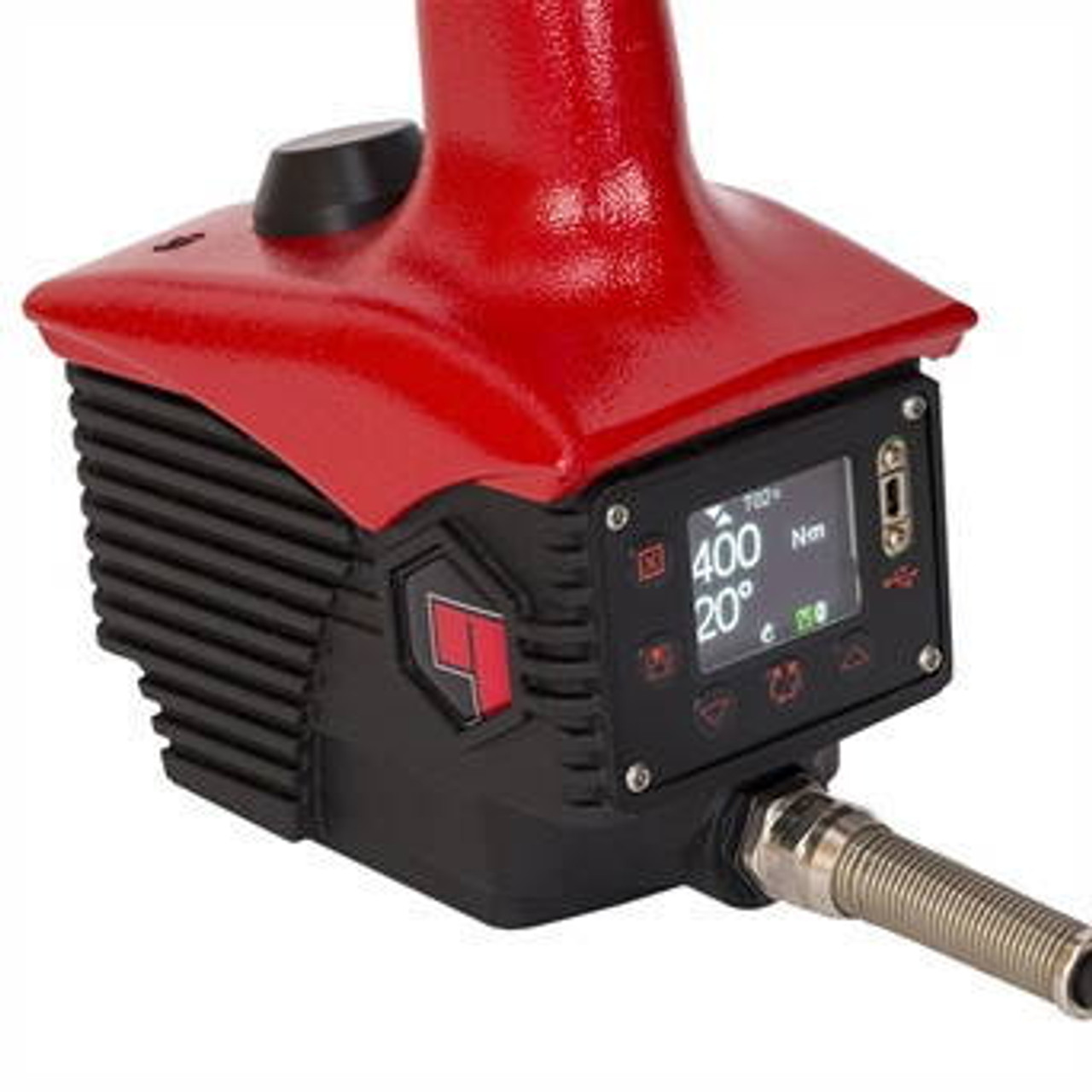

  • OLED, colour display, clearly visible even in poor lighting
  • 3000 reading memory, time and date stamped
  • Results uploaded in real time
  • Complimentary PC software 'EvoLog' for data management and tool configuration
  • 12 user IDs can be downloaded to the tool and results can be stored against individual users
  • Capacity for setting 20 stand-alone targets plus up to 5 work groups on the tool
  • Multiple units of torque measurement including N.m, lbf.ft, ft.lb and kgf.m
  • Easily removable secondary handle for balanced handling of the tool
  • New steel reaction as standard and aluminium reactions as optional accessories
  • Rated to IP44 for dust and water ingress
  • Each tool is supplied with a traceable calibration certificate
  • 3/4" Square Drive
  • 21 rpm
  • Tool Weight of 10.4kg
  • Calibrated to 20% - 100% of tool's maximum capacity
  • Operational targets can be set from 10% of tool capacity
