Norbar T-Box 2 Torque and Angle Monitor - 43542

Norbar T-Box 2 Torque and Angle Monitor - 43542

$6,309.77 $6,677.00
(You save $367.23)
Model #
43542
Condition:
New
Type:
Monitor

Description


The Norbar T-Box 2 43542 provides a complete torque audit system.

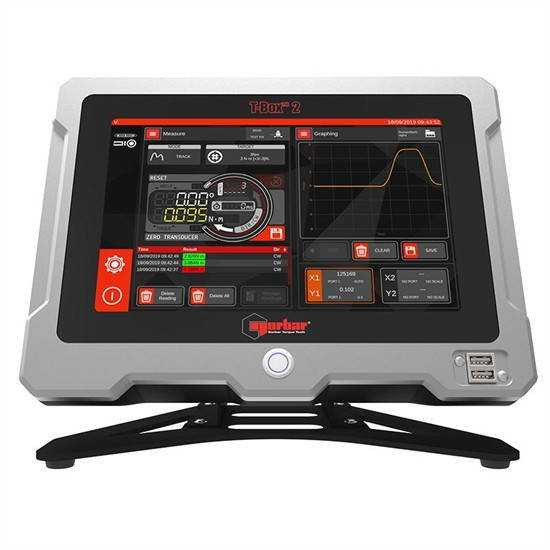

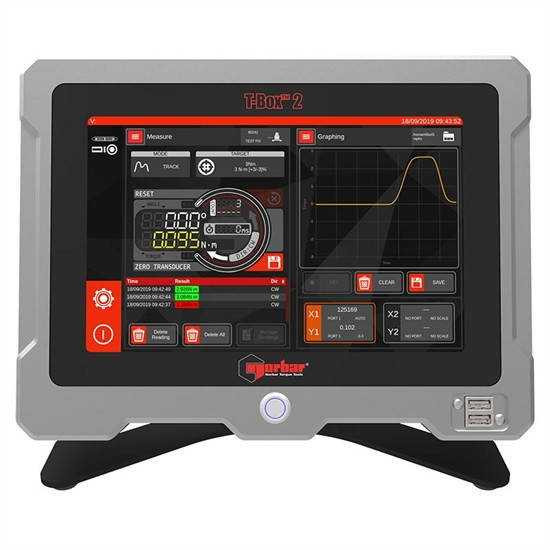

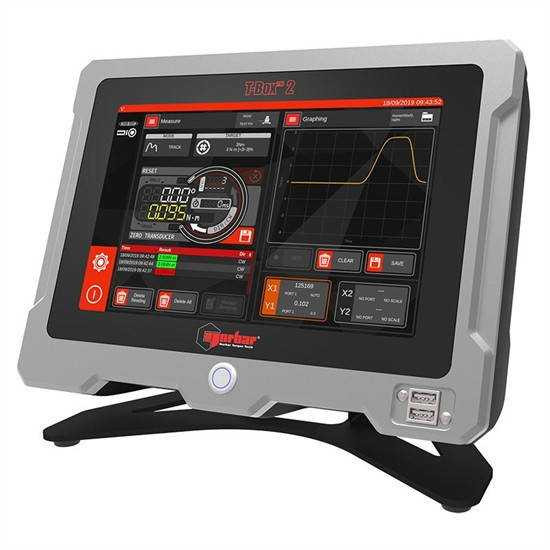

The T-Box 2 is a hand held and bench mounted torque measuring instrument with an accuracy of ±0.05% and user friendly color touch screen interface. Both hand and powered tools can be measured, calibrated and results viewed in graph mode. This comprehensive torque monitoring system functions in 12 languages, has all common torque units, pre-loaded tool calibration templates and a large memory for storage of results. T-Box 2 features a USB interface to a PC where the Torque Data Management System (TDMS) software is installed for archiving of test, calibration and graphical results
.

 FEATURES:

  • 10.1" multi-touch screen display with on-screen graphic icons for simple and easy tool navigation and selection
  • Gorilla Glass with native damage resistance helping to prevent deep chips and scratches appearing on the screens surface
  • User configurable to allow a selection of torque, torque and angle, rate targets and the ability to set thresholds
  • Two task windows allows simultaneous working! Measure against a target while graphing the cycle, take readings from two transducers simultaneously, capture two different graphs at the same time or manage and review readings as they are captured
  • Accuracy of ±0.05% of reading (±0.1% when below 5% of transducer capacity)
  • Includes 6 modes for torque tool measurement: Track, Click, Dial & Electronic, Stall, Screwdriver and Hydraulic
  • Can export readings and graphs to CSV and JSON format allowing for 3rd party software integration
  • File browser/manager for internal storage and USB management giving the user greater ease and flexibility in managing multiple files and folders
  • 2 transducer ports gives you the ability to perform 2 tasks simultaneously e.g. graphing & measuring
  • Fast CPU frequency up to 2.3 GHz
  • Large capacity memory of 120GB SSD storage
  • The T-Box™ 2 can capture graphs up to 325 Hz, offering the ability to analyse fast moving transients
  • 4GB RAM allows for smooth and seamless operation
  • Ability to predefine multiple targets
  • Weight: 1.9 Kg (4.2 lb) T-Box 2 only
  • Height: 254 mm
  • Width: 300 mm
  • Depth: 200 mm

Made in England
