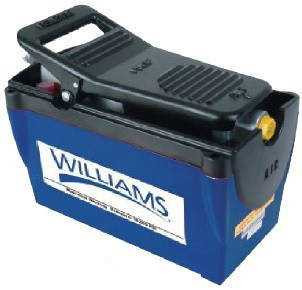

Williams 10000 Psi Air Pump 122 Cu - 5AS200

The 5AS200 Williams 10,000 Psi Air Pump 122 Cu - 5AS200 comes with the Williams Industrial Brands Limited lifetime warranty.

Air Pump 122 Cu

Features

• High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
• Pressure relief valve for overload protection
• Suggested air pressure range: 90-175 psi / 6-12 bar
• Designed to be used with single acting cylinders
• Dust cover protection for the release control valve
• Dual stage release control valve
• 5AS200 offers a turbo function that features high fl ow at high pressure condition
• 5AD150M offers a 4-way control valve for operation of double acting cylinders
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Used with Cylinder : Single Acting
• Usable Oil Capacity (in3) : 122.1
• Pressure Rating (psi) : 10,000
• Oil Output Flow Rate (in3/min) No Load : 65
• Oil Output Flow Rate (in3/min) Load : 12
• Input Air Pressure Range (psi) : 100-200
• Dimensions (in) : 11.57 x 6.02 x 7.91 x 6.18 x 5.98
