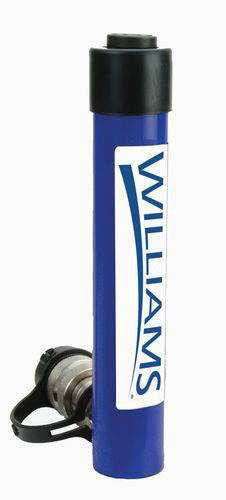

0.63" Stroke Williams 5T Single Acting Cylinder - 6C05T00

The 6C05T00 0.63" Stroke Williams 5T Single Acting Cylinder - 6C05T00 comes with the Williams Industrial Brands Limited lifetime warranty.

Features

• 39 models
• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fi xture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High fl ow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 5
• Stroke (in) : 0.63
• Cylinder Effective Area (in2) : 1.10
• Pressure at Capacity (psi) : 9,090
• Oil Capacity (in3) : 0.69
• Collapsed Height A (in) : 1.61
• Extended Height B (in) : 2.24
• Cylinder Bore Dia. C (in) : 1.18
• Outside Dia. D (in) : 2.36 x 1.58
• Plunger Dia. E (in) : 0.98
• Saddle Dia. F (in) : N/A
• Base to Inlet Port (in) : 0.75
• Collar Thread (in) : N/A
• Collar Thread Length (in) : N/A
• Plunger Internal Thread (in) : N/A
• Plunger Thread Length (in) : N/A
• Base Mounting Hole Bolt Circle (in) : 1.10
• Base Mounting Hole Thread (in) : 0.2
• Base Mounting Hole Thread Depth (in) : N/A
